E A S Y - F I T
Base Unit

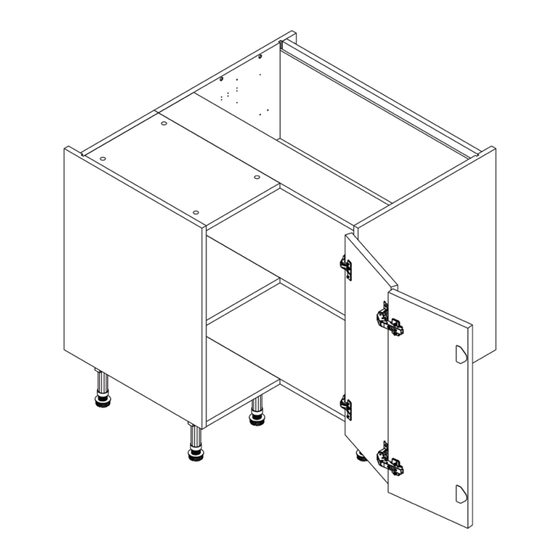

972 L-Shape Folding Door Corner Unit, Fitting Guide
Units Parts
4x 30mm
82x 15mm
Screws
Screw
5x Door Buffers
Tools Required
Jigsaw
Drill
18x Cover
9x Legs
Caps
2x L-Brackets
10x Fixing
Plates
Mallet
9x Leg
4x Plinth
2x Space
Clips
Brackets
2x Frontal
170 Hinge
(Packed
Separately)
Screwdriver
Clamp
1x XLSpace
6x Shelf
Plug
Plug
Peg
Folding Door
Hinge
Hinge
Plate
Spirit Level
2x Shelf
Hinge cover
caps
Tape
Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens EASY-FIT Base Unit 972 L-Shape Folding Door Corner Unit
Summary of Contents for Wren Kitchens EASY-FIT Base Unit 972 L-Shape Folding Door Corner Unit
- Page 1 E A S Y - F I T Base Unit 972 L-Shape Folding Door Corner Unit, Fitting Guide Units Parts 4x 30mm 82x 15mm 18x Cover 9x Legs 9x Leg 4x Plinth 2x Space 1x XLSpace 6x Shelf 2x Shelf Screws Clips Screw...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. Removing the unit, frontals, fixtures and fittings The small unit of the L-shape corner unit will...
- Page 3 Inserting the leg bases Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Pay extra attention to the leg bases highlighted.
- Page 4 Notching out the side panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
- Page 5 Drilling the pilot hole Drill a pilot hole through the back panel making sure to lightly mark the wall to indicate where the wall fixing should be placed. The hole should be located as per the diagram, in the centre and close to the top of the unit.
- Page 6 Attaching the fixing plates to the shelf Position the shelf pegs into the pre-drilled holes inside the unit. Add the 2x fixing plates to the bottom of the large shelf, fix each of the fixing plates with 2x15mm screws. Ensuring the fixing plates are evenly spaced.
- Page 7 Attaching hinge mounting plate Attach the hinge mounting plate onto the side panel, that is appropriate to the unit configuration, using screws which are already positioned within the hinge plates. Fixing the hinges to the frontals Position the frontal with 4x cup holes on a protected work surface with the holes facing Insert the folding door hinges and 170˚...
- Page 8 Attaching the frontal Secure the frontal with the 170˚ hinges to the L-corner unit, the frontal should be attached to the unit by clipping the hinges onto the hinge plates. Secure the second frontal by clipping the folding door hinges to the hinge plate on the frontal.
- Page 9 Adjusting the folding door hinge To adjust the folding door hinges, use a screwdriver as required at points 1, 2, and 3. Point 1 – Will adjust the frontals left and right. Point 2 – Will adjust the frontals in and out. Point 3 –...
