5 Operation
5.9 Monitor check
Check recorder
The function of a connected chart recorder can be tested.
Step
1
2
3
4
68
Action
Select main menu Check and press OK.
Select sub menu Check Recorder and press OK.
Start the test by selecting on and press OK.
The test will ramp the signal on each channel up to 1 V
and then decrease the signal in 10% steps back to 0 V.
The test is run continuously.

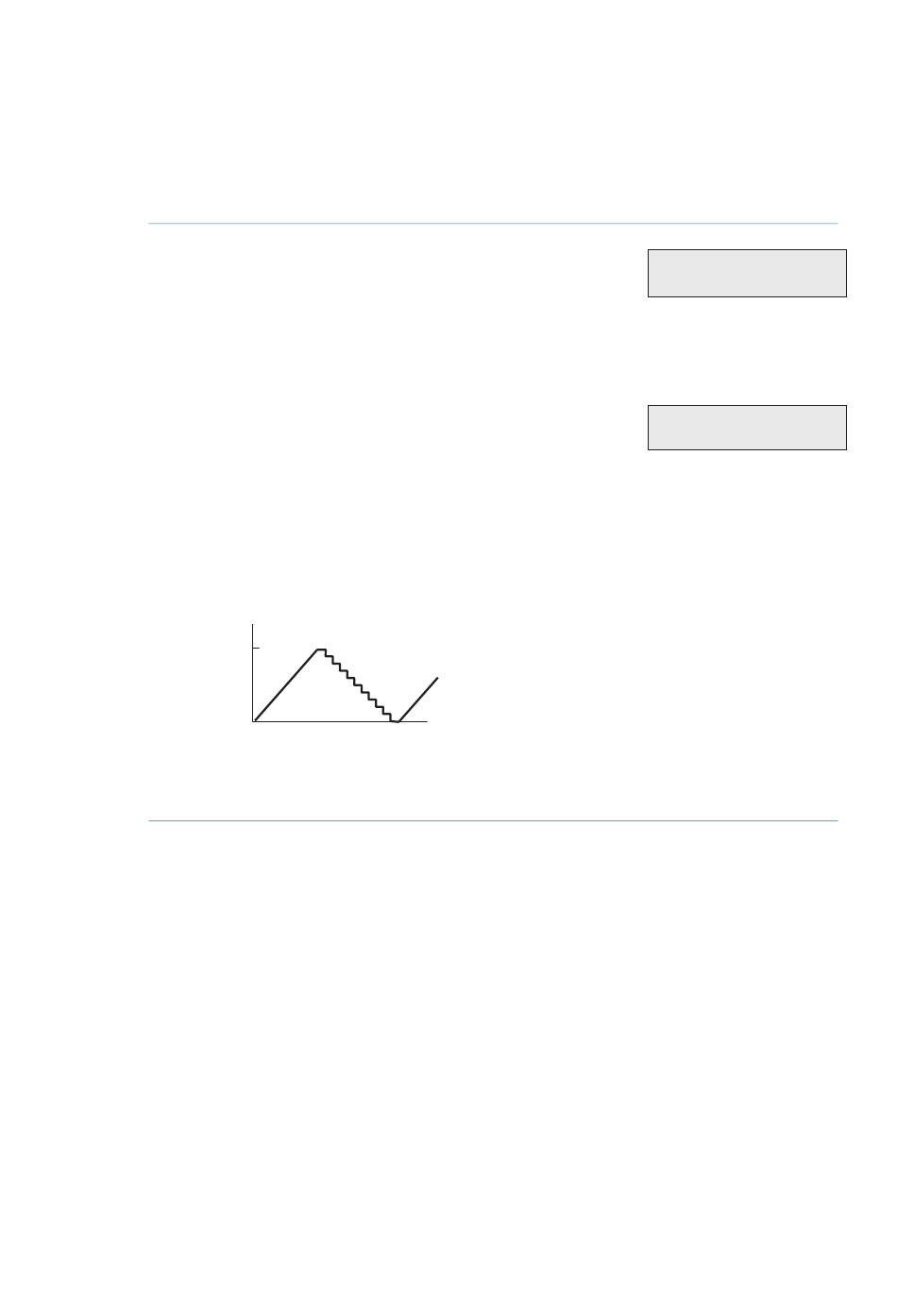

Compare the diagram of the chart recorder with the
figure.
1 V
0 V
Stop the test by pressing OK or ESC.
