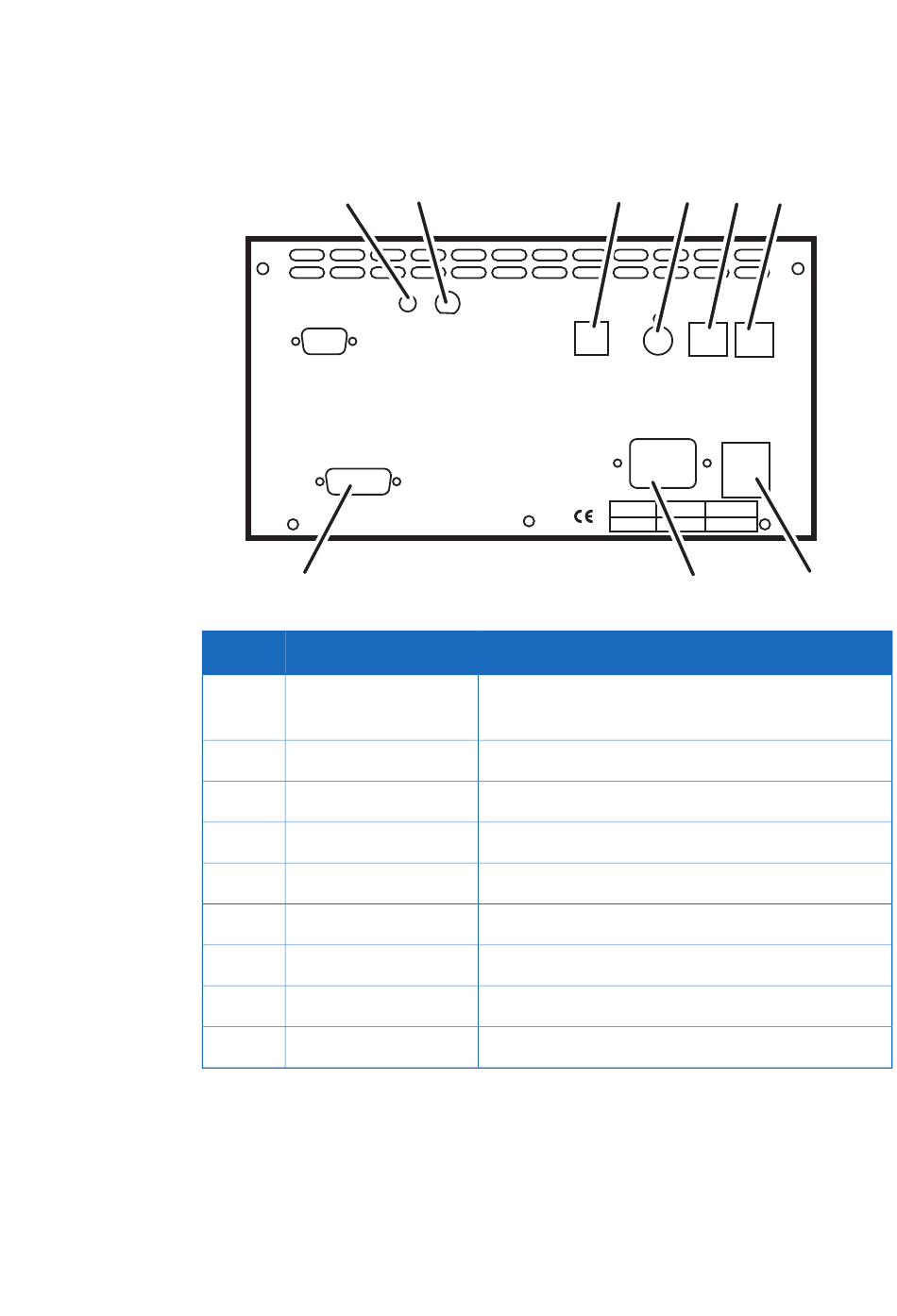

Rear side
Part
1
2
3
4
5
6
7
8
9
Monitor UPC-900 Operating Instructions 29-0567-16 AB
1 2
Conductivity
Flow Cell
pH-Ground pH-Probe
Lamp
9
Connector/Switch
Conductivity flow
cell
pH-Ground
pH-Probe
Optical unit
Analogue out 0 1 V
UniNet 1
Power switch
Mains
Lamp
3
Optical Analogue
Unit out 0-1 V
Mains
Voltage Frequency
100-200 V- 50-60 Hz
Function
Connection to conductivity flow cell, 9 pole D-sub
connector
Reference ground for pH measurement
Connection to pH electrode, standard BNC socket
UV signal from optical unit
Chart recorder outputs, 3 channels 0 to1.0 V
Computer network
Mains supply on/off switch
Supply voltage, grounded
UV lamp connection
