3 System description

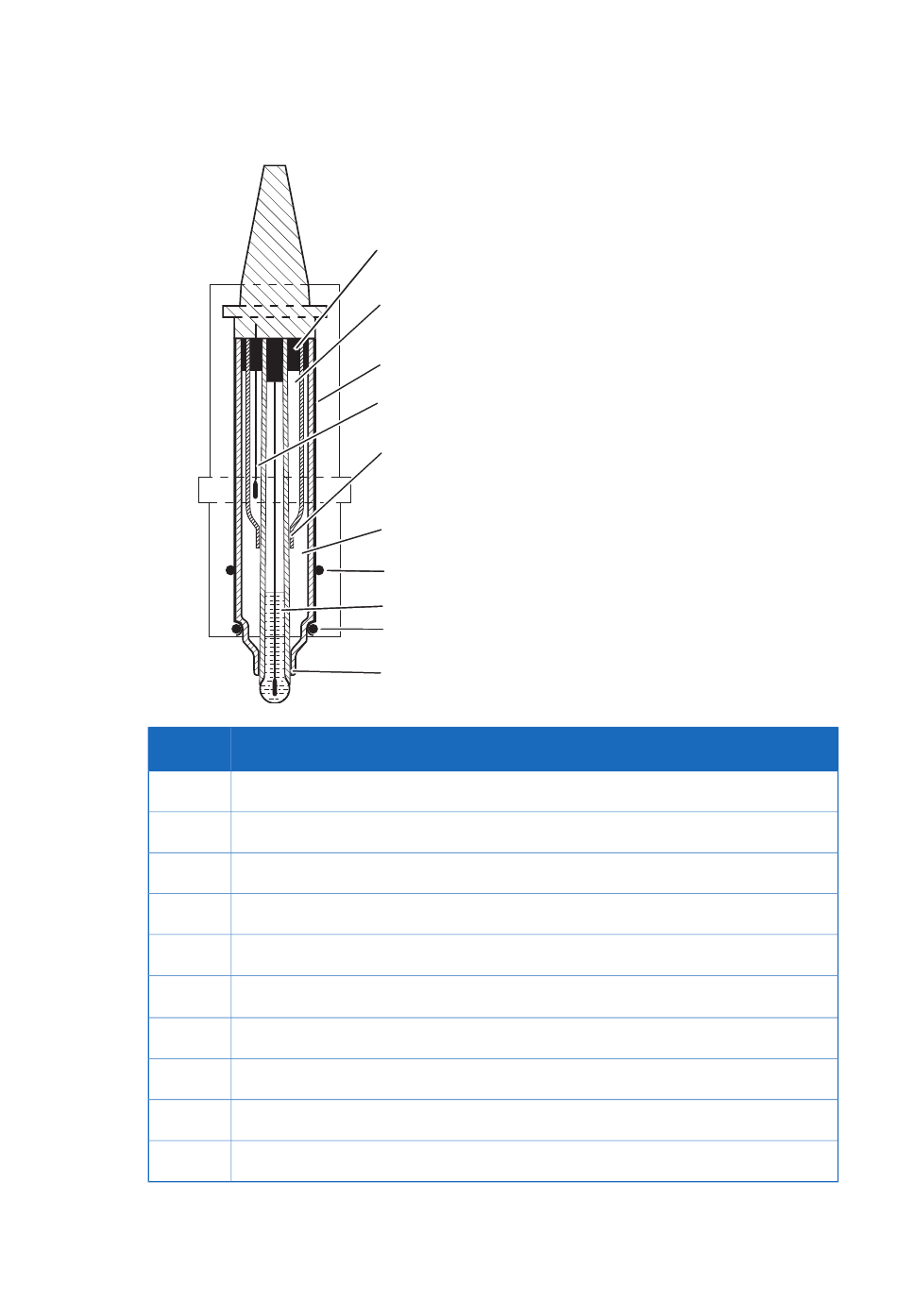

3.4 pH electrode
Illustration
Part
1
2
3
4
5
6
7
8
9
10
30
1
2
3
4
5
6
7
8
9
10
Function
Sealing
Internal electrolyte bridge containing 4M KCl saturated with AgCl
Silicone sealing
Ag/AgCl reference electrode
Internal annular coaxial ceramic reference junction
External electrolyte bridge containing 1M KNO
O-ring
Glass electrode containing diluted, buffered KCl
O-ring
External annular coaxial ceramic reference junction
3
