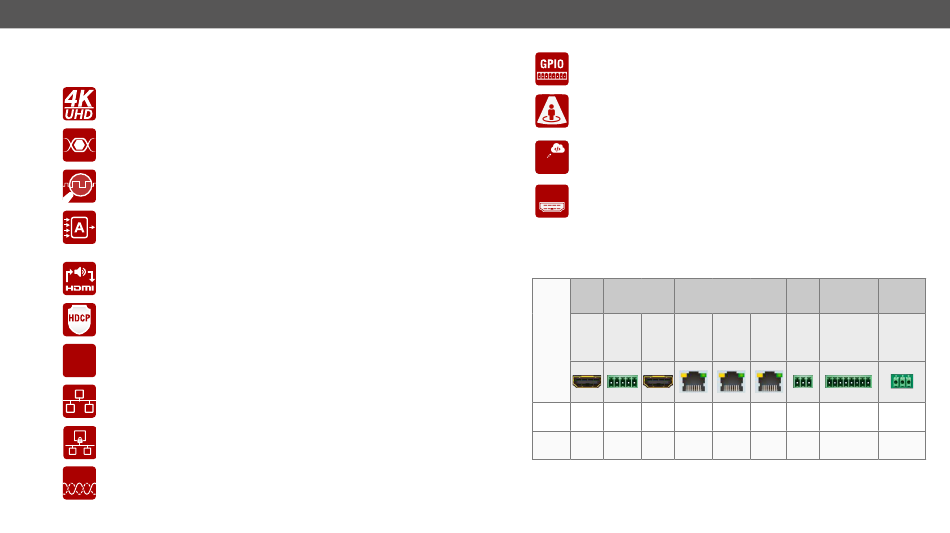

1.3. Features of the Device
Common Features
3D and 4K Support
High bandwidth allows extension of resolutions up to 4K and even 3D sources and displays are
supported.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating signal instability and distortion caused by
long cables or connector reflections.
Frame Detector and Signal Analysis
The exact video and audio signal format can be determined such as timing, frequencies, scan
mode, HDCP encryption, color range, color space and audio sample rate.
Autoselect Function for Video Inputs
The Autoselect feature can sense the port status on the video input and select them
automatically. Priority number can be set for each input port, and the feature allows to set
various modes for the automatic input selection (First detect, Last detect).
De-embedder Function
The analog audio can be de-embedded from HDMI inputs and it can be routed to the analog
audio output.
HDCP-compliant
The switcher fulfills the HDCP standard. HDCP capability on the digital video inputs can be
disabled when non-protected content is used.
Dark Mode*
All illuminating elements of the front/rear panel can be switched on and off. This feature is
useful in live-stage shows or other environments where flashing LEDs would be distracting.
Ethernet Control
Multiple simultaneous TCP/IP connections are available with a simple ASCII-based protocol for
controlling or configuring the product, or to perform a firmware update.
Basic IT-security*
LWR
These entry-level network security improvements help prevent unauthorized access to the
Lightware device; HTTPS/WSS support, basic network authentication.
Bi-directional RS-232*
RS-232
AV systems can also contain serial port controllers and controlled devices. Serial transmission
supports any unit that works with standard RS-232.
MMX2 series – User's Manual
í
CEC
* These functions are available from FW package v1.2.0.
** This function is available from FW package v1.4.0b4.
1.4. Model Comparison
MMX2-
4x3-H20
MMX2-
4x1-H20
Applied firmware package: v2.9.0b6 | LDC software: v2.7.6b4
GPIO Control Port
Six GPIO pins operating at TTL digital signal levels that can be controlled with LW3 commands.
5V is supplied over the 7th pin constantly, up to 500 mA.
Occupancy Sensor Connector
Occupancy sensor connection (with 24V power supply).
Lightware Rest API*
The switcher can be controlled through standard HTTP(S) requests to ensure the control
functions from REST clients or terminal program.
Consumer Electronics Control**
The device supports transmitting standard CEC commands in order to remote control the
connected sink device.
Input Outputs Ethernet Interface
Secure
Analog Control Utility
HDMI audio HDMI Ethernet Ethernet Ethernet RS-232
4x  3x  
4x  1x  -
9
Serial
GPIO OCS
Inter-
Interface Interface
face
Config-
General Occupancy
urable Purpose Sensor
In/out (GPIO)
(OCS)
 2x  
- 1x  
