Opera Prima Slim Installation And User Manual page 60

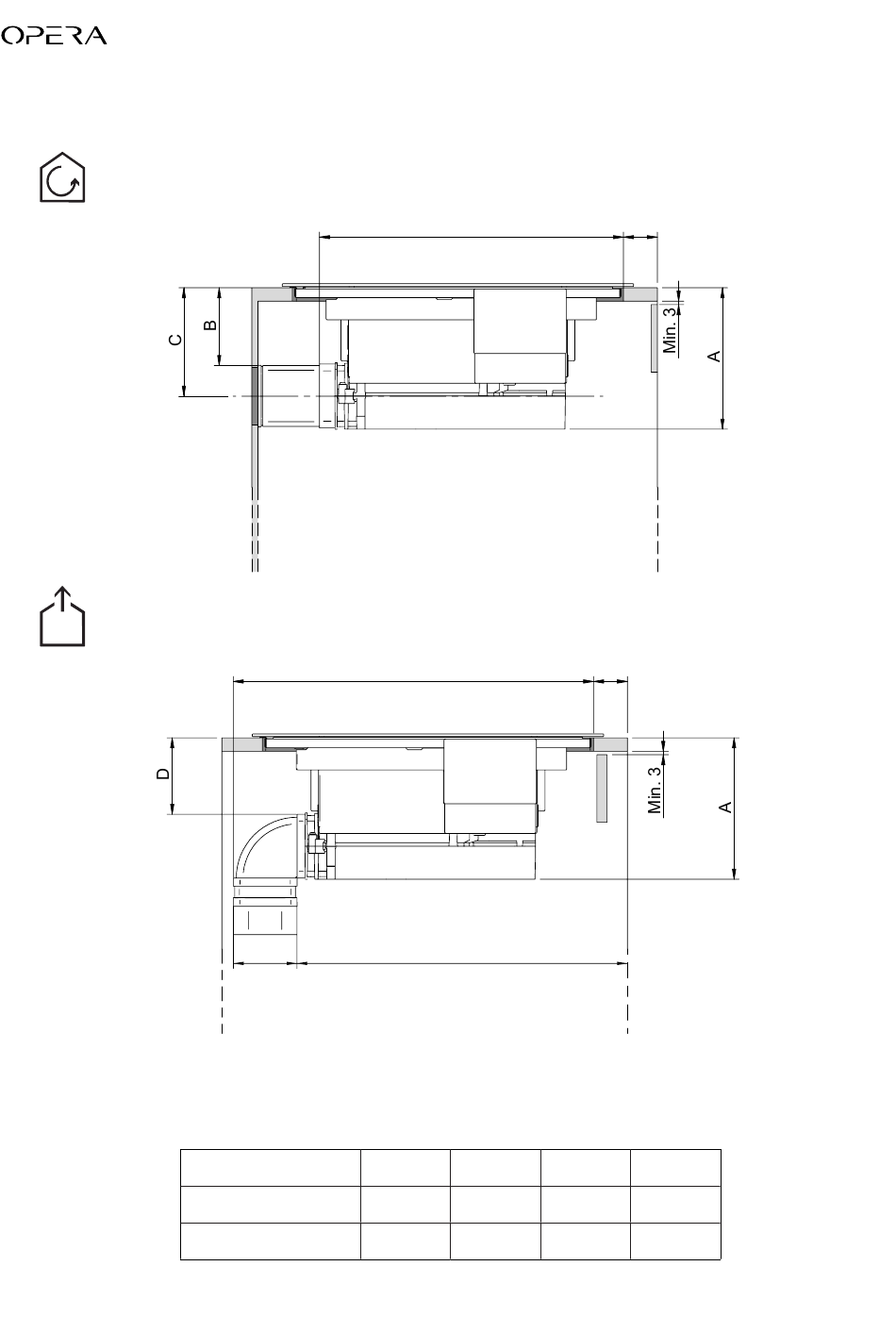

3.5 INSTALLED DIMENSIONS
RECIRCULATION MODE
ASPIRATION MODE
The dimensions A, B, C and D vary depending on the installation method, as shown in the
table below.
60 | ASPIRATION HOB
94
INSTALLATION
Flush mounting
Surface mounting
450
533
489
A [mm] B [mm]
216 122
209 115
50
50
C [mm] D [mm]
167 120
160 113
