SmartRunner Detector
Vision Configurator Software
5.6

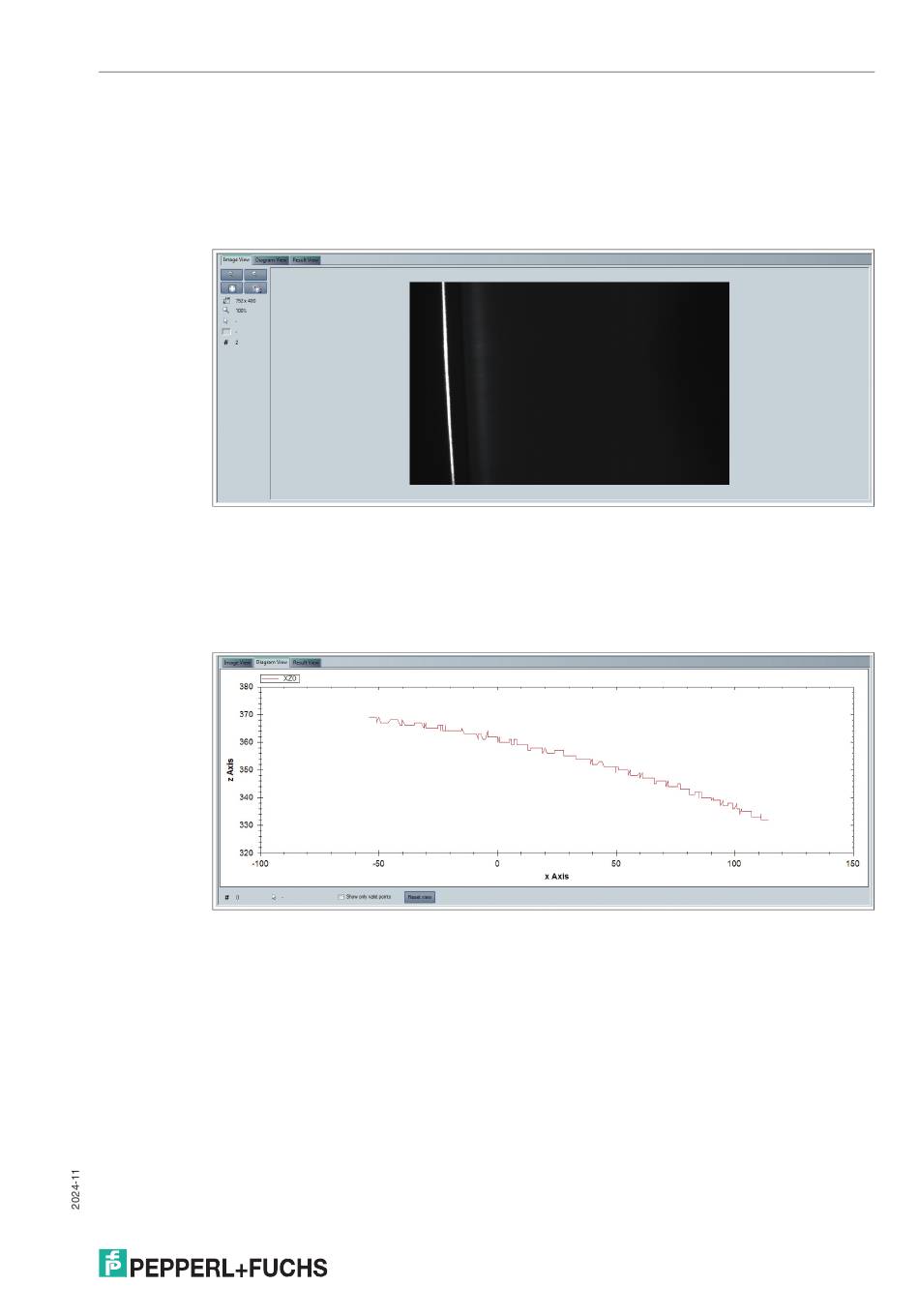

Image Display

Image View
Displays image data. Selected via the "Image View" button. "Get image" loads the last captured
image on the PC and displays it in the window. To capture a new image, "Trigger" must have
been clicked.
Figure 5.10

Diagram View

Displays the results data in graphical form. The results data is retrieved by clicking "Get lines".
The most recent results are then retrieved and displayed graphically. The "Get lines" function
does not trigger a new image capture and evaluation process. "Trigger" must have been clicked
in order to do this.
Figure 5.11
Result View
Displays the results of the image evaluation. "Start request" starts the transfer.
Image View
Diagram View
