SmartRunner Detector
Product Specifications
Position
1
2
3
4
5
Note
The function keys are only activated during a parameterizable time span after the sensor is
switched on, after which they are locked. The default value for this time span is 5 minutes.
The function keys have different functions depending on the selected operating state.

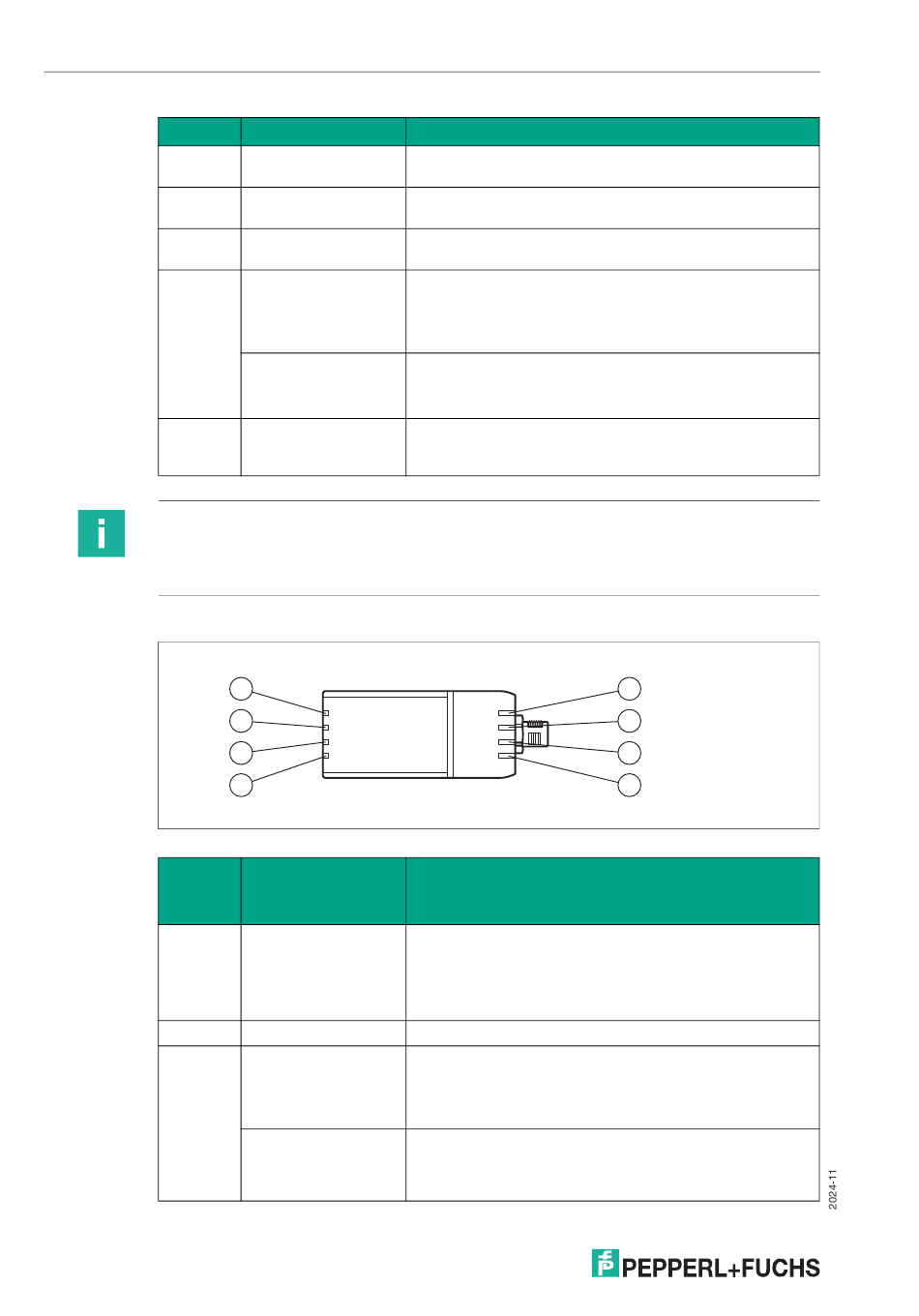

Description of the LEDs

Figure 2.7
Position
Designa-
tion
1
2
3
12
Designation
Emitter optic protec-
tive cover
Reception optic pro-
tective cover
LEDs
Function keys in Pre-
sentation mode
Function keys in Run-
time mode
Electrical Connection The sensor is connected electrically via a MAIN 8-pin M12
1
2
3
4
LEDs overview
Bezeichnung
Ready (green/red)
Teach in (yellow)
Result (green/red)
Applies in Code Card
mode
Function
Is used to protect against damage and contamination
Is used to protect against damage and contamination
The functional description for the LEDs can be found in
the table below.
• Function key 1: triggers an evaluation
• Function key 2: when pressed and held for 2 seconds, acti-
vates the teach-in process. When pressed and held for lon-
ger than 2 seconds, activates Code Card mode
• Function key 1: no function
• Function key 2: when pressed and held for longer than 2 sec-
onds, activates Code Card mode
connector plug on the bottom of the housing. See chapter
3.4.
Function
• Lights up red if there is a sensor fault
• Lights up green when the sensor is ready for operation
• Flashes green if the sensor is in Configuration mode
• Flashes green quickly when the sensor is in code card mode
• Lights up yellow during the teach in process
• Lights up green when the background line is not interrupted
and no object has been detected.
• Lights up red when an object is detected and the back-
ground line is interrupted.
• Lights up green when a correct code has been read
• Lights up red when an incorrect code has been read
• Off if no code has been read
5
6
7
8
