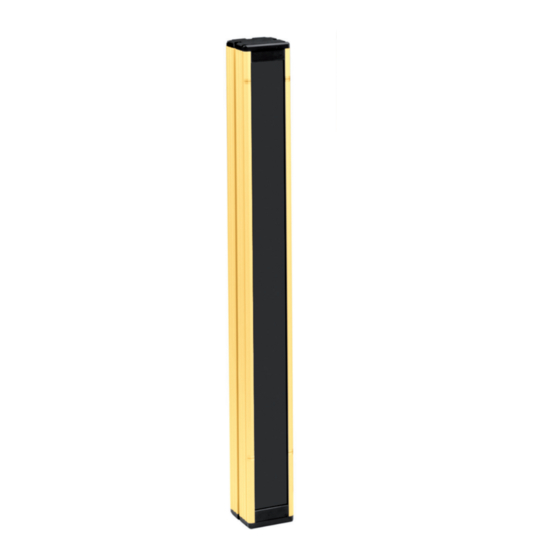

- Page 1 FACTORY AUTOMATION ORIGINAL INSTRUCTIONS Safety light grid SLP series...
- Page 2 SLP series safety light grid The latest version of the General Terms of Supply for Products and Services in the Electronics Industry issued by the German Electrical and Electronic Manufacturers’ Association (ZVEI) and the "Extended Retention of Title" clause apply to this document.
-
Page 3: Table Of Contents
SLP series safety light grid Introduction ................4 Congratulations ................4 Contact ..................... 4 Symbols Used .................. 4 Declaration of Conformity ............5 Safety ..................6 Safety-Relevant Symbols ..............6 Intended Use ..................6 Application ..................6 Mounting ..................7 Installation .................. -
Page 4: Introduction
Introduction Congratulations You have decided to purchase a device from Pepperl+Fuchs. Pepperl+Fuchs develops, produces, and markets electronic sensors and interface modules worldwide for the automation technology market. Please read the operating instructions carefully before installing this device and putting it into operati- on. -
Page 5: Declaration Of Conformity
All products were developed and manufactured under observance of the applicable European stan- dards and guidelines. Note! A Declaration of Conformity may be requested from the manufacturer. The product manufacturer, Pepperl+Fuchs GmbH, 68307 Mannheim, has a certified quality assurance system that conforms to ISO 9001. ISO9001... -
Page 6: Safety
Application Light grids from the SLP series can be used with 2-, 3-, and 4-beam access protections as specified in EN ISO 13855. The beam spacings are fixed and meet the specifications out- lined in the standard. -
Page 7: Mounting
SLP series safety light grid Safety Warning! The installation information included in the control unit operating instructions must be taken into consideration. Mounting There are grooves on the sides and back of the light grids for inserting M6 hexagon screws to mount the devices. -
Page 8: Functional Safety Data
SLP series safety light grid Safety Technical data Functional Safety Data 2.81 E-9 Performance Level PL e (EN ISO 13849-1) Category Cat. 4 (in accordance with ISO 13849-1) Life time 20 a Conformity Functional Safety ISO 13849-1 Product Standards EN 61496-1; IEC 61496-2... -
Page 9: Electrical Connection
SLP series safety light grid Safety Degree of protection IP65 Connection M16 cable gland, terminal compartment Material Housing Extruded aluminum profile, RAL 1021 (yellow) coated Lens Plastic lens Weight See table 3.3 Table 3.2: Light grid technical data Number of beams, beam gap, weight: Type SLP8-2-... -
Page 10: 3.10 Dimensions
SLP series safety light grid Safety Active column SLP8-2-A-L On active column SPL8-2-A-L, up to four signal lamps (See Chapter 5) can be controlled via terminals L1, L2, L3, and L4. Transceiver SLP8-2-A nc nc nc T1 nc emitter x output... - Page 11 SLP series safety light grid Safety SLP...-3 Emitter Receiver Option -L with indicator lamp (in receiver only) third beam ø 57 Status indicator of the particular safety beam Indicator second beam lamp topmost beam first beam Operating display Receiver 33.5 Cable gland M16 Figure 3.7:...
-
Page 12: 3.11 Ordering Information
SLP series safety light grid Safety SLP...-L Mirror SLP8-2-M Transceiver SLP8-2-A Option -L with indicator lamp (transceiver only) ø 57 Status indicator indicator safety beam lamp topmost beam Operation display cable gland M16 33.5 Figure 3.9: Dimensional drawing SLP...-L 3.11 Ordering information... -
Page 13: Deviation Mirror
SLP series safety light grid Deviation mirror Deviation mirror Application Deviation mirrors deflect the path of protection beams to offer protection on more than one side using just a single emitter/receiver pair. Each mirror reduces the sensing range by no more than 15 %. -
Page 14: Dimensions
SLP series safety light grid Deviation mirror Dimensions Figure 4.2: Deviation mirror dimensional drawing Ordering information Number of Model number beams SLP-2-M SLP-3-M SLP-4-M Table 4.3: Deviation mirror ordering information... -
Page 15: Signal Lamps
Technical data Light grids in the SLP series with option L correspond to basic devices in terms of their technical properties without this option. The light grids in the SLP series are operated on safety control units in the SafeBox SB4 series. Refer to the corresponding operating in- structions for further details. -
Page 16: Electrical Connection
SLP series safety light grid Signal lamps Electrical connection See Chapter 3.9 Dimensions Figure 5.2: Dimensional drawing, signal lamps Ordering information SLP safety light grid S L P D D - N - F - L Muting lamp Signal lamp... -
Page 17: Accessories
SLP series safety light grid Accessories Accessories Mounting set Model number: MS SLP A mounting set can be used to secure and align the device. A minimum of two mounting sets are required for each profile. Test rod Model number: TR 14/30/50/90 An opaque rod with a diameter of 30 mm must be used to test safety light grids in the SLP series;... -
Page 18: Testing And Application Checklist
SLP series safety light grid Testing and Application Checklist Testing and Application Checklist Note: Observe the relevant laws and standards! The relevant laws and standards that apply to the use of photoelectric protective devices must be followed. There are differences depending on the area of use. - Page 19 SLP series safety light grid...
