SmartRunner Detector
Product Specifications
Position
Designa-
tion
4
5
6
7
8
2.5

Interfaces

The RS-485 Interface
The reader is equipped with an RS-485 interface for communication purposes, i.e., parameter-
izing the reader functions or reading out current process data during operation. This interface is
operated in 8-E-1 operating mode and fitted with a terminator that can be activated or deacti-
vated by parameterizing the sensor head.
The RS-485 interface supports the following transfer rates:
• 38400 bit/s
• 57600 bit/s
• 76800 bit/s
• 115200 bit/s (default value)
• 230400 bit/s

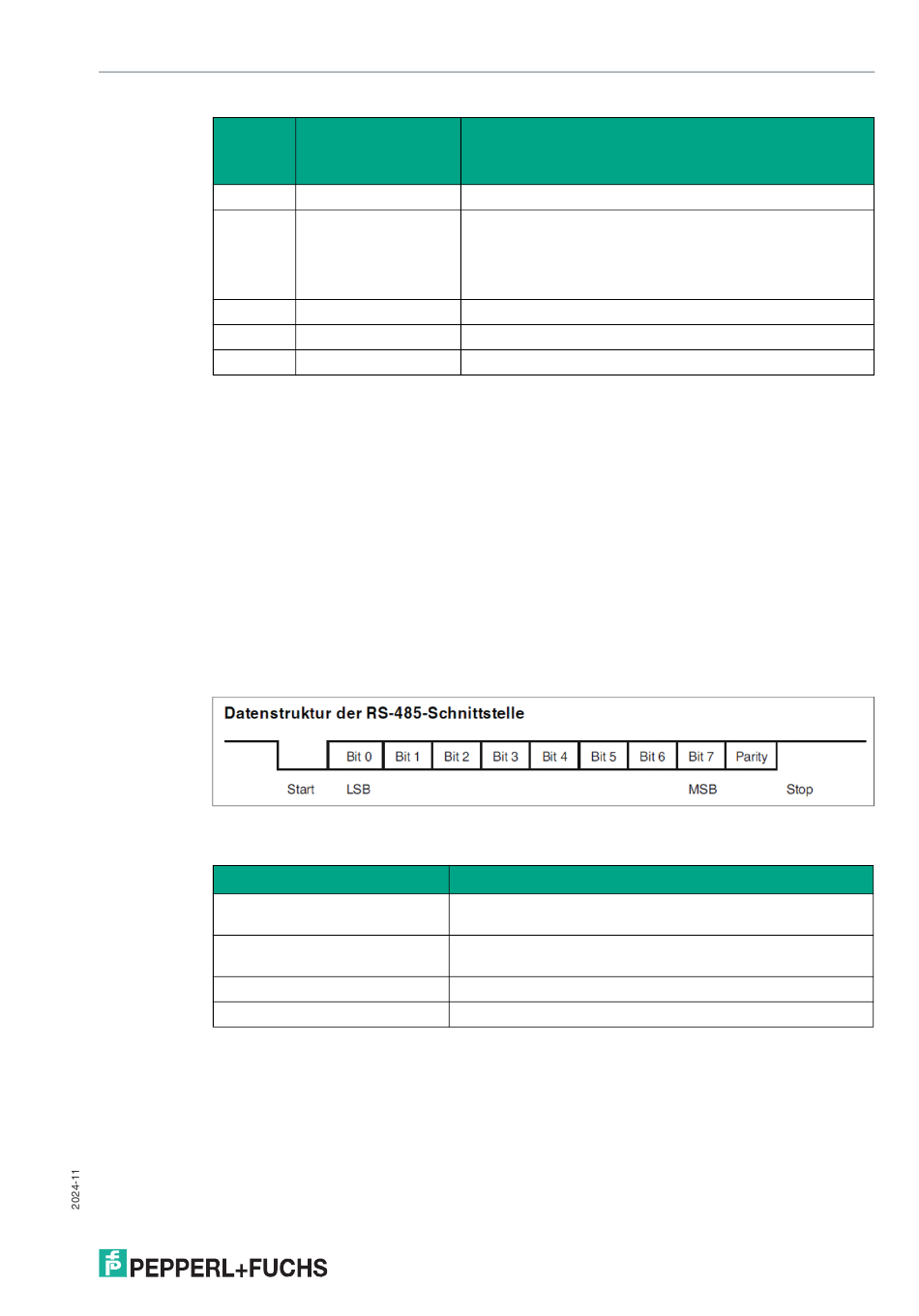

Data structure of the RS-485 interface
2.6

Accessories

Order designation
V19-G-5M-PUR-ABG
VLX-MB1
VLX-MB2
PCV-USB-RS485 Converter Set USB to RS 485 interface converter
Other accessories can be found online at www.pepperl-fuchs.com.
Bezeichnung Function
TRIGGER (yellow) •
Diagnosis (red)
•
•
•
POWER (green)
•
Background (green)
•
Object (yellow)
•
Description
Single-ended female cordset, M12, 8-pin, shielded, PUR
cable
Mounting aid, adaptable 360° adjustment of mounting head
and mounting foot
Mounting aid, fixing bracket
Lights up yellow if the hardware trigger signal is activated
Lights up red if a bus error has occurred
Lights up red if a system error has occurred on the interface
controller
Flashes red if the sensor is in Update mode
Lights up as soon as voltage is present
Lights up green when output 1 is set
Lights up yellow when output 2 is set
