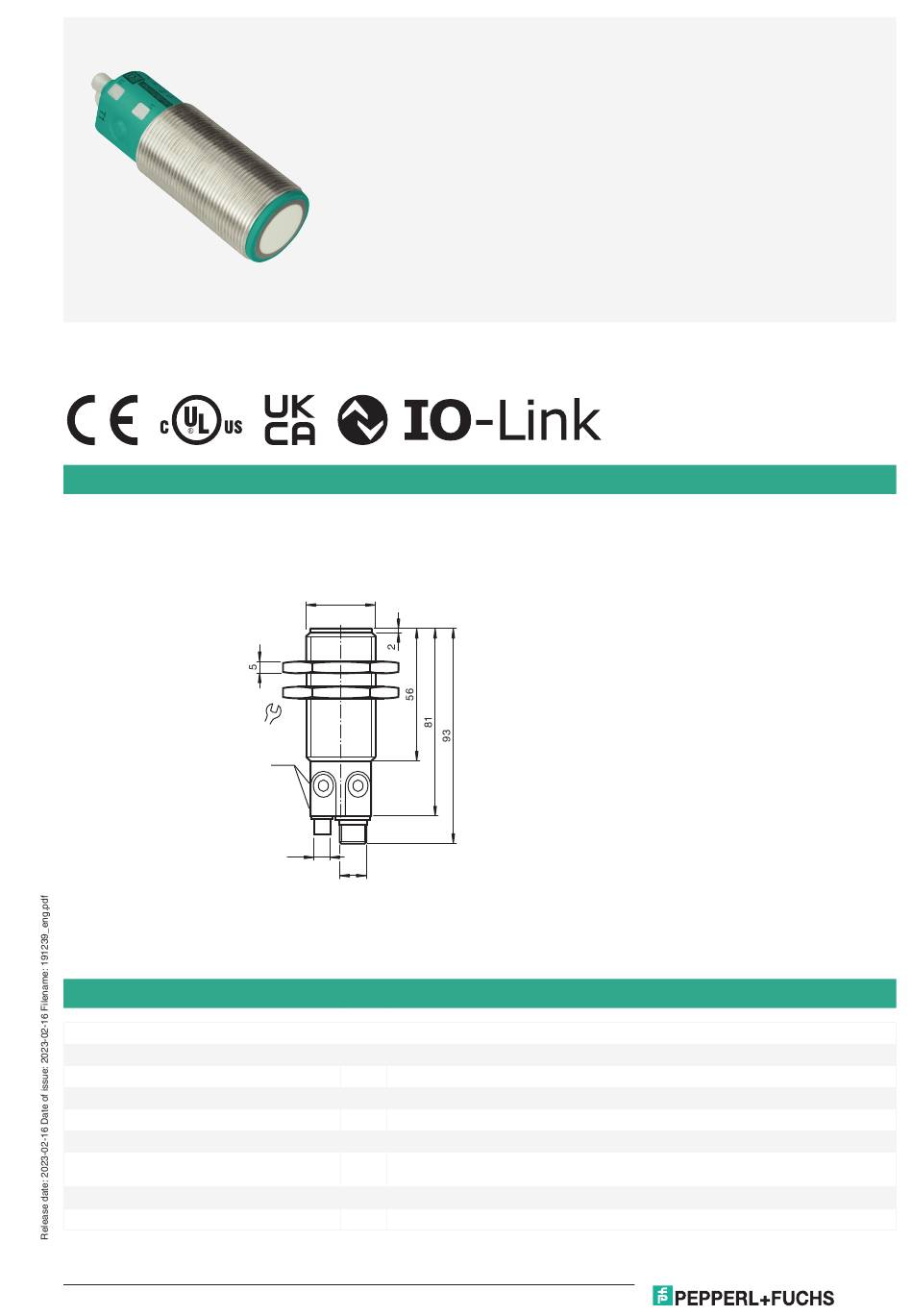

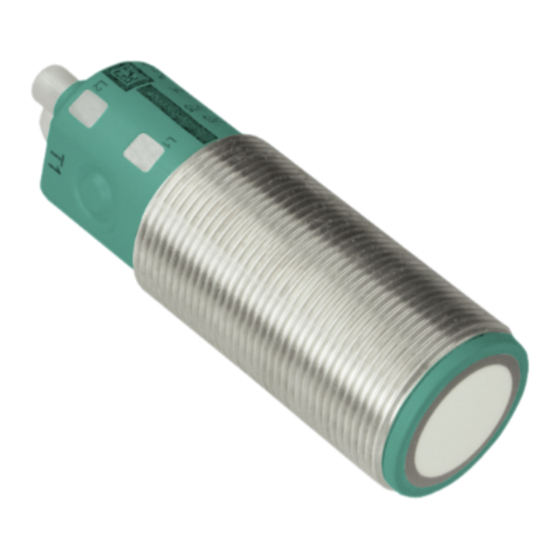

Ultrasonic sensor
UC2000-30GM-IUEP-IO-V15
<
IO-Link interface for service and process data
<
Programmable via DTM with PACTWARE
<
Switch output and analog output
<
Selectable sound lobe width
<
Synchronization options
<
Temperature compensation
M30 x 1.5
36
LED
T1
T2
ø7
M12
90 ... 2000 mm
120 ... 2000 mm
0 ... 90 mm
100 mm x 100 mm
approx. 200 kHz
minimum : 65 ms
factory setting: 125 ms
EEPROM
