Application Window Structure

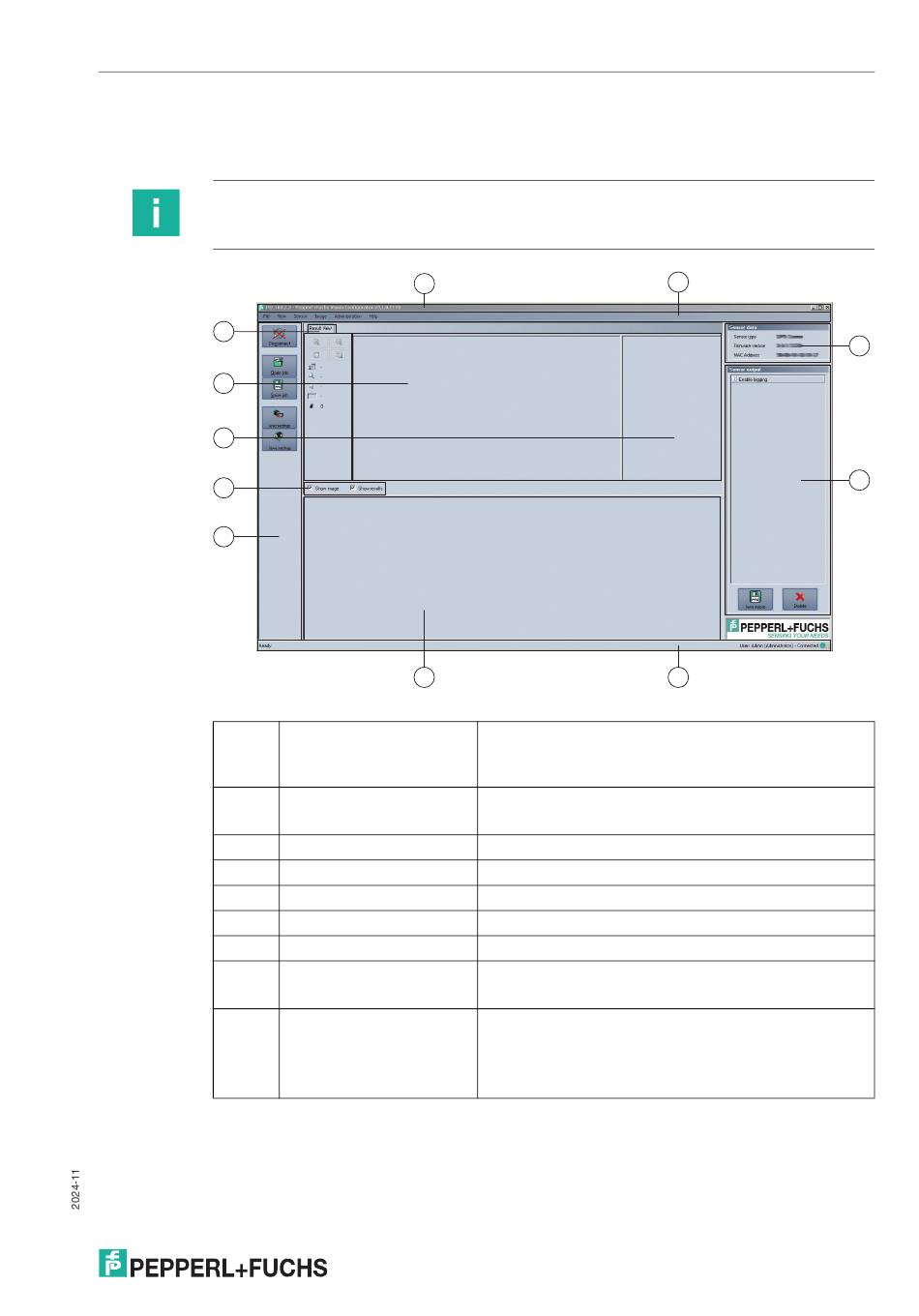

The application screen opens after you log in.
Note
The individual functions depend on the type of sensor connected and the current authorization
level, so they are not always all visible.
11
10
9
8
7
The software is designed to be similar to most Windows applications.
1
2
3
4
5
6
7
8
9
1
6
Title bar
Menu bar
Sensor data screen
Sensor output screen
Status bar
Configuration window
Toolbar
Check boxes
Results area
• Shows the IP address, the software name, and the version
number
• Contains the Minimize/Maximize/Close buttons
• Displays all the menus in the program
• Provides an overview and helps with navigation
• Displays data for the connected sensor
• Shows the log display
• Displays status information about the application
• Contains the sensor-specific parameters that you can set
• Contains icon buttons as an extension to the menu
• Show images: Enables or disables the image display
• Show results: Enables or disables the results area
• Displays results from the sensor
• A varying number of tabs can be displayed depending on
which sensor is connected
• This field can be enabled or disabled via Show results
