SmartRunner Detector
Installation

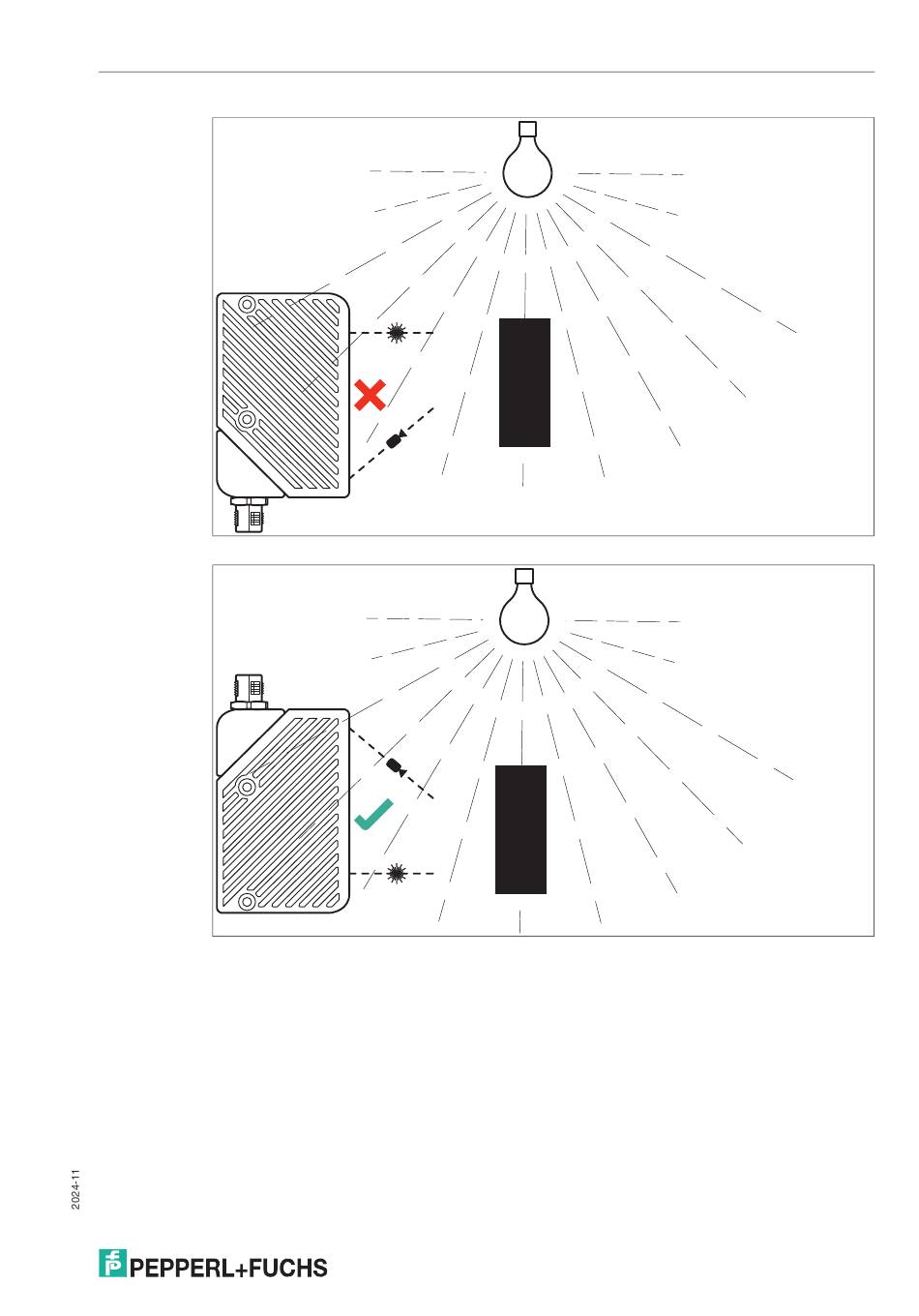

Figure 3.1
Figure 3.2
The surface must be level to prevent the housing from becoming misaligned when the fittings
are tightened. We advise securing the screws with spring disks to prevent the sensor becoming
misaligned. Following installation of the sensor, ensure that there is still sufficient space to con-
nect the connection cable to the sensor
Incorrect orientation
Correct orientation
15
