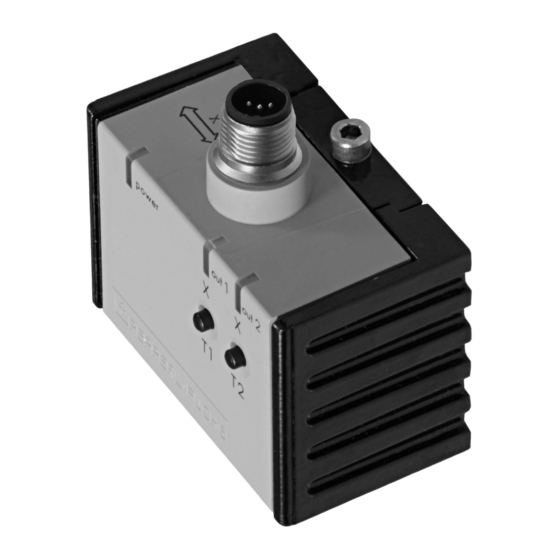

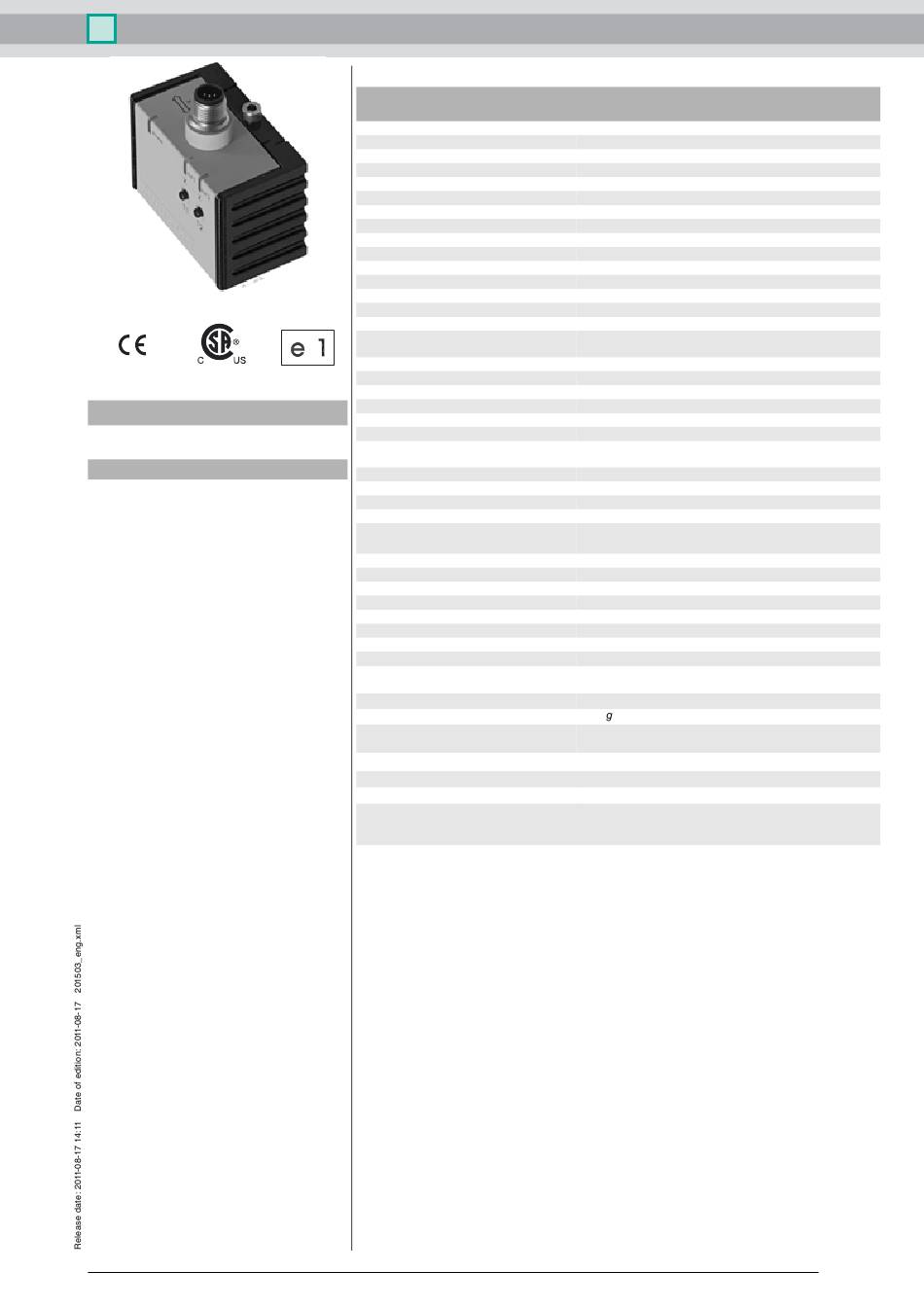

Pepperl+Fuchs INX360D-F99-I2E2-V15 Manual

Inclination sensor
Model number
INX360D-F99-I2E2-V15
Features
• Measuring range 0 ... 360°
• Analog output 4 mA ... 20 mA
• Evaluation limits can be taught-in
• 2 programmable switch outputs
• High shock resistance
• e1-Type approval
• Increased noise immunity 100 V/m
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

Technical Data

General specifications
Type
Measurement range
Absolute accuracy
Response delay
Resolution
Repeat accuracy
Temperature influence

Functional safety related parameters

MTTF
d
Mission Time (T )
M
Diagnostic Coverage (DC)

Indicators/operating means

Operating display
TEACH-IN indication
Button
Switching state

Electrical specifications

Operating voltage U
B
No-load supply current I
0
Time delay before availability t
v

Switching output

Output type
Operating current I
L
Voltage drop

Analog output

Output type
Load resistor

Ambient conditions

Ambient temperature
Storage temperature

Mechanical specifications

Connection type
Housing material
Protection degree
Mass
Compliance with standards and
directives
Standard conformity
Shock and impact resistance
Standards

Approvals and certificates

CSA approval
CCC approval
e1 Type approval

EMC Properties

Emitted interference and interference immunity in accordance with motor vehicle directive 2006/28/EG (e1 Type approval)
Interference immunity in accordance with
DIN ISO 11452-2: 100 V/m
Frequency band 20 MHz up to 2 GHz
Mains-borne interference in accordance with ISO 7637-2:
Pulse 1 2a 2b
Severity level III III III
Failure criterion C A C
EN 61000-4-2: CD: 8 kV /
Severity level IV
EN 61000-4-3: 30 V/m (80...2500 MHz)
Severity level IV
EN 61000-4-4: 2 kV
Severity level III
EN 61000-4-6: 10 V (0.01...80 MHz)
Severity level III
EN 55011: Klasse A
INX360D-F99-I2E2-V15
Inclination sensor, 1-axis
0 ... 360 °
≤ ± 0.5 °
≤ 20 ms
≤ 0.1 °
≤ ± 0.1 °
≤ 0.027 °/K
300 a
20 a
0 %
LED, green
2 LEDs yellow (switching status), flashing
2 push-buttons ( Switch points programming , Evaluation
range programming )
2 yellow LEDs: Switching status (each output)
10 ... 30 V DC
≤ 25 mA
≤ 200 ms
2 switch outputs PNP, NO , reverse polarity protected ,
short-circuit protected
≤ 100 mA
≤ 3 V
1 current output 4 ... 20 mA
0 ... 200 Ω at U
= 10 ... 18 V
B
0 ... 500 Ω at U
= 18 ... 30 V
B
-40 ... 85 °C (-40 ... 185 °F)
-40 ... 85 °C (-40 ... 185 °F)
M12 x 1 connector, 5-pin
PA
IP68 / IP69K
240 g
100 according to DIN EN 60068-2-27
EN 60947-5-2:2007
IEC 60947-5-2:2007
cCSAus Listed, General Purpose, Class 2 Power Source
Products with a maximum operating voltage of ≤36 V do
not bear a CCC marking because they do not require
approval.
2006/28/EG
3a 3b 4
III III III
A A C
AD: 15 kV
IV
Copyright Pepperl+Fuchs, Printed in Germany
1
