Function Display - Icom IC-M25 Instruction Manual

10 FAVORITE CHANNEL KEY [FAV ]
(p. 14)
• Push to select a Favorite channel.
• Hold down for 1 second to set or clear
the selected channel as a Favorite
channel.
11 UP/DOWN KEYS [▲]/[▼]
• Push to select the operating channel.
• Push to change the volume/squelch
level while adjusting.
• In the Set mode, push to select an
item option.
12 ANTENNA CONNECTOR (p. 2)
Connect the supplied antenna here.

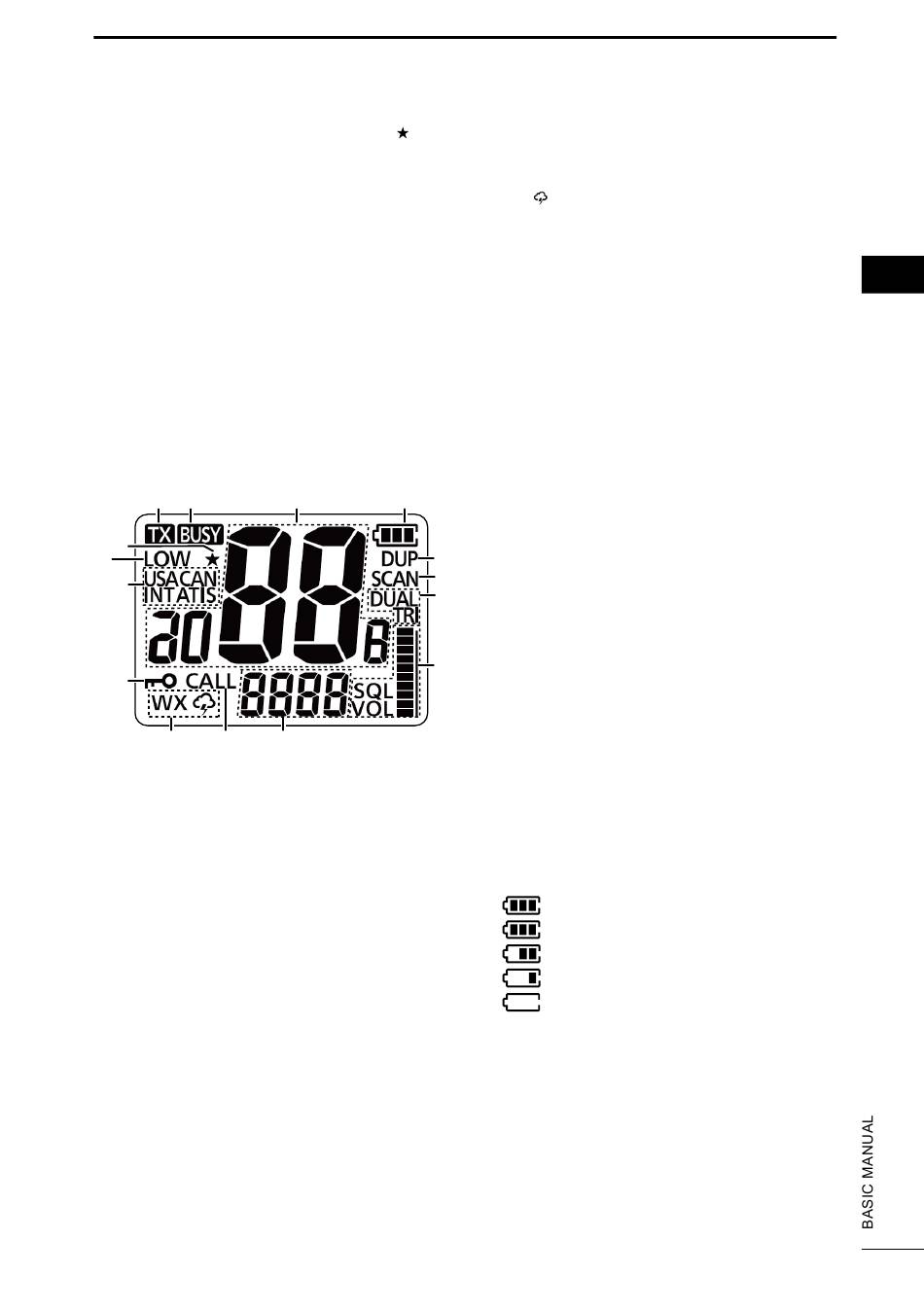

■ Function Display

15 14
1
2
3
4
5 6
1 FAVORITE CHANNEL ICON
Displayed when a Favorite channel is
selected. (p. 14)
2 LOW POWER ICON
• Displayed when low power is selected.
• Blinks when a high temperature
error or low voltage is detected, and
automatically switches to low power.
3 CHANNEL GROUP INDICATOR
(p. 8)
Displays the selected channel group,
INT (International), USA, CAN
(Canada), or ATIS.
L The selectable channels differ,
depending on the transceiver version,
or the presetting.
4 LOCK ICON
Displayed when the Lock function is
ON. (p. 11)
13 12
11
10
9
8
7
PANEL DESCRIPTION
5 WEATHER CHANNEL ICON*
Displayed when the Weather channel is
selected. (p. 9)
L " " is displayed when the Weather
Alert function is ON.
6 CALL CHANNEL ICON
Displayed when the Call channel is
selected. (p. 8)
7 SUB CHANNEL READOUT
• Displays the volume/squelch level
while adjusting the level. (p. 11)
• Displays Channel 16 during a priority
scan, Dualwatch or Tri-watch. (p. 15)
• Displays the Set mode item while in
the Set mode. (p. 16)
8 VOLUME/SQUELCH LEVEL
INDICATOR
• Number of bars shows the volume/
squelch level.
• "SQL" blinks when adjusting the
squelch level. (p. 11)
• "VOL" blinks when adjusting the
volume level.
9 DUALWATCH/TRI-WATCH INDICATOR*
Blinks during Dualwatch or
Tri-watch operation. (p. 15)
10 SCAN ICON*
2
Blinks while scanning. (p. 14)
11 DUPLEX ICON
Displayed when a Duplex channel is
selected.
12 BATTERY INDICATOR
Displays the battery status.
Over charged
(Blinks):
Full
:
Mid
:
Charging required
:
Battery exhausted
(Blinks):
13 CHANNEL NUMBER READOUT
Displays the selected operating channel
number.
14 BUSY ICON
Displayed while receiving, or the
squelch is open.
15 TRANSMIT ICON
Displayed while transmitting.
* For the USA, EXP, and AUS versions
1
* Except the NLD version
2
3
1
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
2
13 13
14 14
15 15
16 16
17 17
18 18
