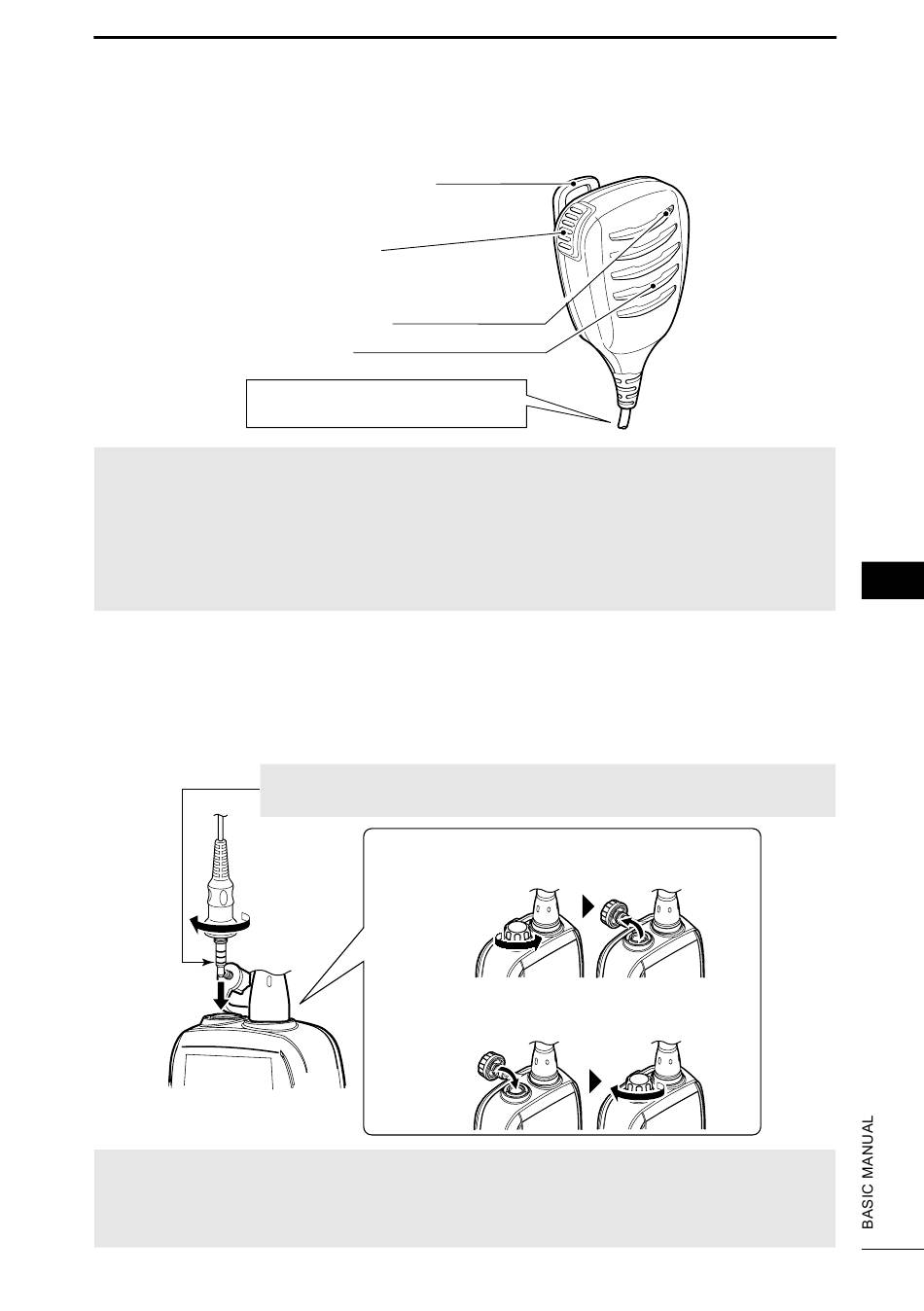

■ Using the HM-213
Alligator type clip
To attach the speaker microphone
to your shirt or collar.
PTT switch
Push to transmit.
Release to receive.
Microphone
Speaker
Turn the transceiver power OFF
when connecting the HM-213.
NOTE:
• NEVER immerse the connector in water. If the connector becomes wet, BE SURE to
dry it before attaching to the transceiver.
• The microphone element is located at the top of the speaker microphone, as shown in
the illustration above. To maximize the readability of your transmitted audio, hold the
microphone approximately 5 ~ 10 cm (2 ~ 4 inches) from your mouth, and then speak
at your normal voice level.
D Attaching the HM-213
1. Turn OFF the transceiver.
2. Insert the speaker microphone connector into the [SP/MIC] connector and securely
screw it, as shown below.
L Be careful not to cross-thread the connection.
CAUTION: Attach the speaker microphone's connector securely to
prevent accidental loss, or water intrusion into the connector.
NOTE: KEEP the transceiver's [SP/MIC] cover attached when the speaker microphone
is not used. If the cover is not attached, water will get into the transceiver. Moreover,
the terminals (pins) will become rusty, or the transceiver will function abnormally if the
connector gets wet.
SPECIFICATIONS AND OPTIONS
Detaching: Rotate the [SP/MIC] cover counter-
clockwise, and then detach it.
Attaching: Attach the [SP/MIC] cover, and
then rotate it clockwise completely.
