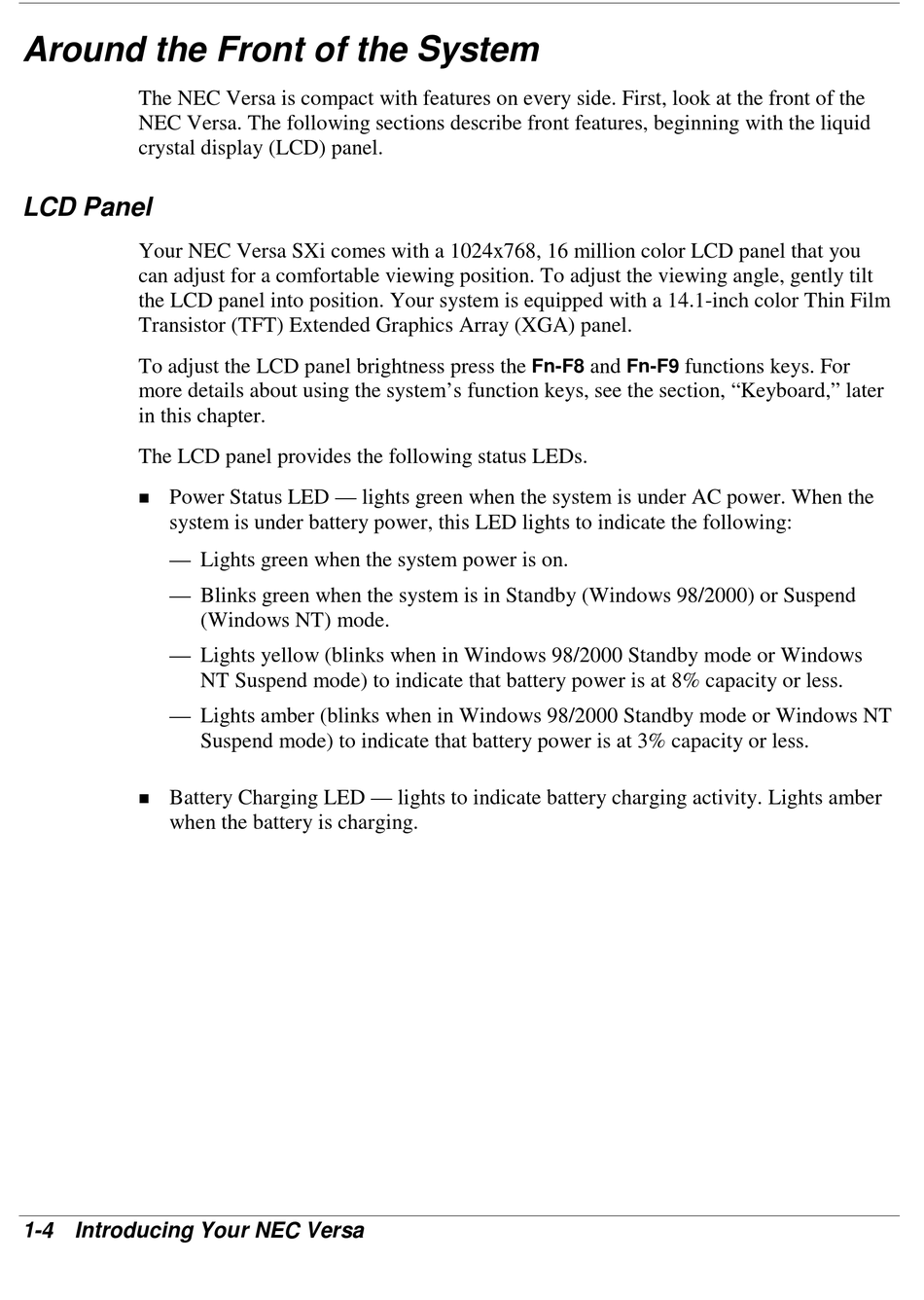

Around the Front of the System
The NEC Versa is compact with features on every side. First, look at the front of the
NEC Versa. The following sections describe front features, beginning with the liquid
crystal display (LCD) panel.

LCD Panel

Your NEC Versa SXi comes with a 1024x768, 16 million color LCD panel that you
can adjust for a comfortable viewing position. To adjust the viewing angle, gently tilt
the LCD panel into position. Your system is equipped with a 14.1-inch color Thin Film
Transistor (TFT) Extended Graphics Array (XGA) panel.
To adjust the LCD panel brightness press the
more details about using the system's function keys, see the section, "Keyboard," later
in this chapter.
The LCD panel provides the following status LEDs.
Power Status LED — lights green when the system is under AC power. When the
!
system is under battery power, this LED lights to indicate the following:
— Lights green when the system power is on.
— Blinks green when the system is in Standby (Windows 98/2000) or Suspend
— Lights yellow (blinks when in Windows 98/2000 Standby mode or Windows
— Lights amber (blinks when in Windows 98/2000 Standby mode or Windows NT
Battery Charging LED — lights to indicate battery charging activity. Lights amber
!
when the battery is charging.
1-4 Introducing Your NEC Versa
(Windows NT) mode.
NT Suspend mode) to indicate that battery power is at 8% capacity or less.
Suspend mode) to indicate that battery power is at 3% capacity or less.
Fn-F8 and Fn-F9 functions keys. For
