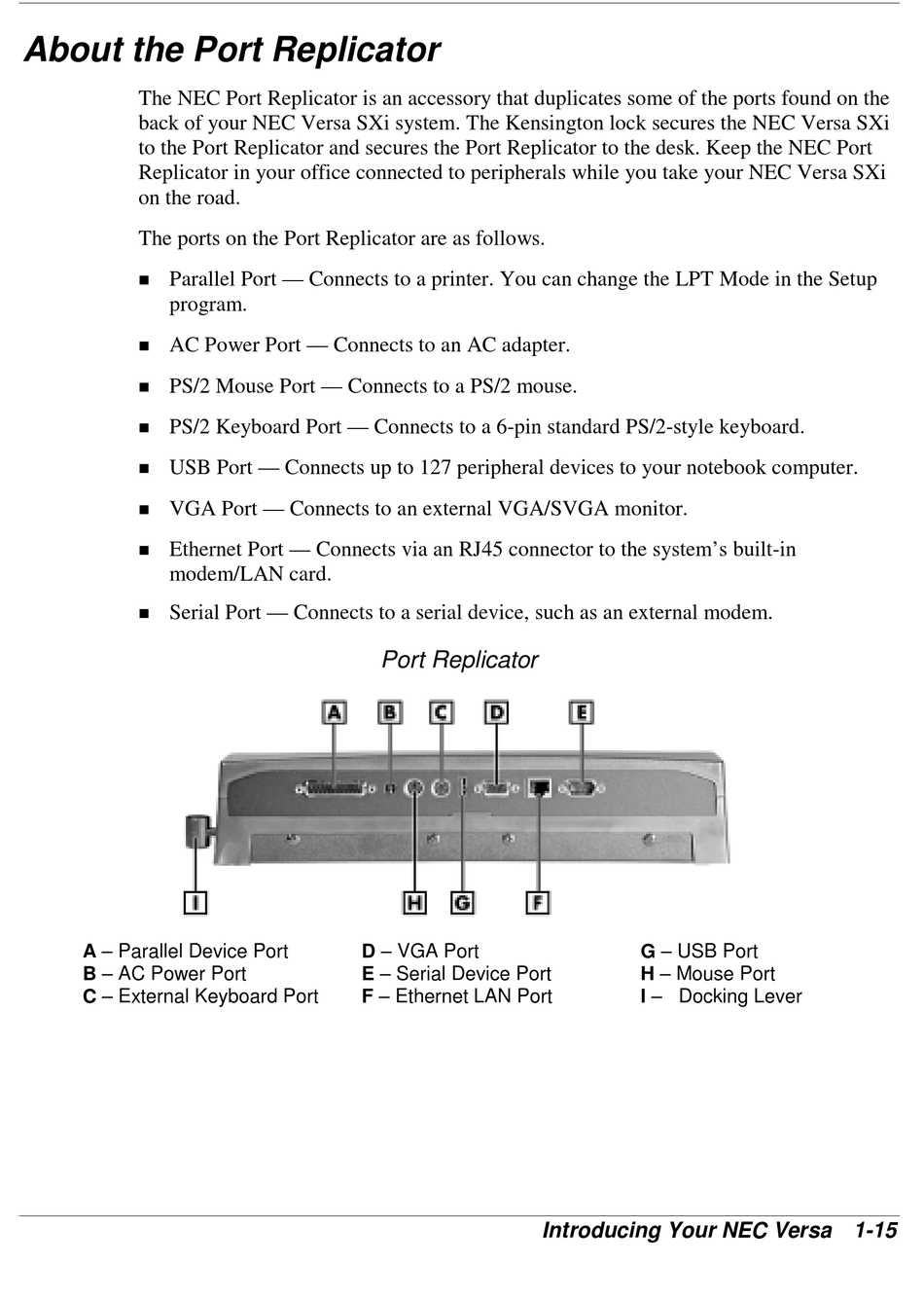

About the Port Replicator

The NEC Port Replicator is an accessory that duplicates some of the ports found on the
back of your NEC Versa SXi system. The Kensington lock secures the NEC Versa SXi
to the Port Replicator and secures the Port Replicator to the desk. Keep the NEC Port
Replicator in your office connected to peripherals while you take your NEC Versa SXi
on the road.
The ports on the Port Replicator are as follows.
Parallel Port — Connects to a printer. You can change the LPT Mode in the Setup
!
program.
AC Power Port — Connects to an AC adapter.
!
PS/2 Mouse Port — Connects to a PS/2 mouse.
!
PS/2 Keyboard Port — Connects to a 6-pin standard PS/2-style keyboard.
!
USB Port — Connects up to 127 peripheral devices to your notebook computer.
!
VGA Port — Connects to an external VGA/SVGA monitor.
!
Ethernet Port — Connects via an RJ45 connector to the system's built-in
!
modem/LAN card.
Serial Port — Connects to a serial device, such as an external modem.
!
A – Parallel Device Port
B – AC Power Port
C – External Keyboard Port
Port Replicator
D – VGA Port
E – Serial Device Port
F – Ethernet LAN Port
G – USB Port
H – Mouse Port
I – Docking Lever
