2-12 Setup and Operation

Status Icons and LEDs

The NEC Versa status information is located in the rear center of the system. Figure 2-8
shows the status icons.

Status Icons

The NEC Versa uses eight icons to let the user determine system status, as follows.
T
Power – Lets you know that power to the system is turned on. This LED is posi-
tioned so that you see the power state whether the LCD panel is opened or
closed.
lights green when the system is powered on.
lights amber when battery power is below 10%.
flashes amber when battery power is below 5%.
T
Hard Disk Drive – Lights when the NEC Versa 2600 writes data to or retrieves
data from the hard disk drive.
T
CD-ROM Reader – Lights when data is read from a compact disc in the CD-
ROM drive.
Power Hard
Disk Drive
A
Caps Num
Lock Lock

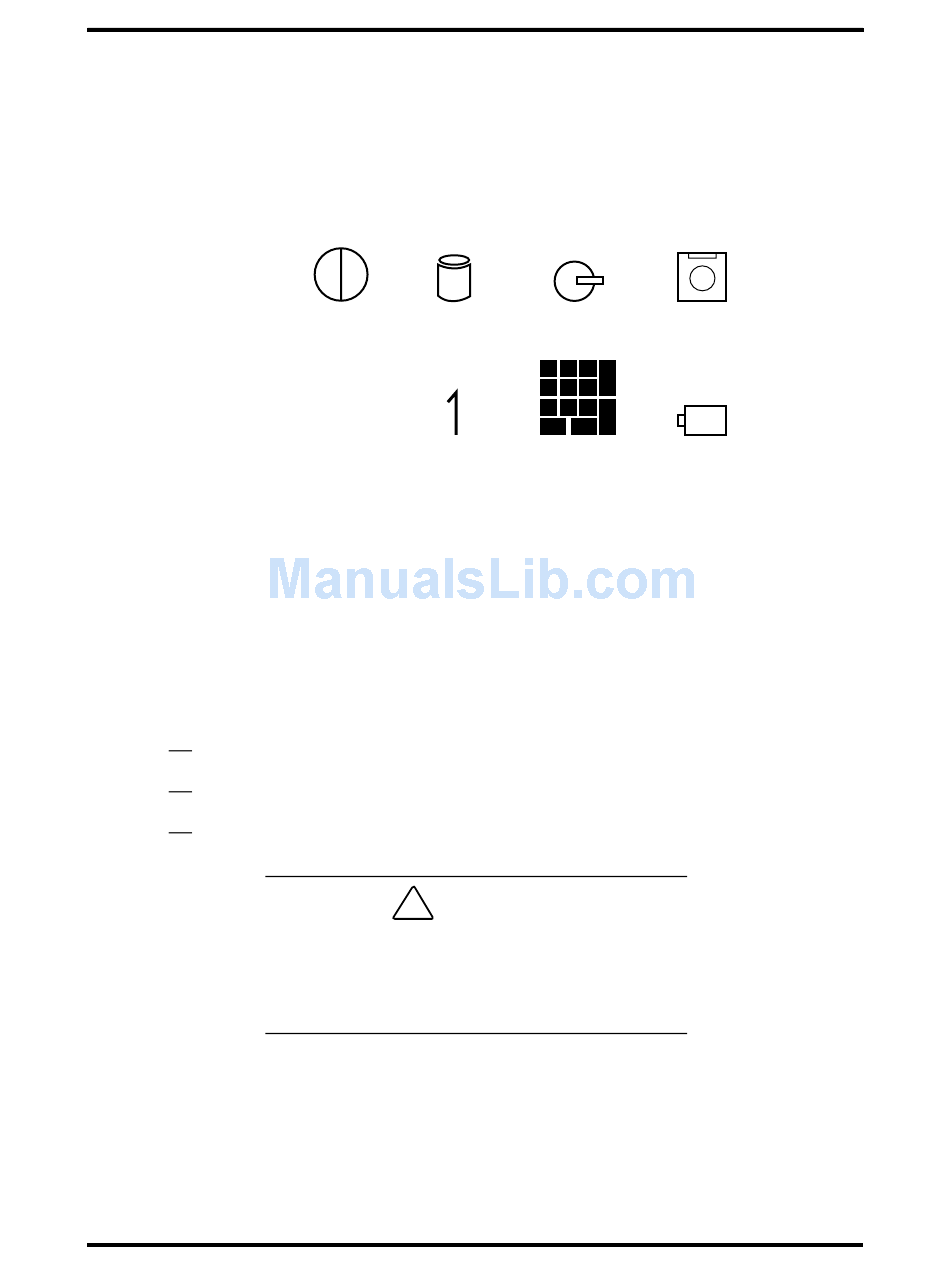

Figure 2-8 Status Icons
!
CAUTION
Be sure to save your data immediately when the
Power LED turns to yellow, flashes yellow, or
the system beeps. Failure to do so may result in
data loss.
CD-ROM Diskette
Reader Drive
Pad Battery
Lock
