CONFIGURATION:

The "Gateway CANopen to Modbus", allows a CANopen network to
communicate with a Modbus network.
You need Compositor SW67002 software on your PC in order to
perform the following:
Define that the SDO of the CANopen are accessible from
Modbus;
Define how to update SDO in CANopen from Modbus;
Define that the EMCY of the CANopen are accessible from
Modbus;
Define how and which EMCY generated in CANopen can be
filtered;
Define which and how the PDO of CANopen are accessible
from Modbus;
Update the new configurations of the device;
Save, duplicate, modify, export the configurations.

USE OF COMPOSITOR SW67002:

To configure the Gateway, use the available software that runs with
Windows, called SW67002
(The SW67002 is downloadable
http://www.adfweb.com/home/download/download.asp).
When launching the SW67002 the right window appears:
ADFweb.com Srl – IT31010 – Mareno – Treviso

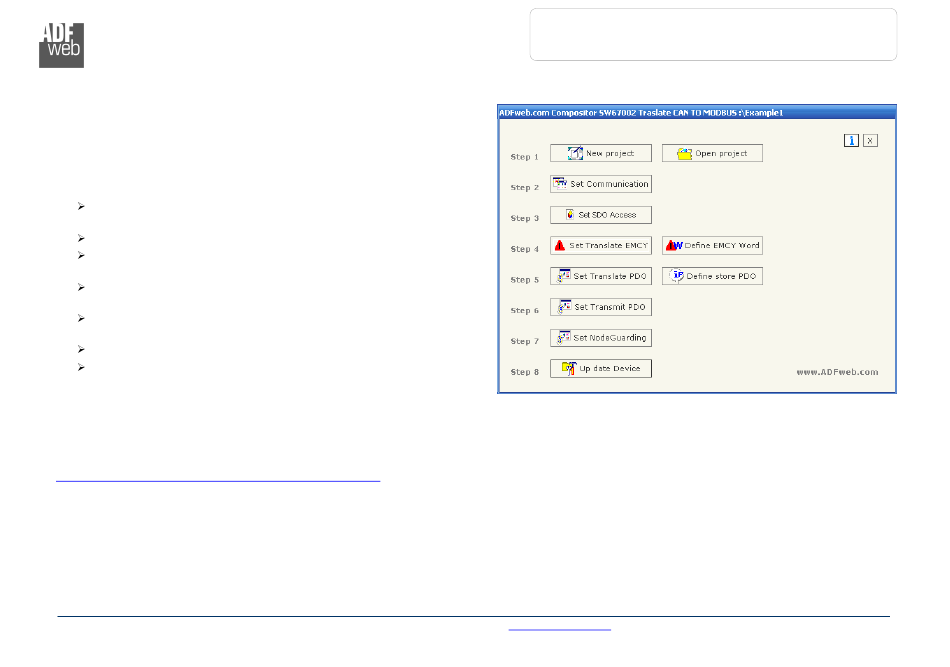

Figure 4: Main window for SW67002
