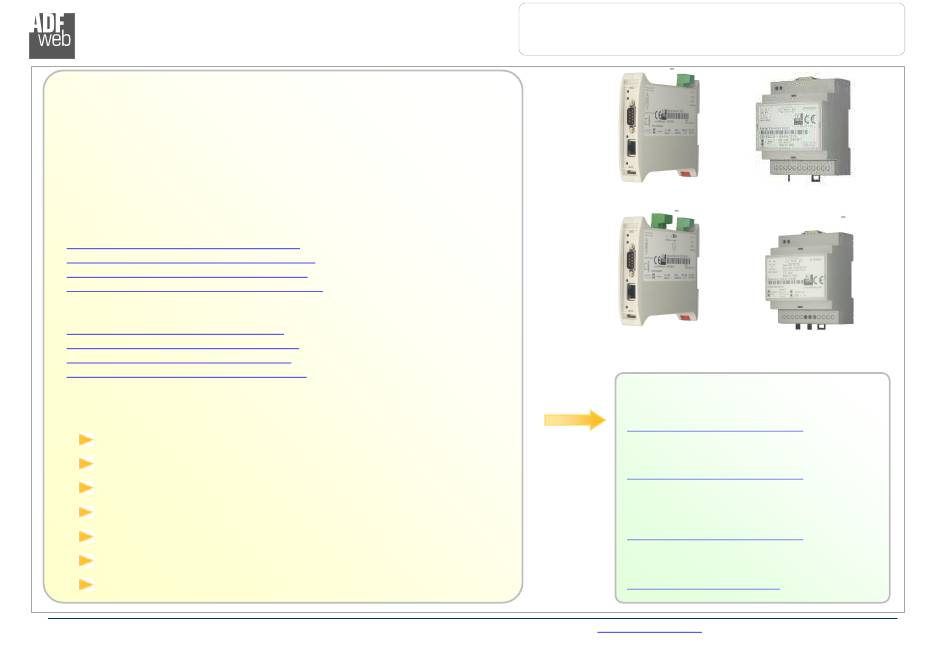

Industrial Electronic Devices
User Manual
Revision 1.400
English

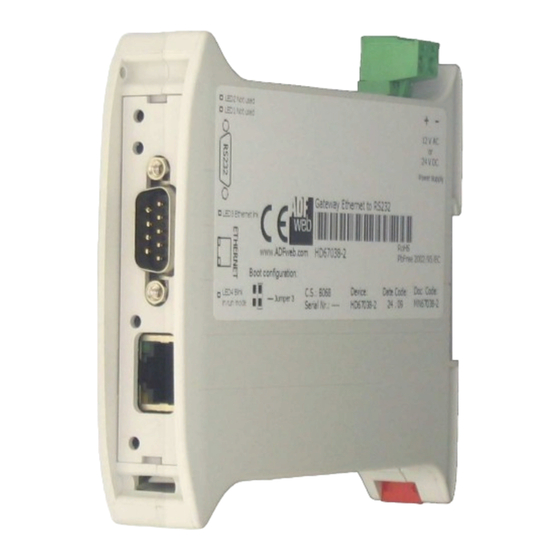

Converter / Adapter
Ethernet to RS232 / RS485
(Order Code: HD67038-2
HD67038-25 HD67038-25-M)
for Website information:
www.adfweb.com?Product=HD67038-2
www.adfweb.com?Product=HD67038-2-M
www.adfweb.com?Product=HD67038-25
www.adfweb.com?Product=HD67038-25-M
for Price information:
www.adfweb.com?Price=HD67038-2
www.adfweb.com?Price=HD67038-2-M
www.adfweb.com?Price=HD67038-25
www.adfweb.com?Price=HD67038-25-M
Benefits and Main Features:
Galvanic isolation between Ethernet and RS232
Protocol independent
Suitable for supervision software
SCADA/HMI and the connection to a Personal Computer
Automated control of the line directions.
Easy to use software configuration.
Temperature range -30°C to 70°C;
ADFweb.com Srl – IT31010 – Mareno – Treviso
HD67038-2-M
User Manual Ethernet to RS232 / RS485
Document code: MN67038-2_ENG
Revision 1.400
HD67038-2
HD67038-25
For others Converter / Adapter:
Similiar
RS232 / RS485
Products
See also the following link:
www.adfweb.com?Product=HD67118
USB / RS485
See also the following link:
www.adfweb.com?Product=HD67119
Do you have an your customer protocol?
See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 25
HD67038-2-M
HD67038-25-M
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67038-2
Summary of Contents for ADF Web HD67038-2
- Page 1 Document code: MN67038-2_ENG Revision 1.400 Page 1 of 25 Industrial Electronic Devices User Manual Revision 1.400 English Converter / Adapter Ethernet to RS232 / RS485 (Order Code: HD67038-2 HD67038-2-M HD67038-2 HD67038-25 HD67038-25-M) HD67038-2-M for Website information: www.adfweb.com?Product=HD67038-2 www.adfweb.com?Product=HD67038-2-M www.adfweb.com?Product=HD67038-25 www.adfweb.com?Product=HD67038-25-M for Price information: www.adfweb.com?Price=HD67038-2...
-
Page 2: Table Of Contents
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 2 of 25 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX... -
Page 3: Connection Scheme
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 3 of 25 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67038-2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 4 User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 4 of 25 Industrial Electronic Devices Figure 2: Connection scheme for HD67038-2-M ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 5 User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 5 of 25 Industrial Electronic Devices Figure 3: Connection scheme for HD67038-25 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 6 User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 6 of 25 Industrial Electronic Devices Figure 4: Connection scheme for HD67038-25-M ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 7: Characteristics
Fixed Stop bit (1); Temperature range -30°C to 70°C; EN 61000-6-2. POWER SUPPLY: Caution: Not reverse the polarity power Recommended Power Supply Vmin Vmax Vmin Vmax HD67038-2 HD67038-2-M HD67038-25 HD67038-25-M ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Configuration
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 8 of 25 Industrial Electronic Devices CONFIGURATION: This device allows the following configurations: Remote COM Port; Tunnel Point to Point ( Ethernet bridge for a serial line); Tunnel Point to Multipoint. -
Page 9: General Parameter
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 9 of 25 Industrial Electronic Devices GENERAL PARAMETER: By Pressing the “General Parameter” button from the main window for SW67038 (Fig. 5), the window “General Parameter” appears. This window is divided in three sections: in the first you can select the Operating Modality, the second is used to configure the Ethernet and the last to configure the Serial line. -
Page 10: Remote Rcom Port
The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485” is checked the serial line in use is the RS485 otherwise is the RS232;... -
Page 11: M Point P P
The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485” is checked the serial line in use is the RS485 otherwise is the RS232;... -
Page 12: Tunnel
In the field “Port” the Port of the Converter is defined. The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485”... - Page 13 The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485” is checked the serial line in use is the RS485 otherwise is the RS232;...
- Page 14 IP Address of the gateway used for going out to the net in the field under; The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485”...
- Page 15 IP Address of the gateway used for going out to the net in the field under; The means of the fields for “Serial Configuration” are: If you are using HD67038-2 or HD67038-2-M Converter, the field “RS232” must be checked; instead if you are using HD67038-25 or HD67038-25-M Converter, if the field “RS485”...
-
Page 16: Update Via Tcp
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 16 of 25 Industrial Electronic Devices UPDATE VIA TCP: Section “Update Via TCP” (Fig. 10): In order to load the parameters or update the firmware in the gateway, follow these instructions: Connect the Ethernet cable to the gateway;... -
Page 17: Update Via Serial
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 17 of 25 Industrial Electronic Devices UPDATE VIA SERIAL: Section “Update Via Serial” (Fig. 11): In order to load the parameters or update the firmware in the gateway, follow these instructions: Turn OFF the device;... -
Page 18: Some Examples
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 18 of 25 Industrial Electronic Devices SOME EXAMPLES: Figure 14: Some examples ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 19: Characteristics Of The Cables
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 19 of 25 Industrial Electronic Devices CHARACTERISTICS OF THE CABLES: THERNET The connection with the Ethernet socket must be done with a Ethernet Cable with a RJ45 Plug. RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed). -
Page 20: Active Serial Driver
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 20 of 25 Industrial Electronic Devices ACTIVE SERIAL DRIVER: Before pressing the “Active Serial Driver” button from the “General Parameter” window it is necessary to download the “Serial to Ethernet Connector”... - Page 21 User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 21 of 25 Industrial Electronic Devices Go in the “Connection prefs” Section. Step 1 – Select the RAW protocol; Step 2 – Select the “Send Keep alive” option; Step 3 –...
-
Page 22: Change Baud And Parity On The Fly
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 22 of 25 Industrial Electronic Devices CHANGE BAUDRATE AND PARITY ON THE FLY: Enable the option “Enable change baudrate on the fly” in the modality “Remote COM Port” is possible to change the baudrate and the parity of the serial port by sending a TCp frame into the post selected “Port”. -
Page 23: Mechanical Dimensions
Revision 1.400 Page 23 of 25 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 18: Mechanical dimensions scheme for HD67038-2 Figure 19: Mechanical dimensions scheme for HD67038-2-M Figure 20: Mechanical dimensions scheme for HD67038-25 Figure 21: Mechanical dimensions scheme for HD67038-25-M ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com... -
Page 24: Order Code
Document code: MN67038-2_ENG Revision 1.400 Page 24 of 25 Industrial Electronic Devices ORDER CODE: Order Code: HD67038-2 Converter – Ethernet to RS232 Order Code: HD67038-2-M Converter – Ethernet to RS232 (Different enclosure) Order Code: HD67038-25 Converter – Ethernet to RS232 / RS485 Order Code: HD67038-25-M Converter –... -
Page 25: Warranties And Technical Support
User Manual Ethernet to RS232 / RS485 Document code: MN67038-2_ENG Revision 1.400 Page 25 of 25 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
