UPDATE DEVICE:

Section "Update Device":
Insert the boot jumper (see figure 2).
In order to load the parameters after they are set, set the Com port you used for
update, then you must click the button "Execute update firmware" on the principal
window.

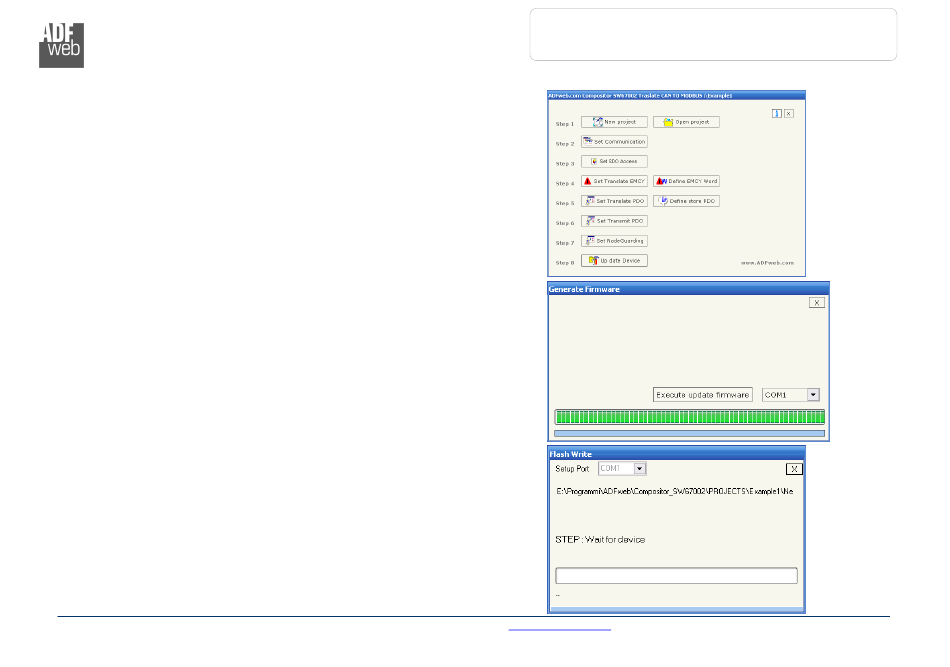

Figure 15: Update device procedure
