Industrial Electronic Devices
User Manual
Revision 1.000
English
DMX / Ethernet – Converter
(Order Code: HD674-A025)
For Website information:
www.adfweb.com?Product=HD674-A025
For Price information:
www.adfweb.com?Price=HD674-A025
Benefits and Main Features:
Very easy to configure
Wide supply input range
Electrical isolation
Industrial temperature range:
-40°C / 105°C (-40°F / 221°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual DMX / Ethernet - Converter
Document code: MN674-A025_ENG
For others Gateways / Bridges:
J1939 to Modbus
See also the following links:
www.adfweb.com?Product=HD67212
CANopen to Modbus
See also the following links:
www.adfweb.com?Product=HD67001
www.adfweb.com?Product=HD67002
www.adfweb.com?Product=HD67004
www.adfweb.com?Product=HD67005
For others Gateways / Bridges:
For CAN bus 2.0A and/or CAN bus 2.0B to Modbus
See also the following links:
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67012
www.adfweb.com?Product=HD67014
www.adfweb.com?Product=HD67015
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000 Page 1 of 30
(Modbus RTU)
(Modbus RTU Master)
(Modbus RTU Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(Modbus RTU Slave)
(Modbus RTU Master)
(Modbus TCP Slave)
(Modbus TCP Master)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD674-A025
Summary of Contents for ADF Web HD674-A025

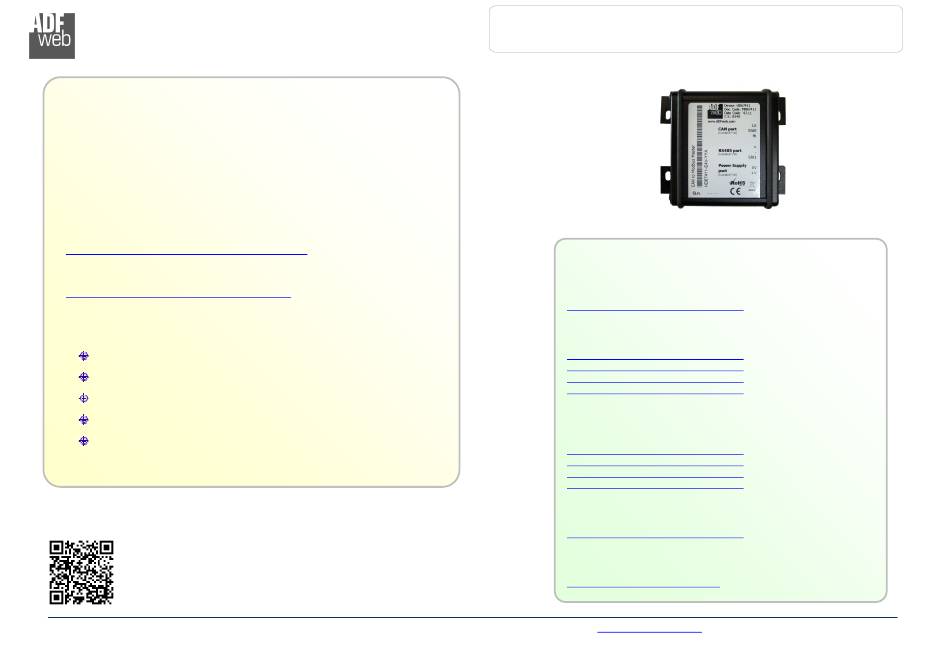

- Page 1 Document code: MN674-A025_ENG Revision 1.000 Page 1 of 30 Industrial Electronic Devices User Manual Revision 1.000 English DMX / Ethernet – Converter (Order Code: HD674-A025) For Website information: www.adfweb.com?Product=HD674-A025 For others Gateways / Bridges: For Price information: J1939 to Modbus www.adfweb.com?Price=HD674-A025 See also the following links: www.adfweb.com?Product=HD67212...
-
Page 2: Table Of Contents
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Examples Of Connection
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD674-A025-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 6 of 30 Industrial Electronic Devices Figure 1b: Connection scheme for HD674-A025-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD674-A025” series are rugged devices used to interface DMX devices with Ethernet network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique). -
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD674-A025-Exx-xx Consumption at 24V DC: Device W/VA HD674-A025-Exx-xx Caution: Not reverse the polarity power HD674-A025-E4x-xx HD674-A025-E7x-xx Note: It is possible to use also negative tensions. -
Page 9: Leds
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 9 of 30 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Rs485
Revision 1.000 Page 10 of 30 Industrial Electronic Devices RS485: The connection of the RS485 in the HD674-A025-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. -
Page 11: Ethernet
ETHERNET: The connection of Ethernet in the HD674-A025 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 12: Use Of Compositor Sw674-A025
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 12 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW674-A025: To configure the Converter, use the available software that runs with Windows called SW674-A025. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Project / Open Project
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 13 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “... -
Page 14: Software Options
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 14 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 15 of 30 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 16 of 30 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, DMX Slave and Ethernet. By Pressing the “Set Communication” button from the main window of SW674-A025 (Fig. 2) the window “Set Communication”... -
Page 17: Dmx Default Value
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 17 of 30 Industrial Electronic Devices DMX DEFAULT VALUE: By pressing the “DMX Default Value” button from the main window for SW674-A025 (Fig. 2) the “DMX Default Value” window appears (Fig. In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON. -
Page 18: Update Device Udp
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 18 of 30 Industrial Electronic Devices UPDATE DEVICE UDP: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 19 A025 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD674-A025 device. Warning: If Fig. 6 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
-
Page 20: Ethernet Protocol
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 20 of 30 Industrial Electronic Devices ETHERNET PROTOCOL DMX = DMX OUT) WRITE WHEN The bytes that compose the request are these: Byte Number Description ASCII char ‘E’ ASCII char ‘D’... - Page 21 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 21 of 30 Industrial Electronic Devices If case of sintax error for the request (too much DMX channels), the bytes that compose the response are these: Byte Number Description ASCII char ‘R’...
- Page 22 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 22 of 30 Industrial Electronic Devices DMX = DMX IN) READ WHEN The bytes that compose the request are these: Byte Number Description ASCII char ‘E’ ASCII char ‘D’ ASCII char ‘M’...
- Page 23 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 23 of 30 Industrial Electronic Devices If case of sintax error for the request (too much DMX channels), the bytes that compose the response are these: Byte Number Description ASCII char ‘R’...
-
Page 24: Mechanical Dimensions
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 24 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 25 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 25 of 30 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 26 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 26 of 30 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 27 User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 27 of 30 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 28: Order Code
Revision 1.000 Page 28 of 30 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD674-A025 – E y z – s f Fixing lugs A: Type A B: Type B... -
Page 29: Disclaimer
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 29 of 30 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 30: Warranties And Technical Support
User Manual DMX / Ethernet - Converter Document code: MN674-A025_ENG Revision 1.000 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
