SET NODE GUARDING

By pressing the "Set Node Guarding" button from the
Main Window for SW67002 (Fig. 4) the right window
appears (Fig. 14).
•
In the field "Node ID" insert the address of
the device that you want to control. It is
possible to insert up to 32 address;
•
In the field "Guard Time" insert a time. This
value indicates the delay between two
interrogation;
•
In the field "Life Time Factor" insert the
number of attempts before considering the
device absent;
•
In the field "Mnemonic" a description is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual CANopen / Modbus Slave
Document code: MN67002_ENG

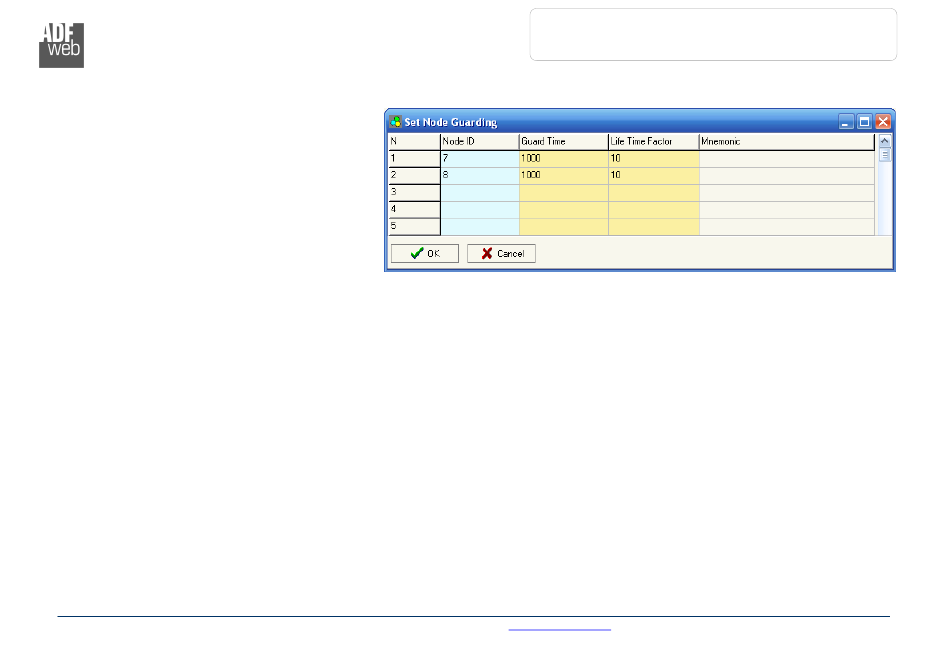

Figure 14: "Set Node Guarding" window
