Connector Pin Assignments
Parallel Interface Connector
The system has a 25-pin parallel port on the system board. Parallel interface specifications
for this port conform to the IBM-PC interface. Pin locations and pin assignments for the
parallel interface connector are shown in Figure Appendix A-3.

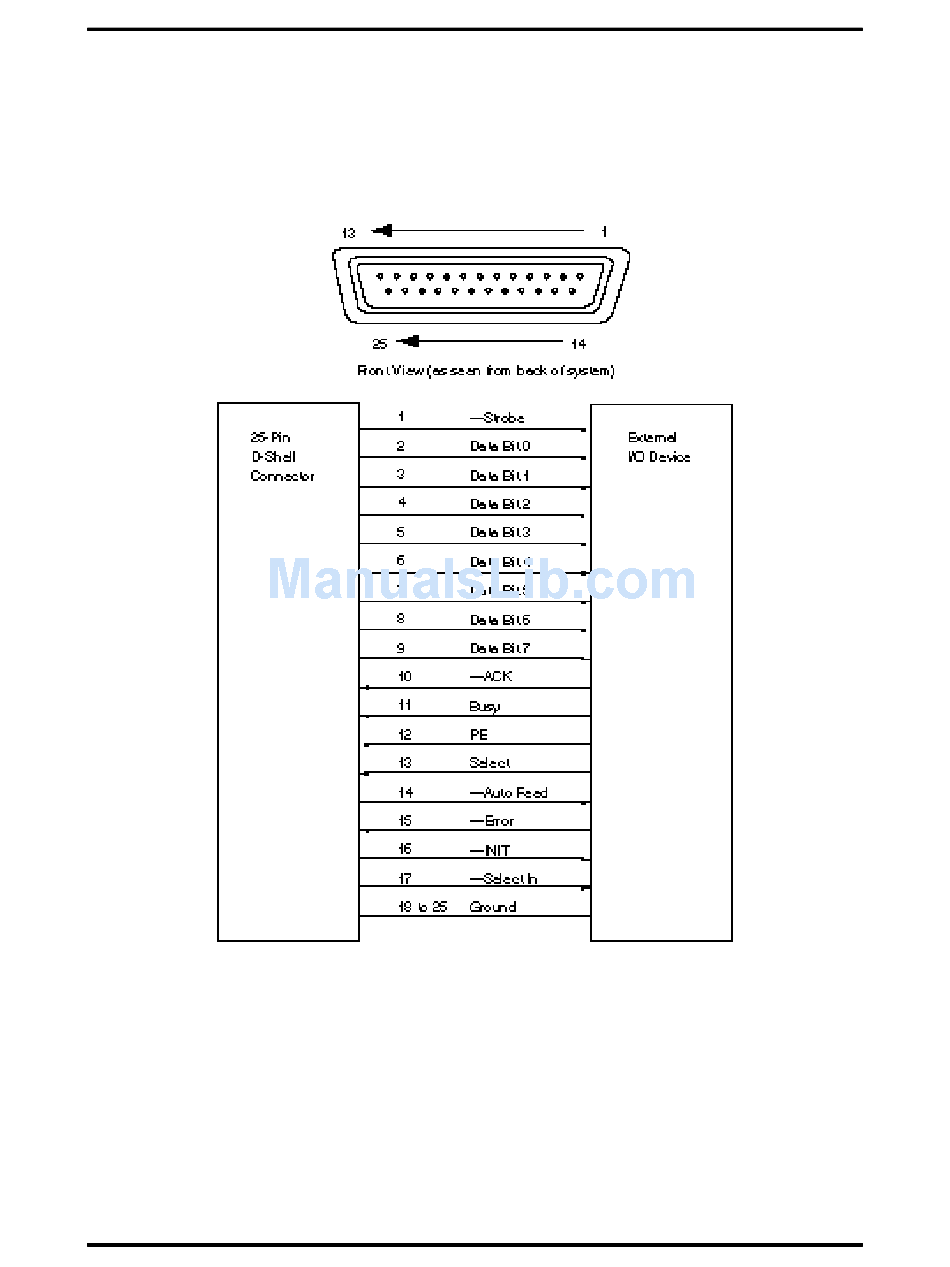

Figure Appendix A-3 Parallel Interface (P10)
