Preparing to remove the system board — desktop

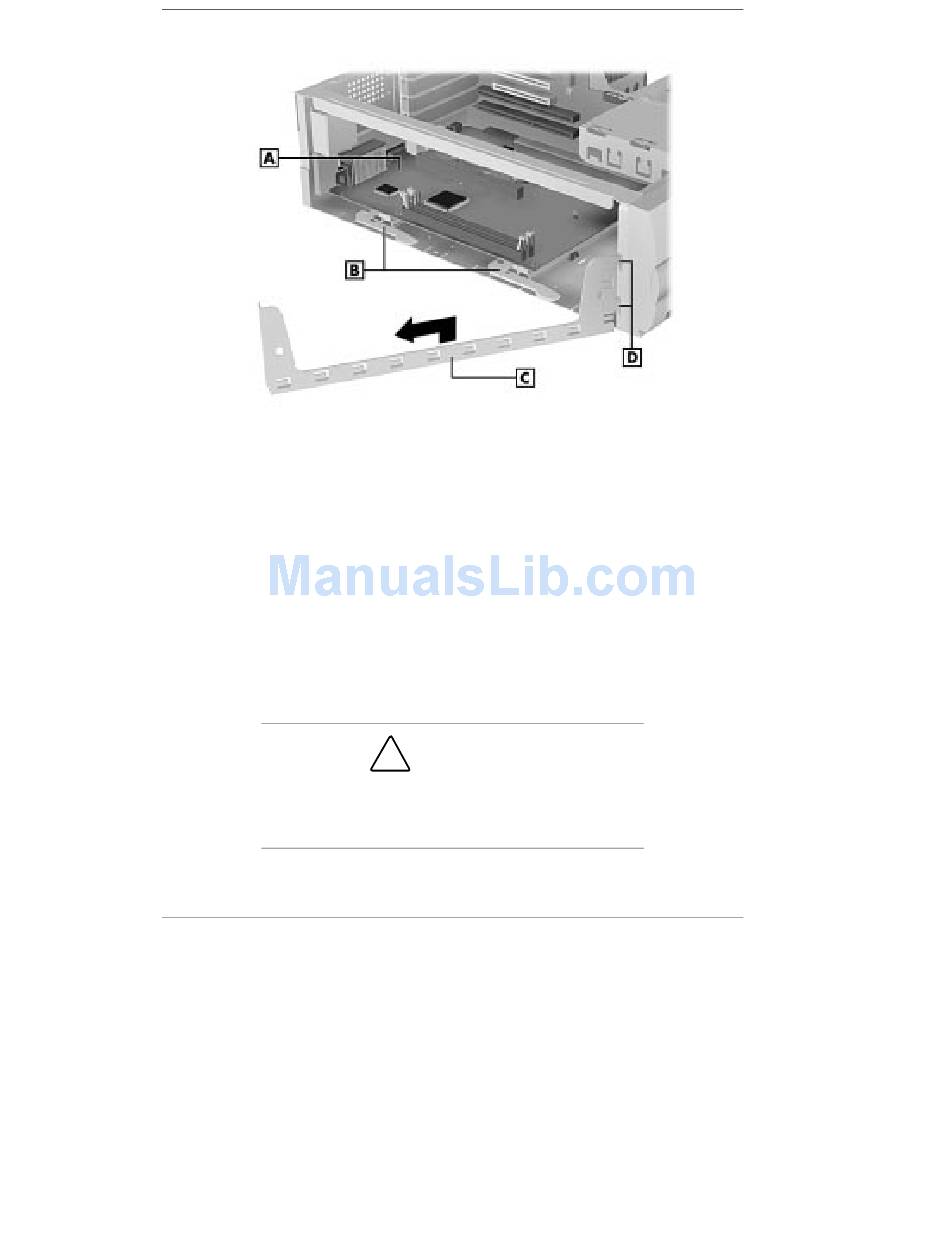

A – System Board
B – System Board Latches
6. Carefully slide the board the rest of the way out, taking
care not to lift the board before it is free of the chassis.
7. Set the board on an antistatic surface.
Replacing the System Board — Desktop
Take care when replacing the system board. Replacing the
board requires the use of the chassis latches. Incorrect use of
the chassis latches can damage the latches.
Take care in replacing the system board in your
computer. Incorrect use of the chassis latches
can damage the latches.
5-46 Installing Options
C – Side Bracket
D – Side Bracket Tabs
