To load a design from a FAT16 or FAT32 formatted flash disk or external hard drive, press MENU,
select "File", then "Udisk+" and then "Copy to Memory". Select the design in the File menu and
then select "Run". Various parameters can be adjusted using the console's menus and submenus,
including setting multiple origin points to engrave the design on your material four times in a single
session.

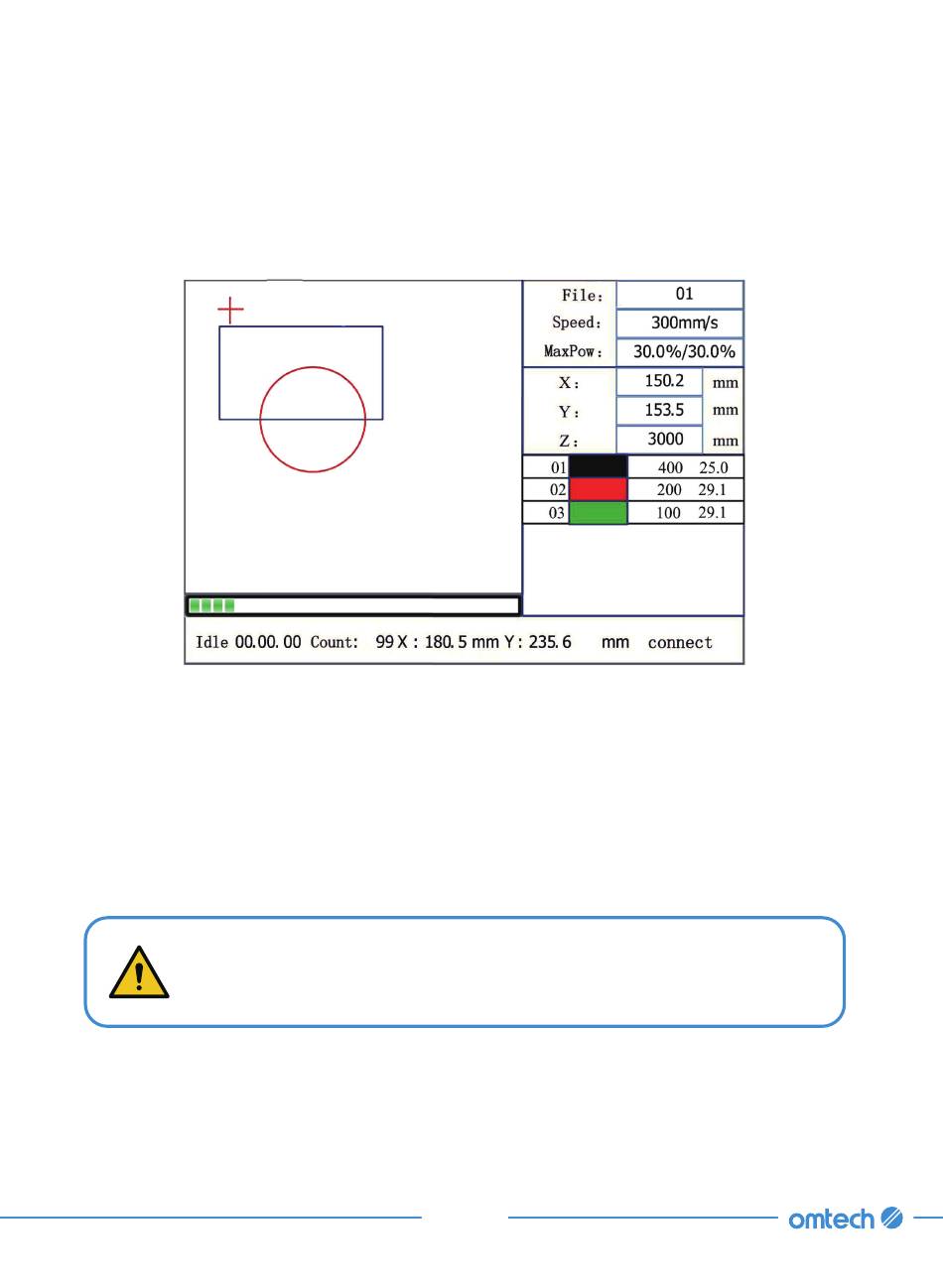

When running a design from the control console, this will be the main display. The design should
appear in the top left corner and its name and the current speed and power settings on the top
right. The position of the laser head relative to the workbed appears as the X (horizontal) and Y
(vertical) coordinates. The Z coordinate shows the elevation of the workbed itself. The U coordinate
can be configured to control rotary axes or an automatic feed if either is installed. Below them are
the layers with notes about their separate speeds in mm/s and their maximum power as a % of your
machine's rated power. The batch count on the lower left keeps track of the number of times the
current design has been engraved in a single session. Like the button says, press START/PAUSE to
start engraving your loaded pattern and to pause engraving when needed.
If there is ever an emergency situation such as a fire, do not use the control panel
to pause or stop the engraving. Hit the emergency stop button immediately.
