3.5 Installing the Exhaust System

An exhaust system—typically an exhaust fan and a dedicated air purifier (not included)—MUST be
used to remove the dust and gases produced by the engraving process. This machine is equipped
with one duct fan inside, you need to install the rest as follows.
To install the exhaust system:

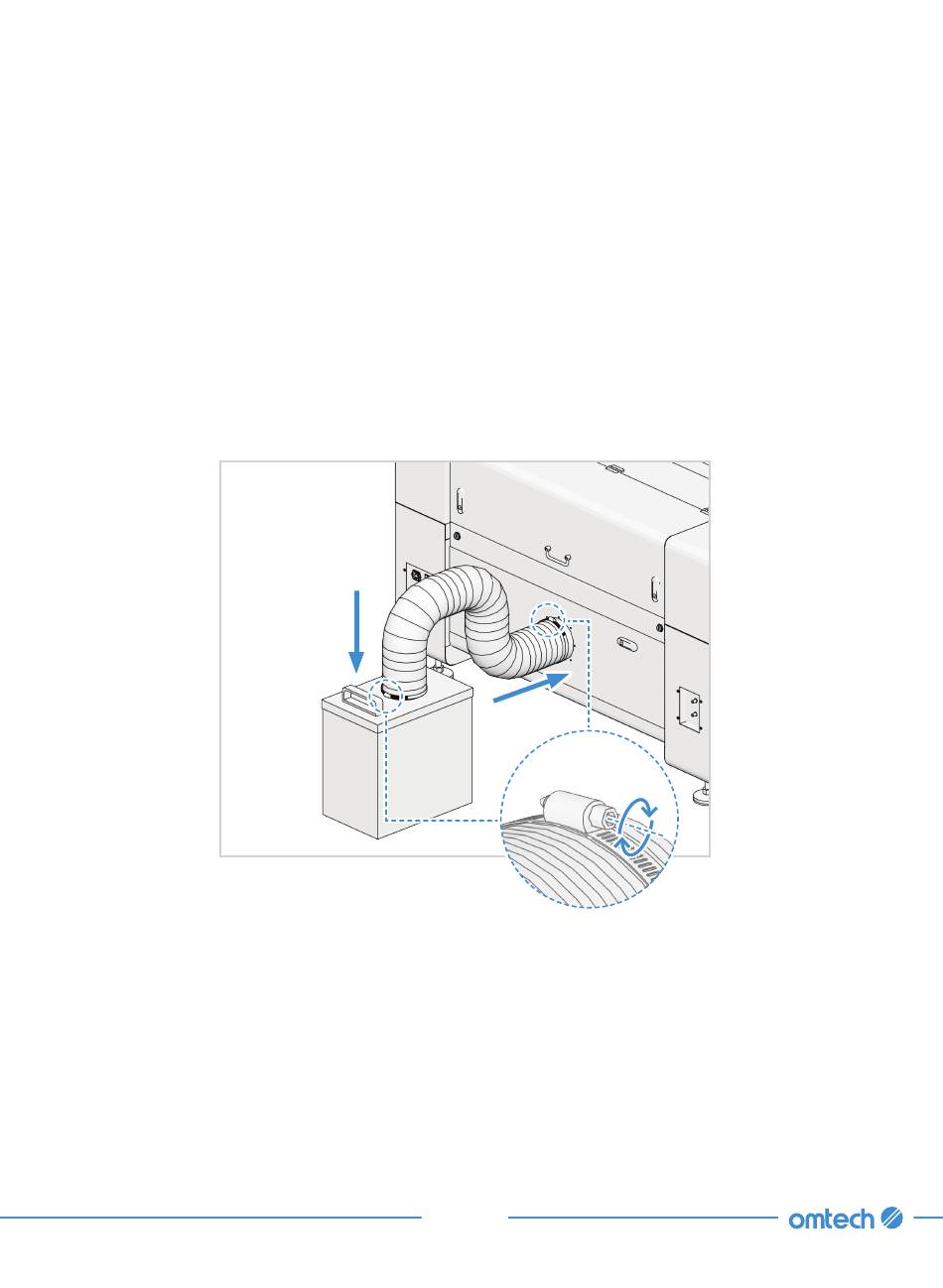

1. Firmly connect the engraver's exhaust vent to the provided exhaust pipe by using one pipe clamp.
2. Connect the other end of the pipe to a dedicated air purifier by using the other pipe clamp. The
pipe can be expanded to a full length of about 5 feet (1.5 m).
3. Plug in the dedicated air purifier.
