2 Introduction

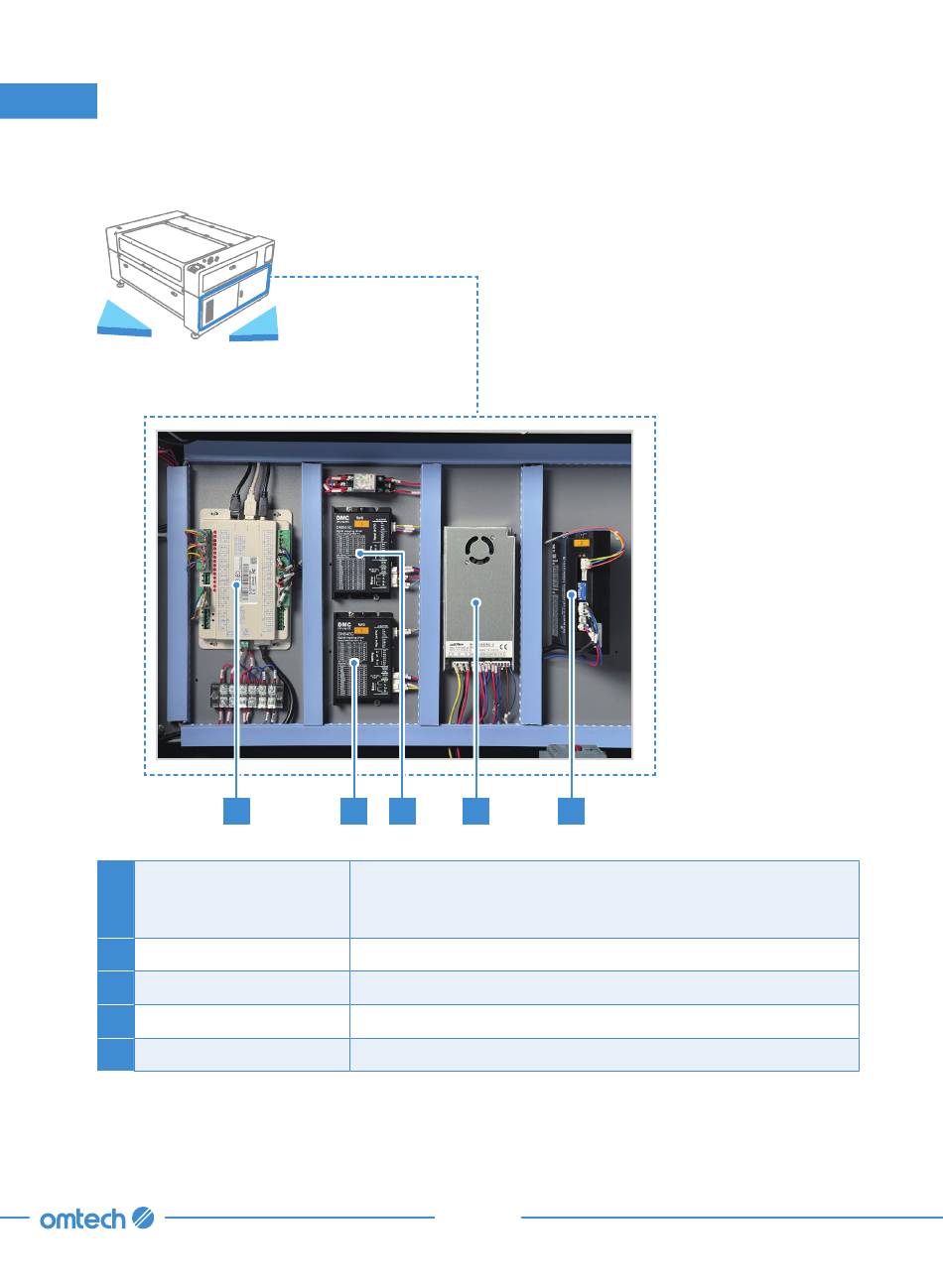

2.4.8 Electronics Bay

Front
Right
A
A Mainboard
B Y-Axis Driver
C X-Axis Driver
D Control Power Supply
E Z-Axis Driver
B C D
This circuit board controls the engraving process, responding
to commands from your engraving software or the machine's
control panel.
This device moves the X rail along the Y rail.
This device moves the laser head along the X rail.
This device powers the machine's control panel.
This device moves the workbed up and down.
23
E
