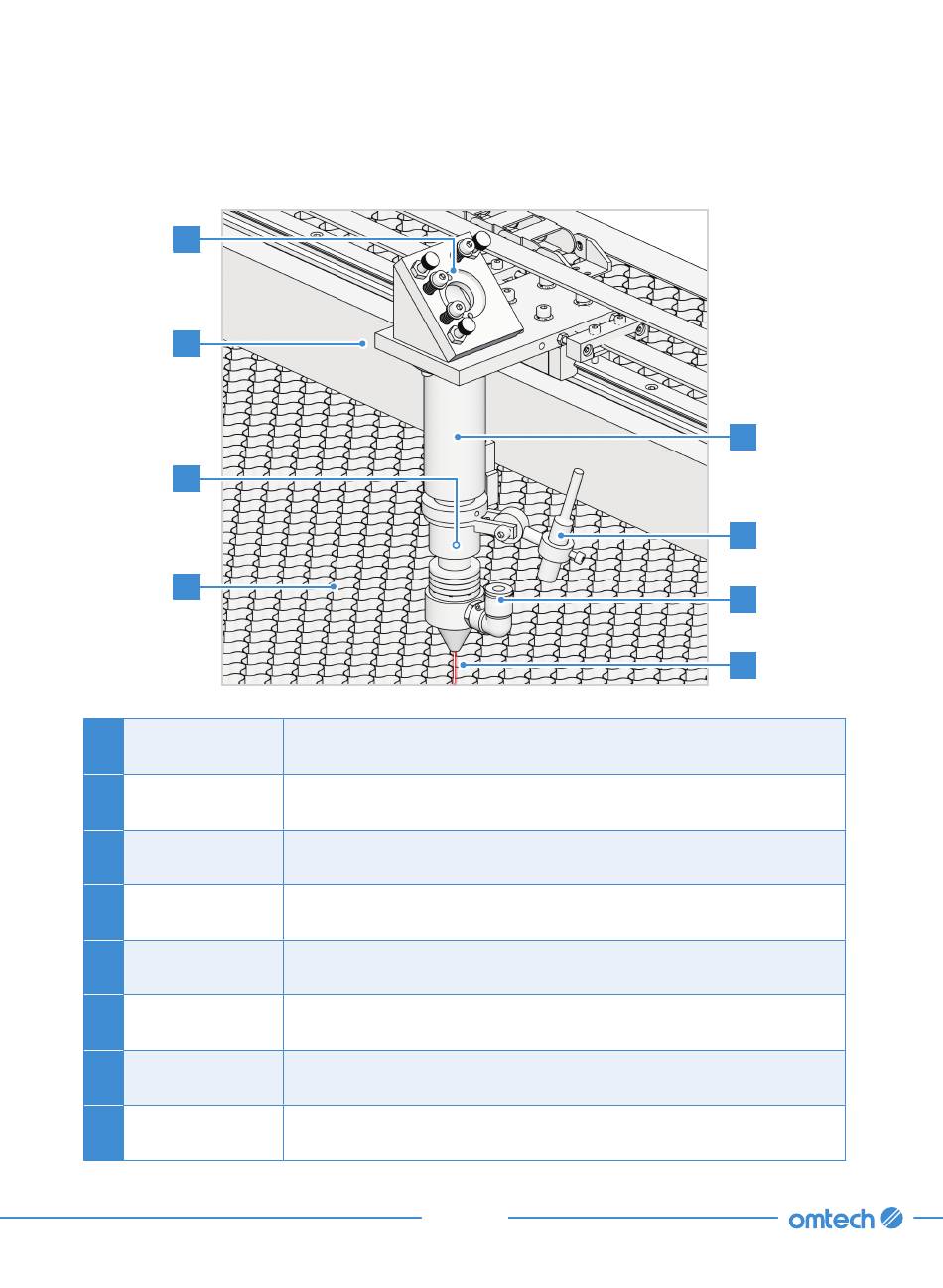

2.4.4 Laser Head

B
A
E
H
A X-Axis Rail
B 3rd Mirror
C Autofocus Sensor
D Red Dot Pointer
Focus Lens
E
F Air Assist
G Laser
H Workbed
This rail moves along the Y axis, with its movement controlled by limit
switches.
This adjustable-angle mirror transfers the laser from the 2nd mirror to
the focus lens.
This sensor is to properly focus the laser by maintaining the appropriate
distance between the material surface and the laser head.
This device helps you see the exact position of the invisible engraving
laser.
This 20 mm lens directs and focuses the laser beam to its point of
contact with the engraving material.
This device blows pressurized air to kill sparks and blow away gas and
debris as you engrave.
The engraving laser itself is invisible but highly dangerous. Avoid any
direct exposure to your skin or eyes.
The workbed can be moved up or down to get the perfect focus for
the material.
