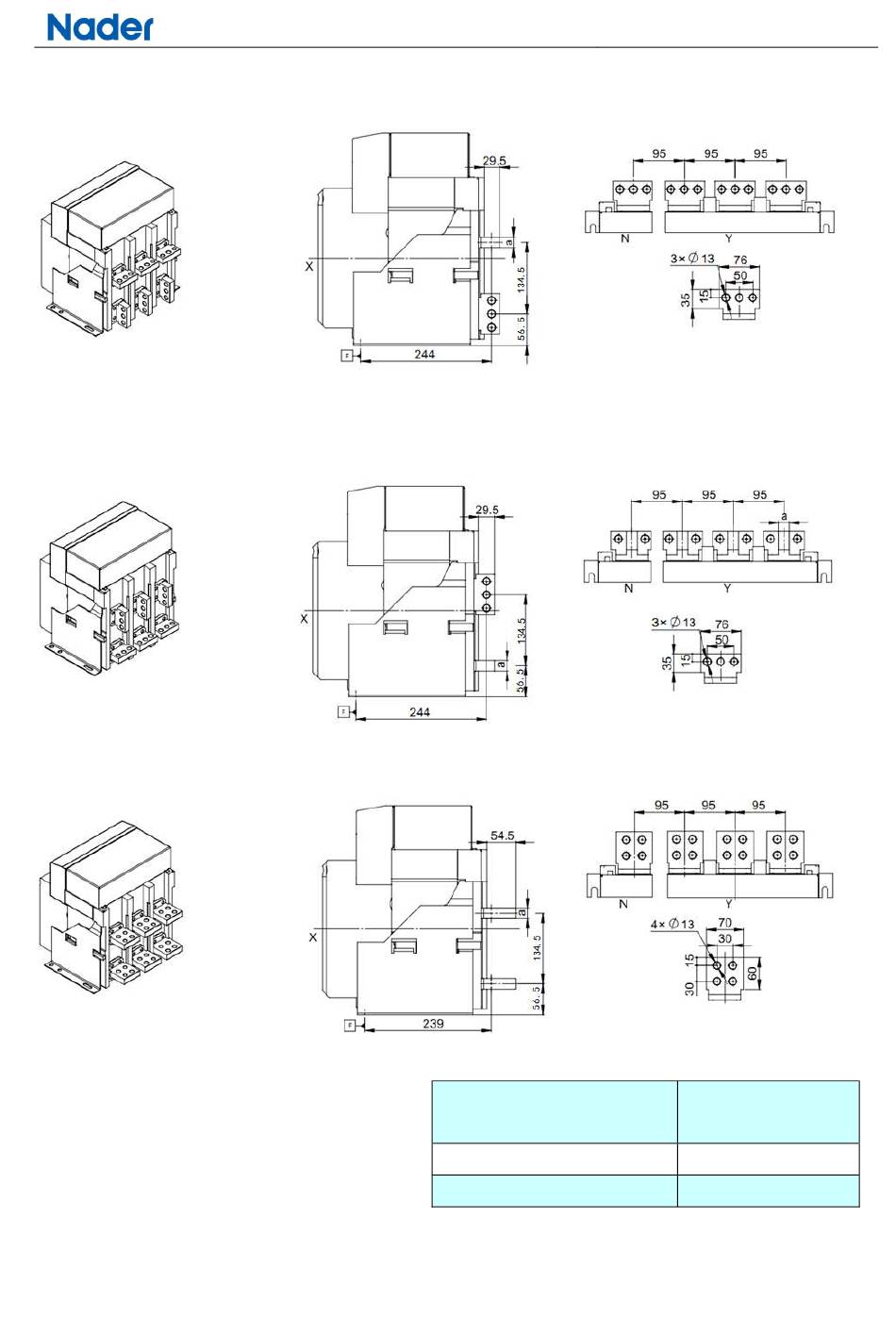

nader NDW3 Series Manual page 97

Mixed Wiring (Upper Horizontal, Lower Vertical) Detail
Mixed Wiring (Upper Vertical, Lower Horizontal) Detail
Horizontal extension wiring
Note: For the circuit breaker, X and Y are the
symmetric axes of the front cover;
Internal & confidential file
File No.:NDT2920202
第 97 页 共 149 页
Detail
Rated current
630A, 800A, 1000A, 1250A
1600A, 2000A, 2500A
File Version:4
Size of busbar a
(mm)
15
20
