nader NDW3 Series Manual page 53

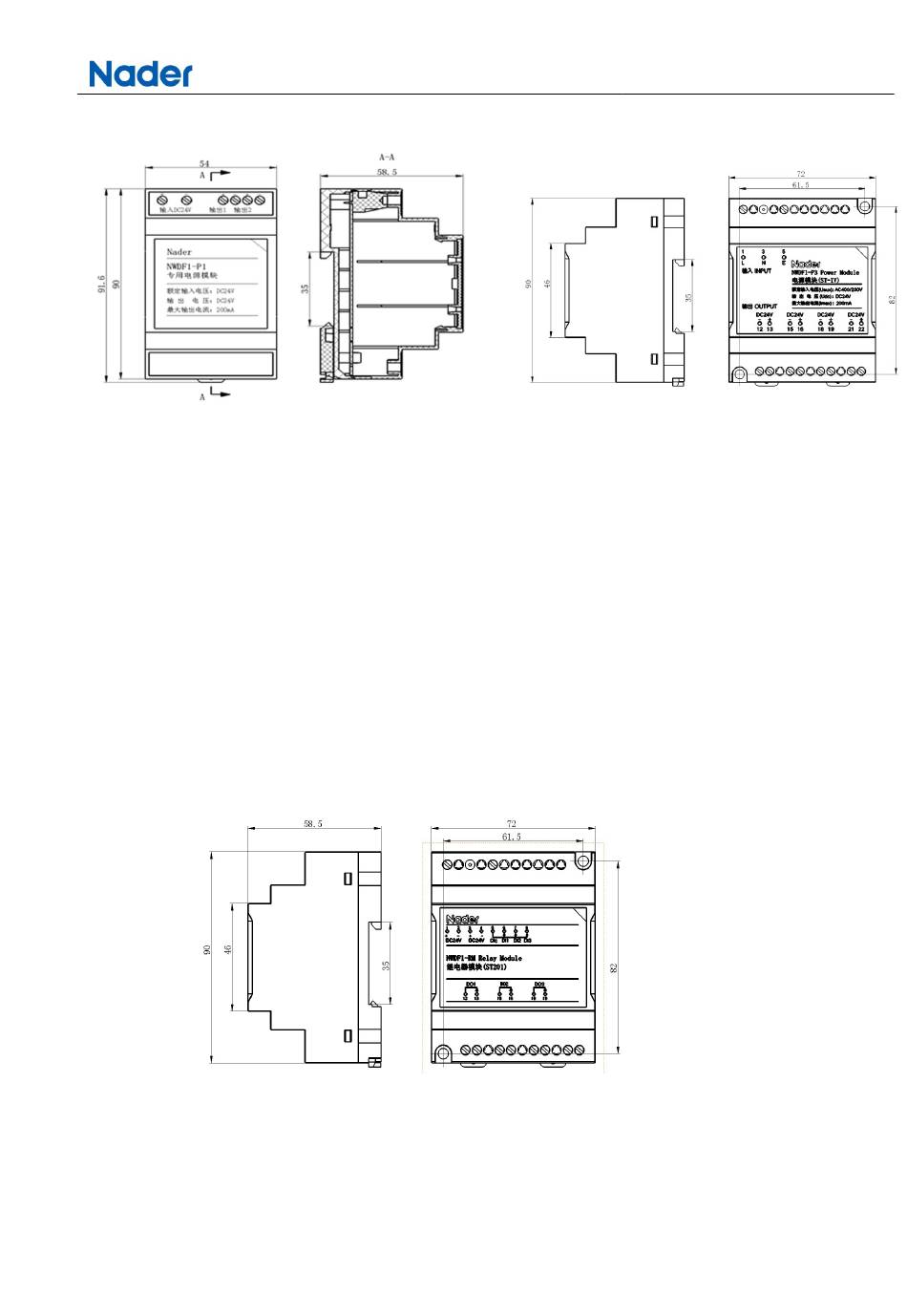

◆ See the figure below for outline and installation dimensions.
Outline and Installation Dimension
Diagram of Power Supply Module
NWDF1-P1
4.4.4
◆ Function: Signal unit of controller is commonly used in fault alarm or indication, etc. When the
circuit breaker is opened, closed or when the load capacity is larger, the control should be
carried out after conversion through this module. Match with the power supply module
NWDF1 to achieve the "four remotes" function;
◆ Contact capacity: 10A/AC250V, 10A/DC24V;
◆ Appearance and installation: To be used with the controller power supply module ST-IV, see the
installation diagram of relay module.
Installation Diagram of Relay Module
Internal & confidential file
File No.:NDT2920202
第 53 页 共 149 页
File Version:4
Outline and Installation Dimension Diagram
of Power Supply Module NWDF1-P3/P5
