nader NDW3 Series Manual page 109

File No.:NDT2920202 File Version:4

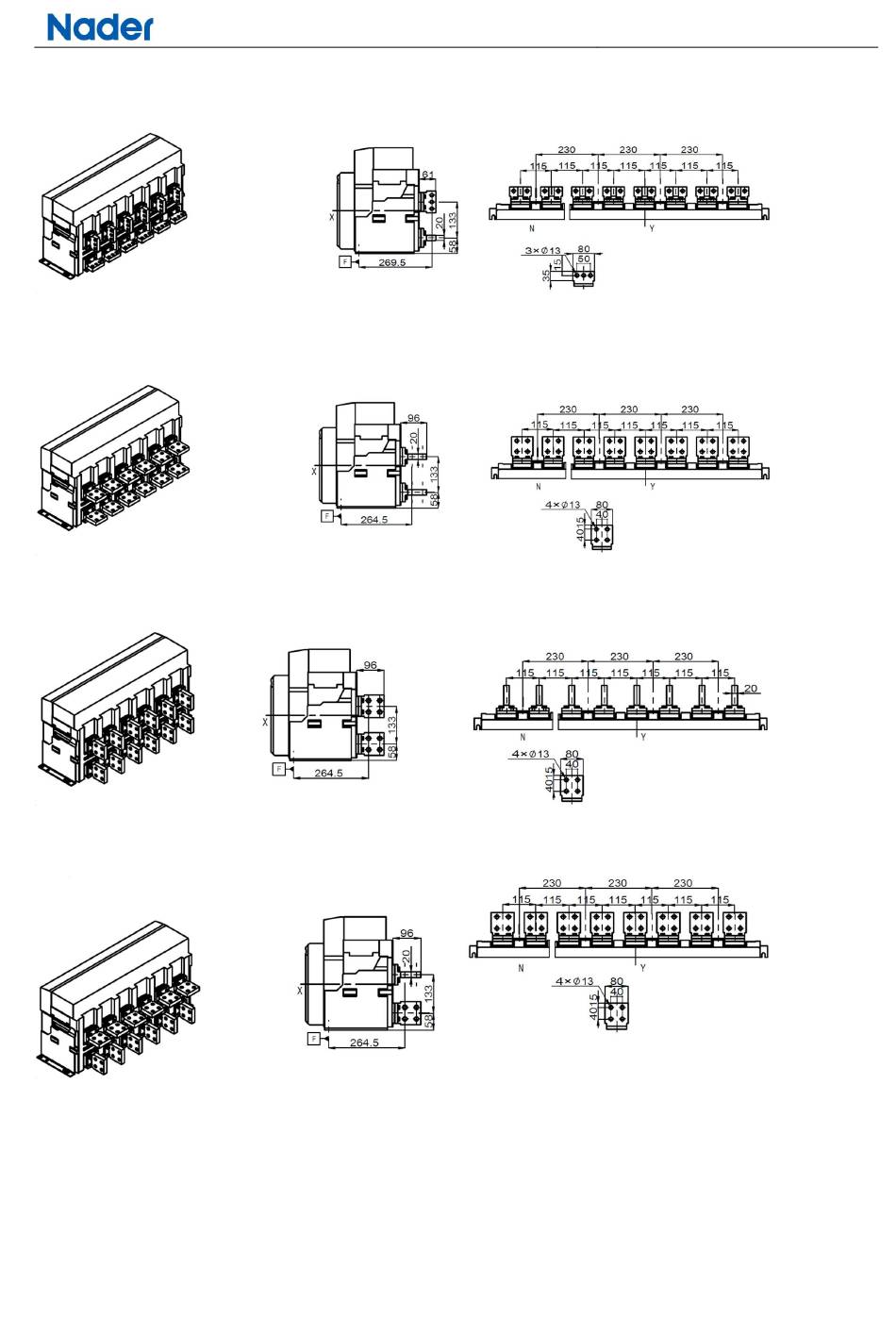

Mixed Wiring (Upper Vertical, Lower Horizontal) Detail
4000A-5000A horizontal extended, vertical extended, mixed extended wiring
Horizontal extension wiring Detail
Vertical extension wiring Detail
Mixed Wiring (Upper Horizontal, Lower Vertical) Detail
Note: For the circuit breaker, X and Y are the symmetric axes of the front cover;
