2） Flexible transformer
★ Flexible transformer code
Transformer code
NR1
NR2
NR3

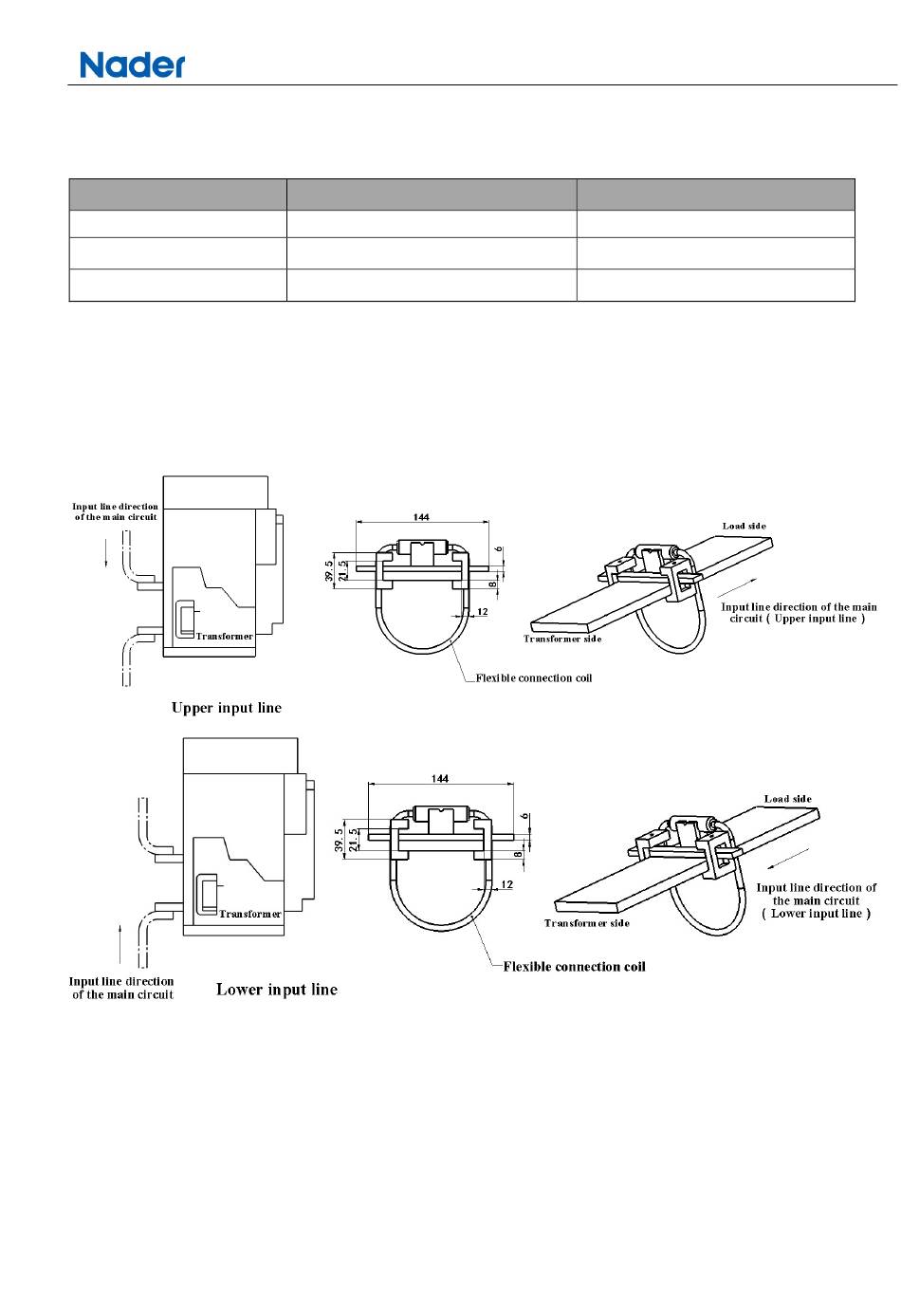

★ See the figure below for outline and installation dimensions of the flexible transformer.
★ Pay attention to the direction for use: The inlet wire direction is shown in the figure.
★ Install the flexible transformer on the busbar as shown in the figure, and connect the transformer
conduction to the secondary circuit: Red to No. 25 and green to No. 26.
Internal & confidential file
File No.:NDT2920202
Soft cable circumference
280mm
370mm
450mm
Standard configuration of the conductor is 3m.
第 50 页 共 149 页
File Version:4
Applicable current range
200A-800A
1000A-2000A
1000A-7500A
