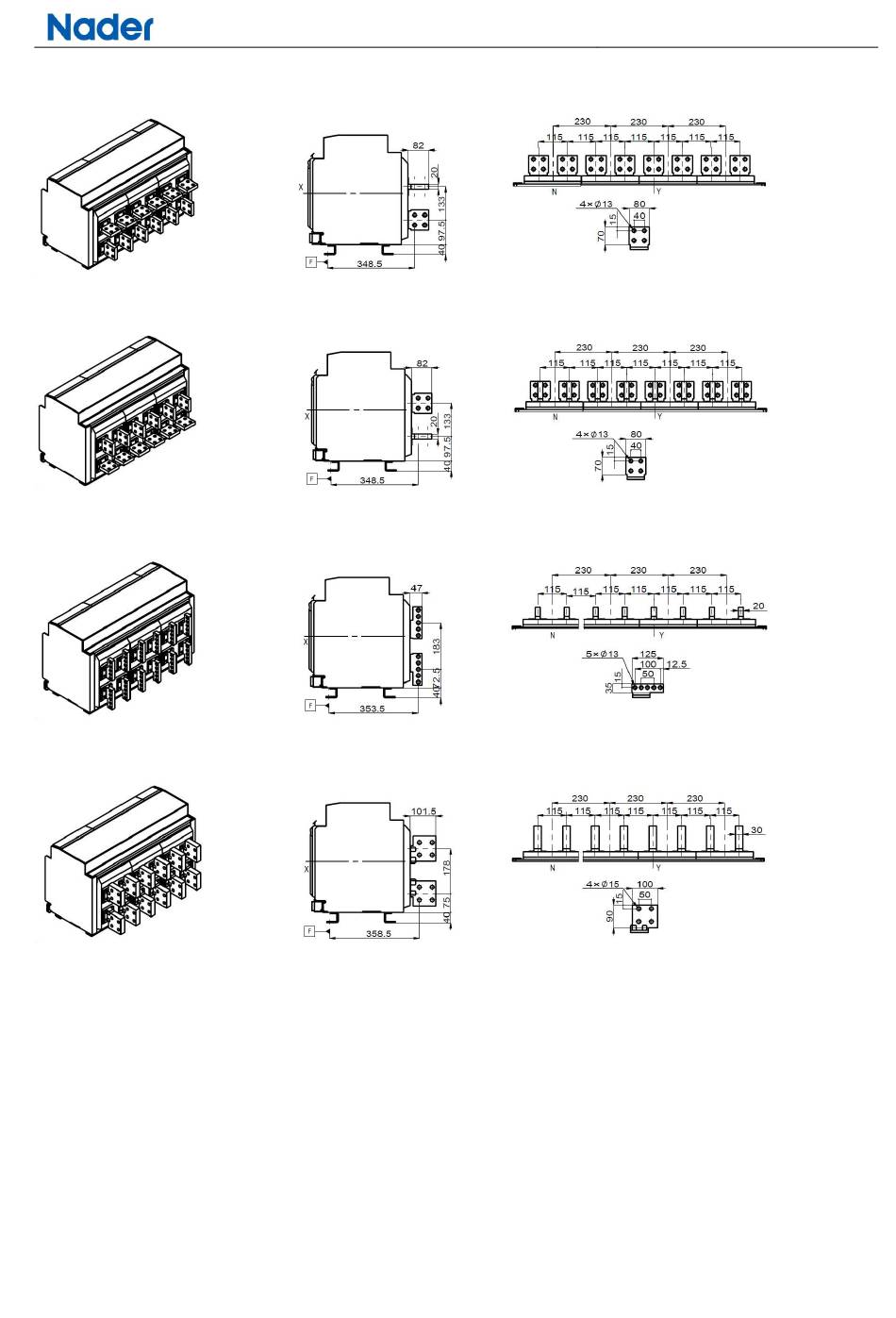

Mixed Wiring (Upper Horizontal, Lower Vertical) Detail
Mixed Wiring (Upper Vertical, Lower Horizontal) Detail
6300A vertical wiring
Detail
6300A extended vertical wiring
Detail
Note: For the circuit breaker, X and Y are the symmetric axes of the front cover;
