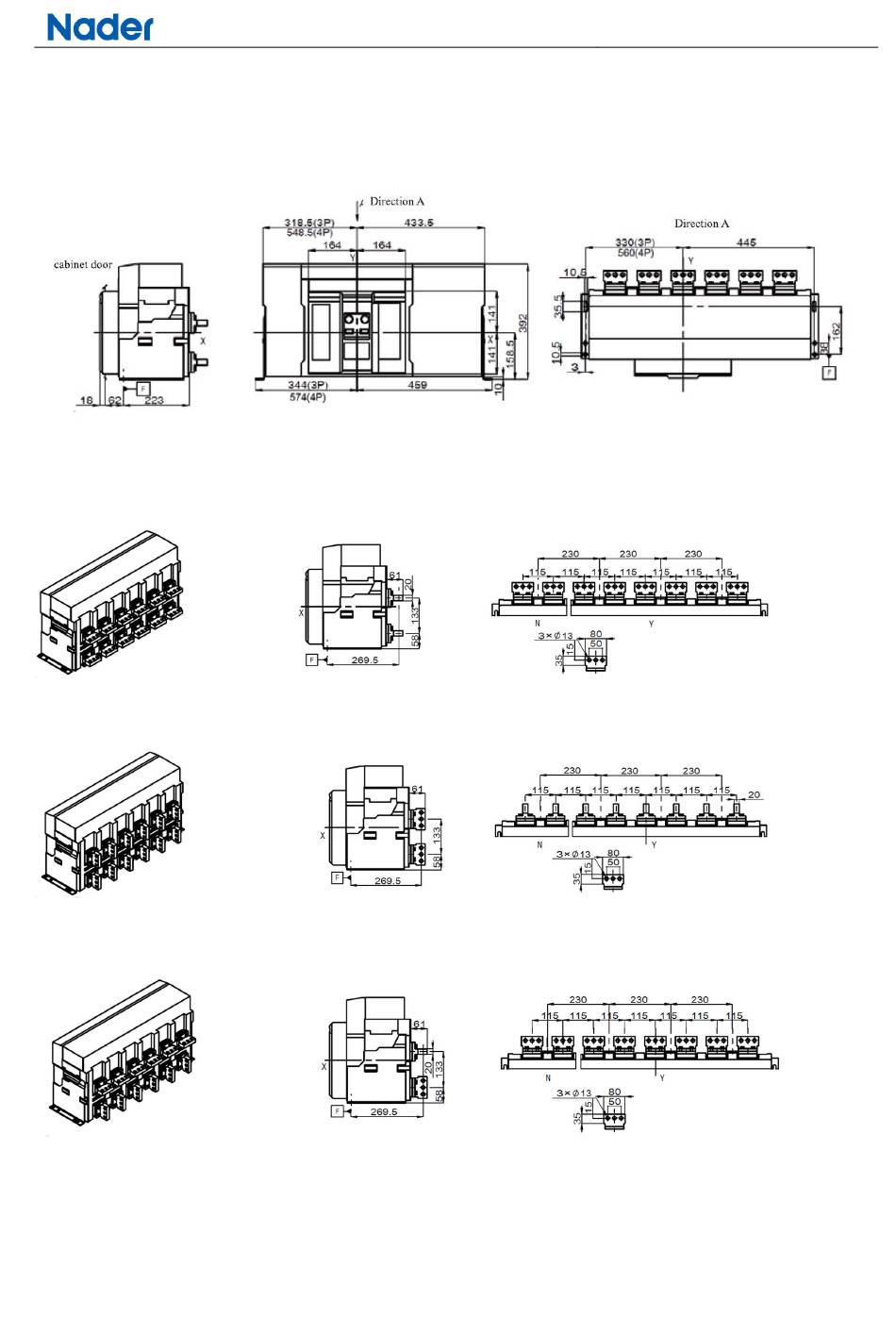

6.4 NDW3-6300
NDW3-6300 fixed type (unit: mm)
Dimensions Fixed Details
4000A-5000A horizontal, vertical, mixed wiring
Horizontal Wiring Detail
Vertical Wiring Detail
Mixed Wiring (Upper Horizontal, Lower Vertical) Detail
Note: For the circuit breaker, X and Y are the symmetric axes of the front cover;
