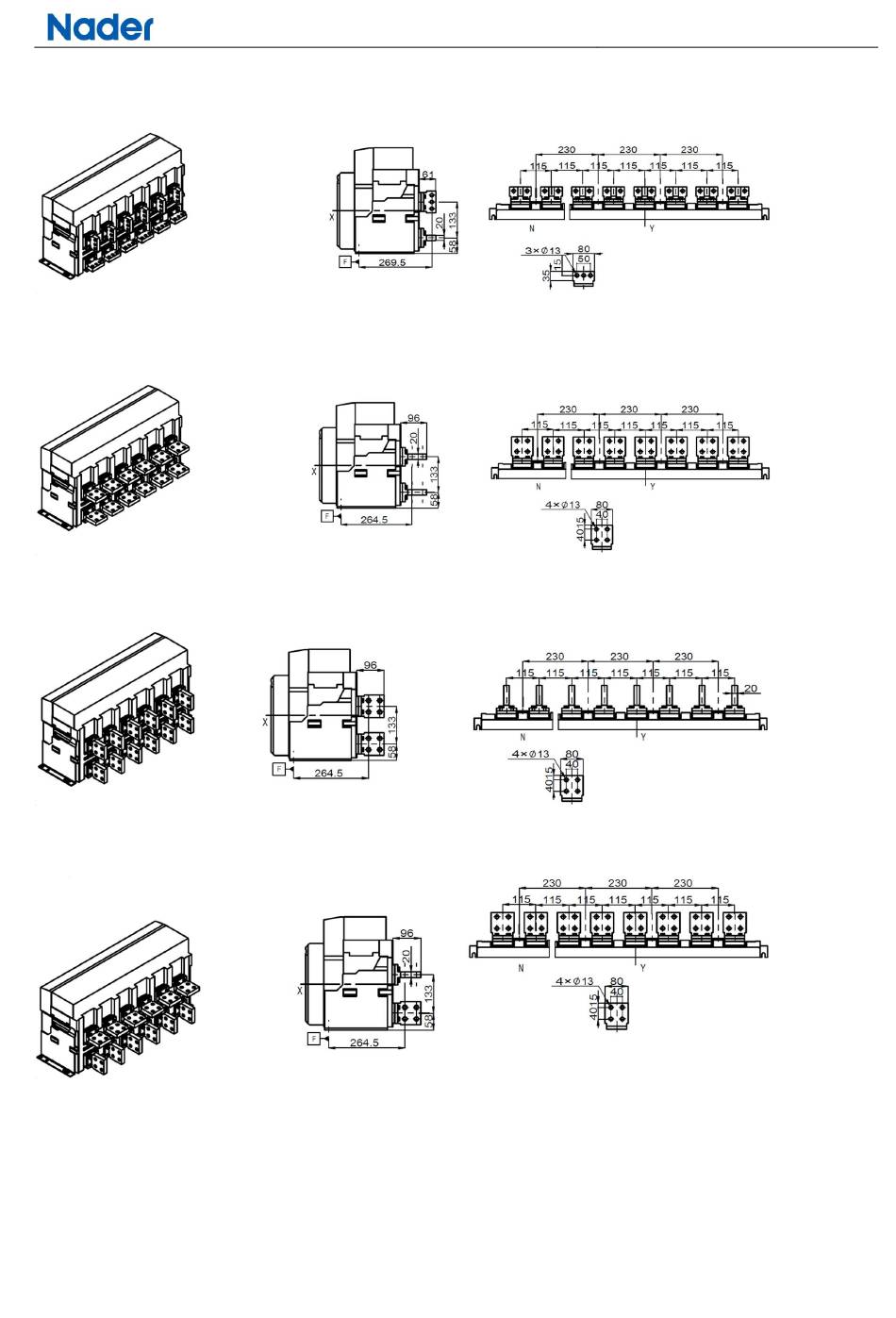

Mixed Wiring (Upper Vertical, Lower Horizontal)
4000A-5000A horizontal extended, vertical extended, mixed extended wiring
Horizontal extension wiring
Vertical extension wiring
Mixed Wiring (Upper Horizontal, Lower Vertical)
Note: For the circuit breaker, X and Y are the symmetric axes of the front cover;
