NSD Absocoder NCV-220HFEM2R Specifications & Instruction Manual page 9

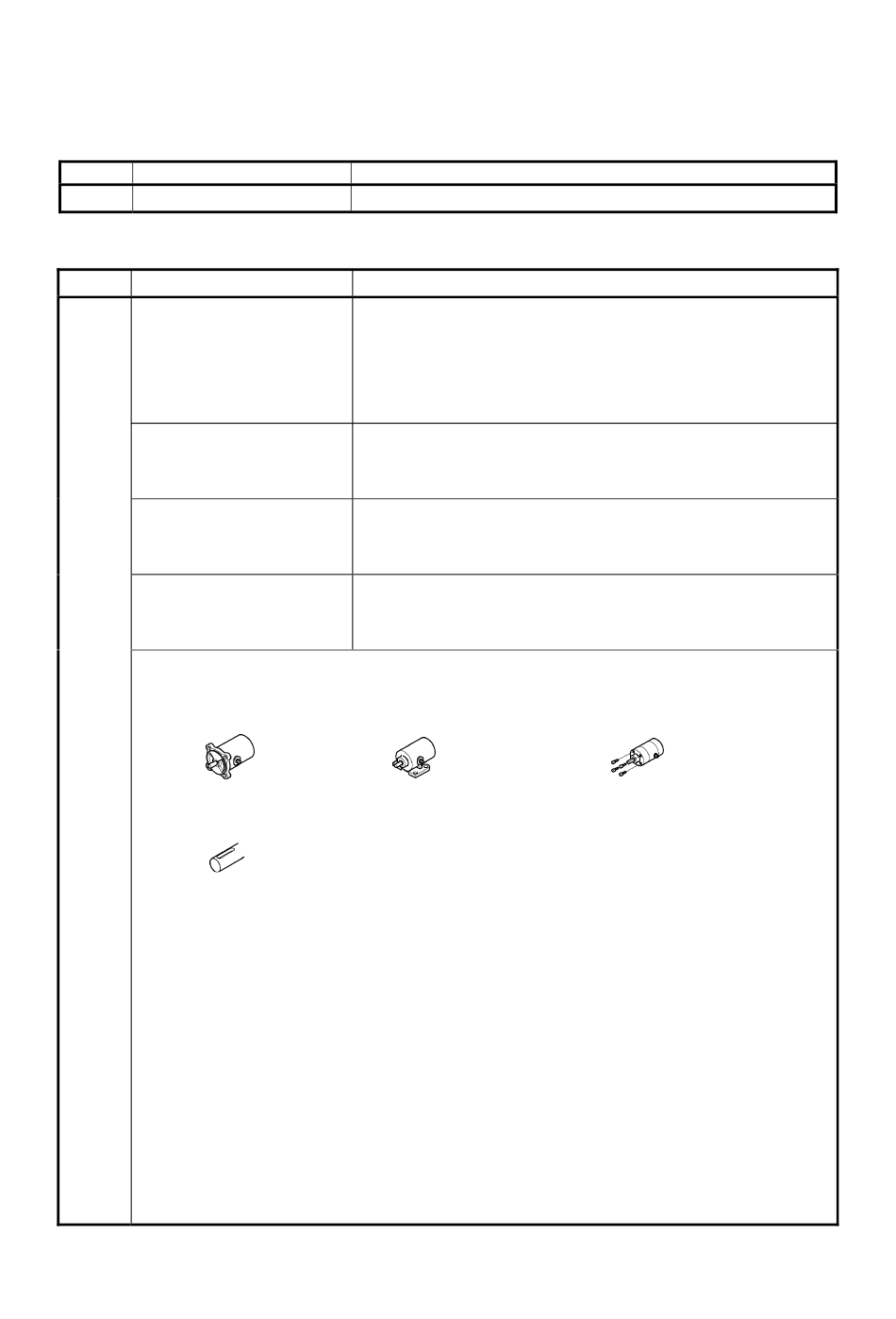

●Model List
◆ Converter
No.
(1) NCV-220HFEM2R
◆ ABSOCODER sensor
No.
MRE-[1]SP061FK[3]
MRE-[1]SP074[2]K[3][L][-G]
MRE-[1]SP097[2]K[3][L][-G]
MRE-[1]SP101[2]K[3][L][-G]
[2]: Mounting format
F: Flange-mount type
(2)
K: Input shaft (sunk key)
[3]: Connector type
B: Standard connector for the NSD special cable
(NJW-2012PM8, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
P: Large connector for JKPEV-S cable
(NWPC-4012-Ad12, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
R: Crimping terminals for JKPEV-S cable and the NSD special cable (R1.25-4)
[L]: Interconnecting sensor cable length (m)
2: 2m, 5: 5m, 10: 10m, 20: 20m
[-G]: Silicon oil
-G :Silicon oil injected
no code: no oil injected
Model
For multi-turn type ABSOCODER sensor
Model
General environment type
Mounting format: Flange-mount type
With Interconnecting cable 2m
[1]: Total number of turns
Compact size heavy duty type, SUS
[1]: Total number of turns
Heavy duty type, spheroidal graphite iron castings
[1]: Total number of turns
32, G64, G128, G160, G256, G320, G512, G1280, G2048
Heavy duty type, SUS
[1]: Total number of turns
32, G64, G128, G160, G256, G320, G512, G1280, G2048, G2560
L: Base-mount type
Descriptions
Descriptions
32, G64, G128, G160, G256, G320
32, G64, G128, G160, G256, G320
4
M: Face-mount type
(Only available for MRE-SP074)
