2. MODEL SELECTION WHEN ORDERING
The following figure indicates the connection configuration of NCV-220. Before ordering, refer to the connection
configuration and model list. Please prepare by customer except 1 to 7 in the connection configuration.

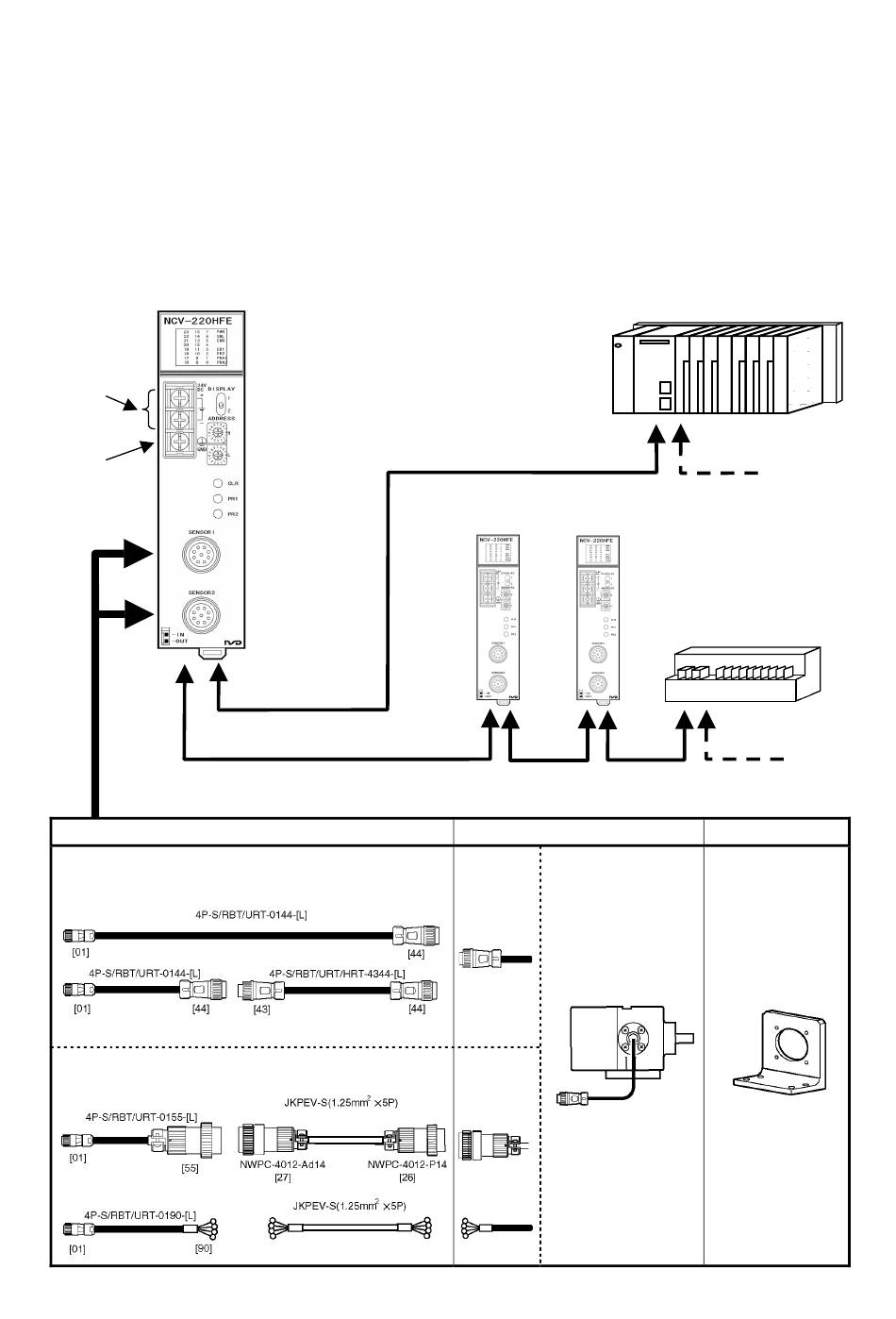

● Connection configuration
(1) Converter
Power
Supply
+24V
0V
Ground
(3) to (6) Extension sensor cable
-In the case of using the NSD special cable
(3)
-In the case of using the commercially available cable
(5)
(6)
(Manufacturer: Fuji Electric Co., Ltd.)
E-SX bus
E-SX bus
(3)
(4)
E-SX bus cable
Converter, etc... Converter, etc...
E-SX bus
(2) ABSOCODER sensor
Connector
type
MRE-[ ]SP061
B MRE-[ ]SP074
MRE-[ ]SP097
MRE-[ ]SP101
P
R
3
Programmable controller
"MICREX-SX Series"
(Manufacturer: Fuji Electric Co., Ltd.)
I/O module etc...
(Manufacturer: Fuji Electric
Co., Ltd.)
E-SX bus
(7) Option
RB-01
L type flange for
MRE-[ ]SP061
