NSD Absocoder NCV-220HFEM2R Specifications & Instruction Manual page 37

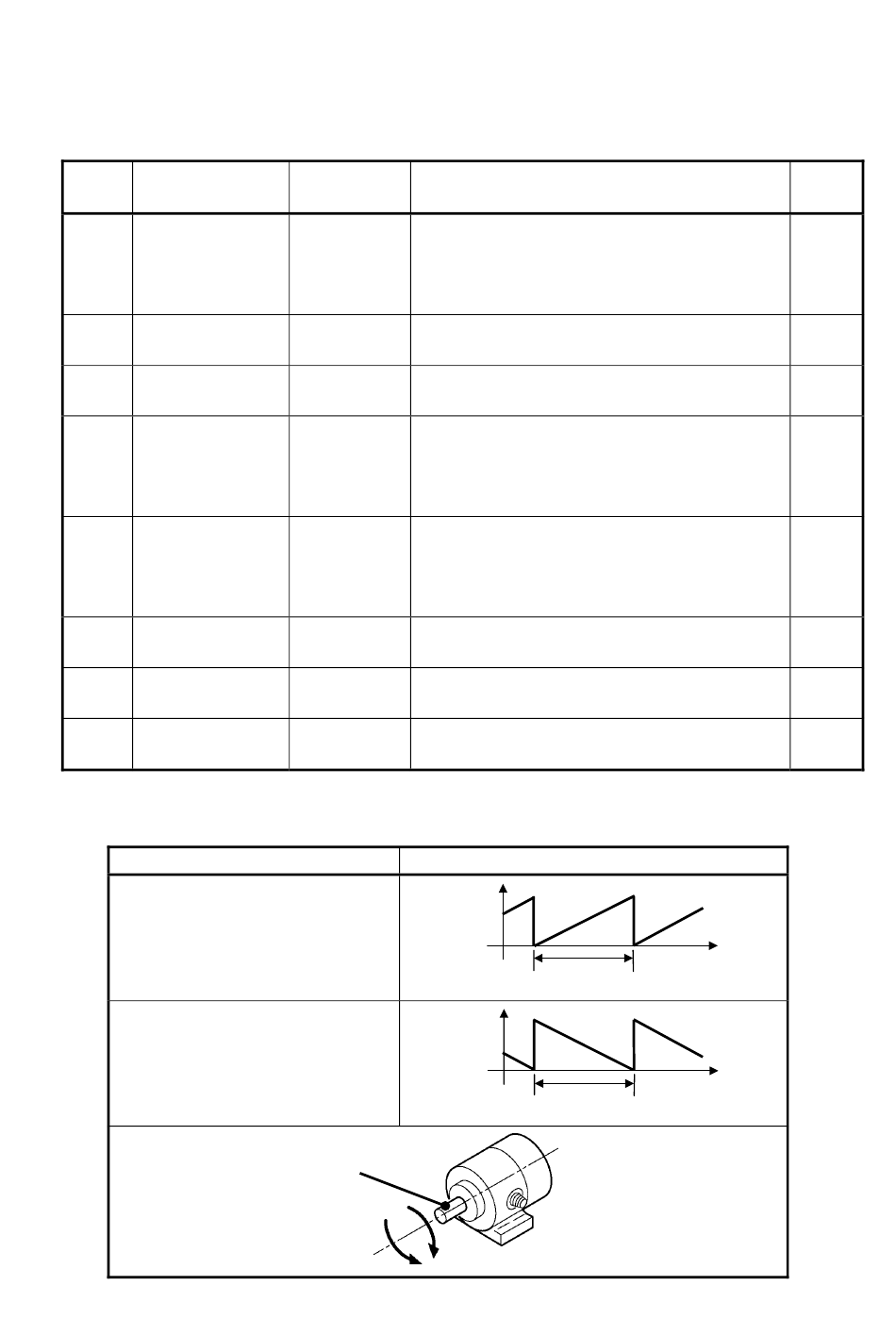

(7) Parameter Switch (rear face of the converter)
The switch status is set as the parameter when the power supply turns ON.
The operation isn't influenced even though the switch setting is changed during the operation.
SW No Parameter Name
Axis-1
1
(enabled / disabled)
Axis-1 position data
2
increase direction
3 Reserved
4 Current position setting
Axis-2
5
(enabled / disabled)
Axis-2 position data
6
increase direction
7 Reserved
8 Reserved
*1: The position data increases or decreases according to the ABSOCODER sensor's shaft rotative direction.
Switch setting
OFF: CW direction
The position data value will increase when
the shaft turns in the clockwise direction as
viewed from the shaft end.
ON :CCW direction
The position data value will increase when
the shaft turns in the counterclockwise
direction as viewed from the shaft end.
Switch setting
When this switch is set to the ON position, error will not
ON : disabled occur even if the axis-1 sensor is not connected.
OFF : enabled The axis-1 position data and the axis-1 status of the input
data are "0" when turning ON.
ON : CCW Specify the direction in which the axis-1 position data should
OFF : CW increase. *1
Keep this switch in the OFF position. The correct operation
Fixed at OFF
cannot be guaranteed if this switch is set to the ON position.
The current position setting function is enabled when the
ON : enabled
setting is ON.
OFF: disabled The position data of no current position setting (raw sensor
data) is stored when the setting is OFF.
When this switch is set to the ON position, error will not
ON : disabled occur even if the axis-2 sensor is not connected.
OFF : enabled The axis-2 position data and the axis-2 status of the input
data are "0" when turning ON.
ON : CCW Specify the direction in which the axis-2 position data should
OFF: CW increase. *1
Keep this switch in the OFF position. The correct operation
Fixed at OFF
cannot be guaranteed if this switch is set to the ON position.
Keep this switch in the OFF position. The correct operation
Fixed at OFF
cannot be guaranteed if this switch is set to the ON position.
Position data
Position data
Shaft
CCW
CW
32
Description
Position data transition
CW direction
Position data output range
CW direction
Position data output range
Factory
setting
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
