6-3. Connection of the Programmable Controller
A connection of the converter and programmable controller or modules (I/O or etc...) manufactured by Fuji Electric
Co., Ltd. is described in this section.
Uses the E-XS bus cable for the connection between the converter and the programmable controller or modules (I/O
or etc...).
● Between the converter and the programmable controller should be connected by either method in the below.
- IN side of the converter should be connected to OUT side of the programmable controller.
- OUT side of the converter should be connected to IN side of the programmable controller.
● Between the converter and modules (I/O or etc...) should be connected by either method in the below.
- IN side of the converter should be connected to OUT side of the module.
- OUT side of the converter should be connected to IN side of the module.

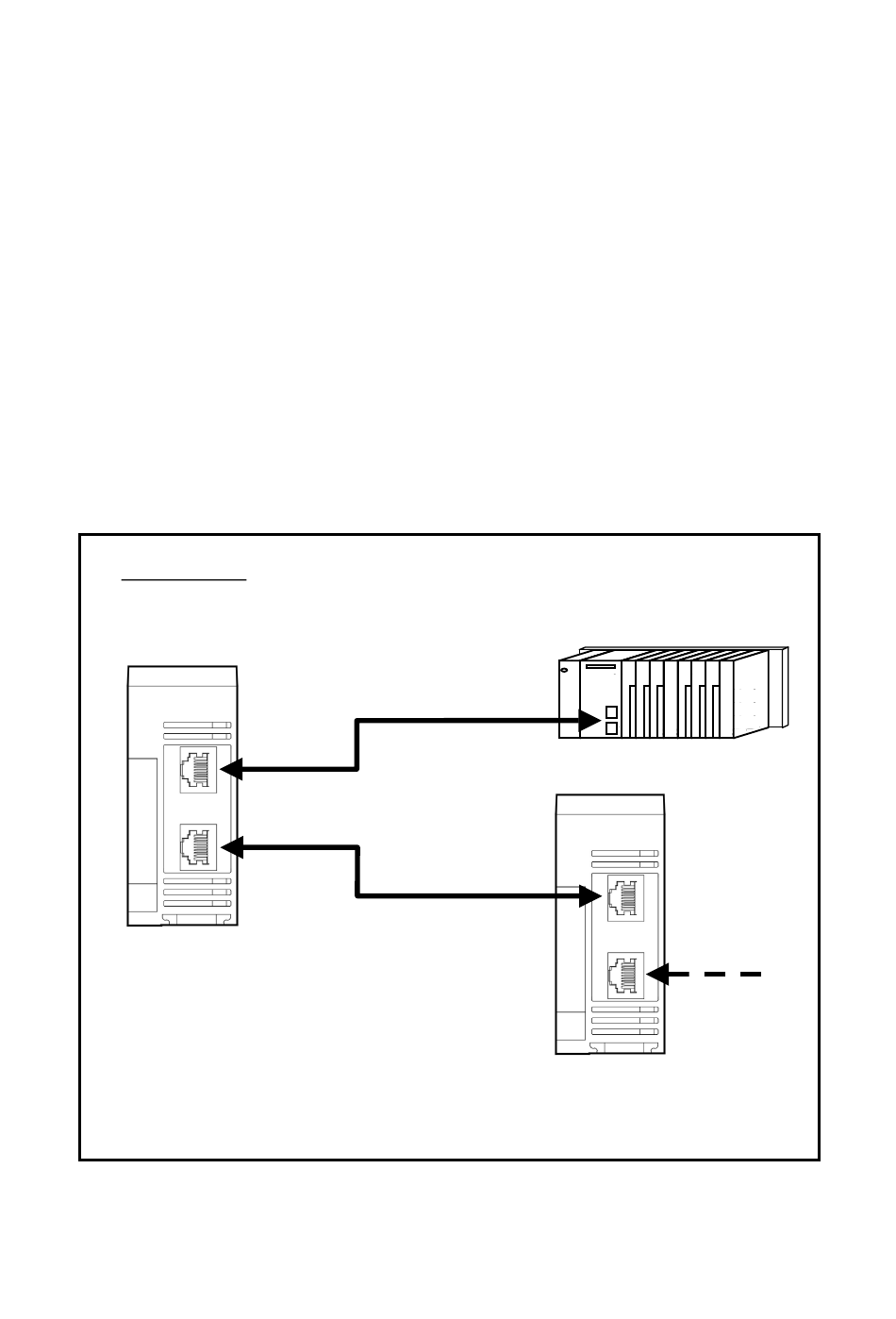

Connection example
Bottom of
the converter
E-SX bus cable
Manufacturer: Fuji Electric Co., Ltd.
IN side
OUT side
E-SX bus cable
Manufacturer: Fuji Electric Co., Ltd.
Programmable controller "MICREX-SX Series"
Manufacturer: Fuji Electric Co., Ltd.
OUT side
IN side
Converter, I/O module manufactured by Fuji Electric
Co., Ltd., or device which is compatible with E-SX
bus communication
28
OUT side
