Transmitter Instruction
This system is compatible with 2.4GHz 2A-BS protocol and consists of FS-FMS-MG6-BS transmitter and
FS-FMS-R6D-ESC-BS receiver. It supports two-way transmission and outputs six channels. The transmitter is
lightweight and compact in design, comfortable and ergonomic, it supports ESC parameters setting and compati-
ble with RC cars.
本系统采用 2.4GHz 2A-BS 协议，由 FS-FMS-MG6-BS 发射机和 FS-FMS-R6D-ESC-BS 接收机组成。支持双向传输 , 输出六
通道，外观轻巧，手感舒适，符合人体工程学，支持通过发射机设置电调参数，适配模型车使用。

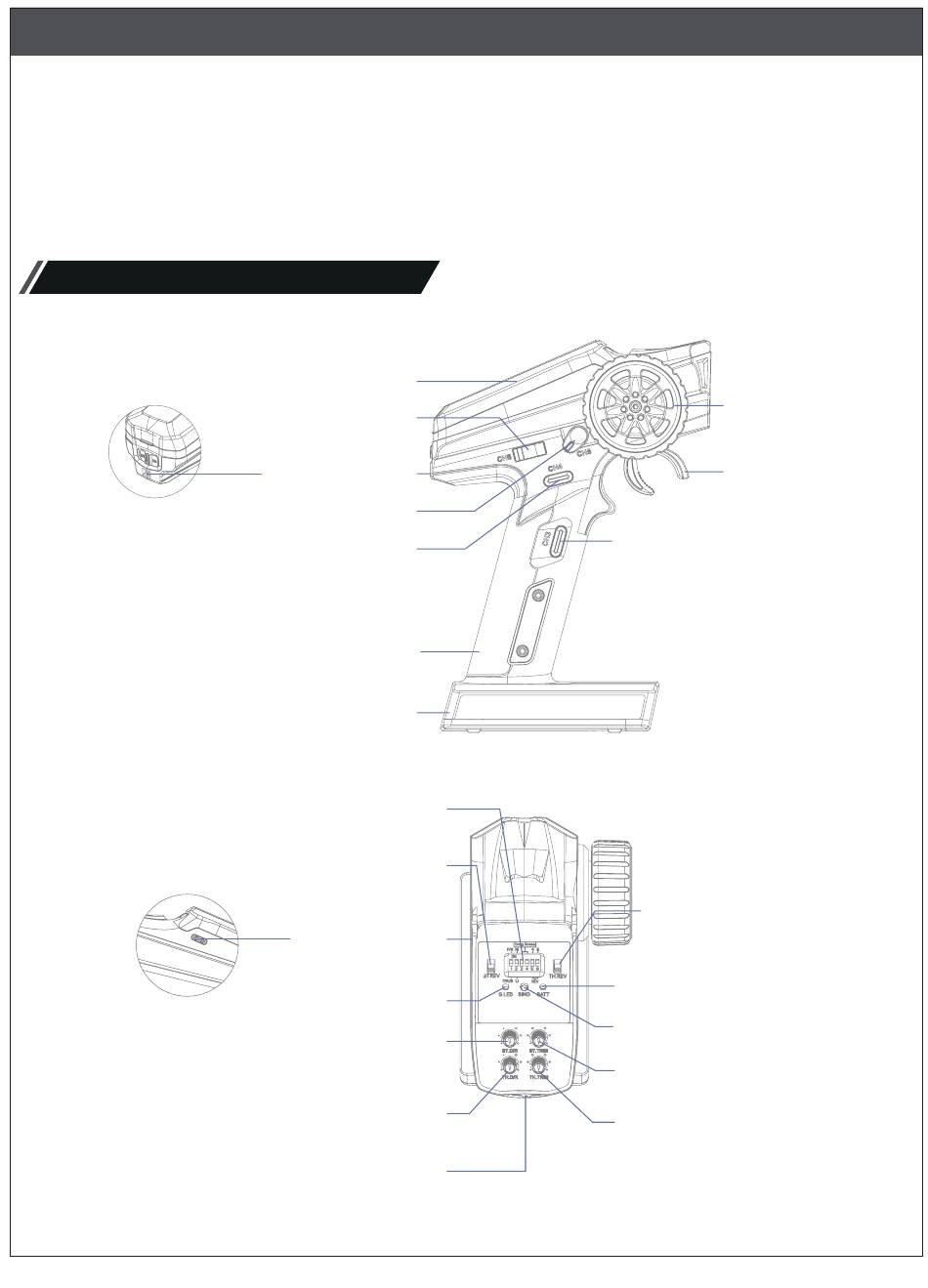

Transmitter Overview
CH6 Three-position Toggle Switch (CH6)
CH4 Button with a Blue Indicator (CH4)
CH4 按键（CH4)，带蓝色指示灯
Battery Compartment(AA Battery*4/2S Lipo)
ST.REV Switch, for steering channel reverse
ST.D/R Knob, to adjust the rate of steering channel
TH.D/R Knob, to adjust the rate of throttle channel
发射机介绍
发射机概览
Panel Flip Cover
功能面板保护盖
CH6 三档拨动开关
Neck Strap Hook
挂绳孔
CH5 Knob(CH5)
CH5 旋钮 (CH5)
Handle
手柄
电池仓(4*AA 电池 /2S Lipo)
6-bit DIP Switch
六位拨码开关
方向反向开关（ST.REV）
USB Type-C Port
USB Type-C 接口
G.LED, Status Indicator
状态指示灯绿色（G.LED）
方向比率旋钮 (ST.D/R)
油门比率旋钮 (TH.D/R)
OFF/ON Switch, Power Switch
电源开关（OFF/ON)
CH3 Button with a Blue Indicator (CH3)
CH3 按键（CH3)，带蓝色指示灯
BATT LED, RX Power Indicator
RX 电量指示灯 (BATT）
BIND Button
对码按键（BIND）
ST.TRIM Knob, to adjust the trim of
steering channel
方向微调旋钮（ST.TRIM）
TH.TRIM Knob, to adjust
the trim of throttle channel
油门微调旋钮（TH.TRIM）
8
Steering Wheel(CH1)
方向手轮（CH1)
Throttle Trigger (CH2)
油门扳机（CH2)
TH.REV Switch, for throttle
channel reverse
油门反向开关 (TH.REV)
