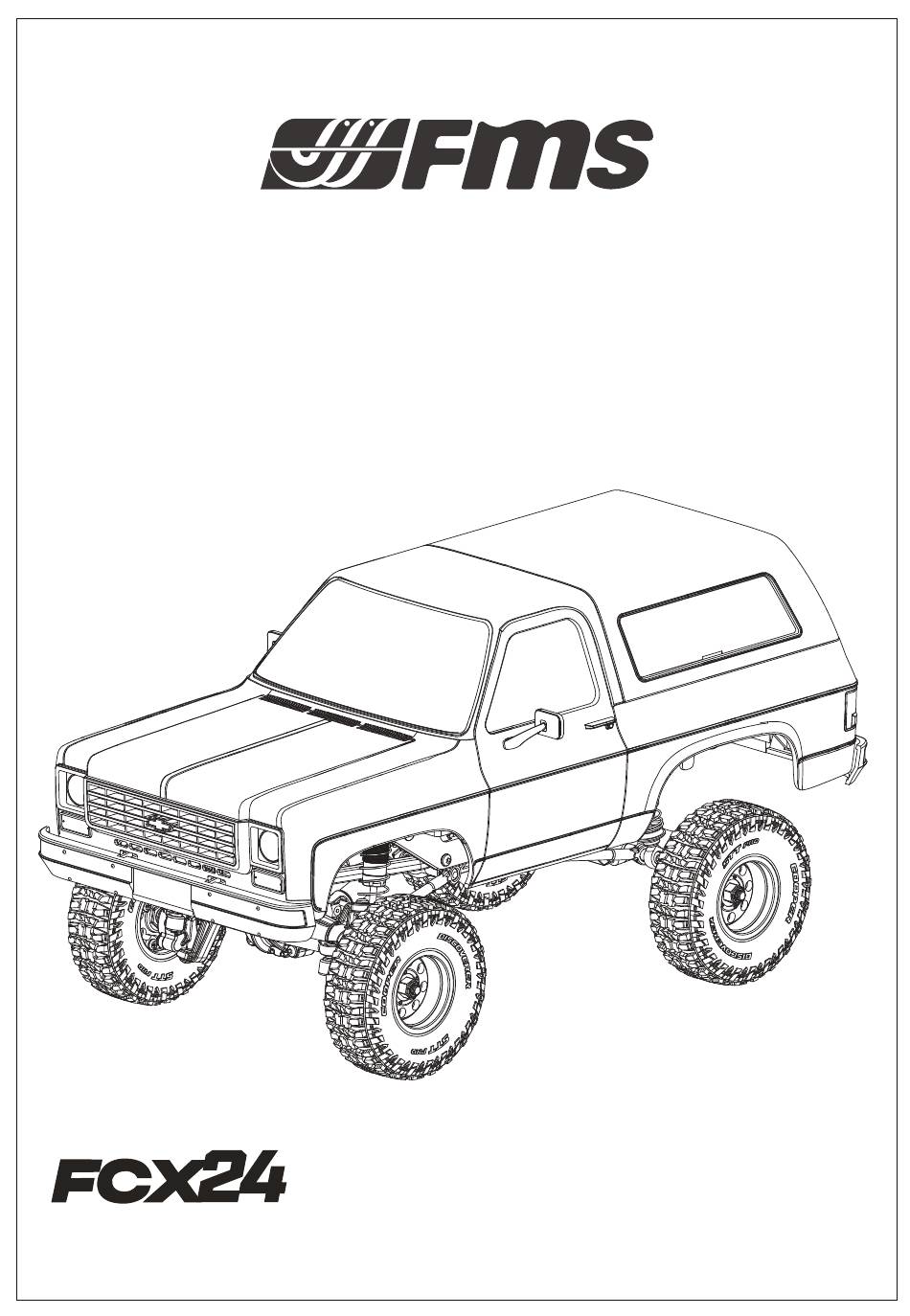

- Page 1 1:24 FCX24 K5 BLAZER PRO BRUSHLESS Instruction Manual 操作手册 MAN-G0284...
-
Page 2: Safety Precautions
安全保障措施 Safety Precautions 免责声明与警告 Disclaimer and Warning Thank you for purchasing our product. This product is composed of precision components and is not a toy. It is not suitable for use by individuals under the age of 14. Please do not allow children to come into contact with this product. - Page 3 安全保障措施 Safety Precautions • Always turn on the transmitter before connecting the battery on the model. When turning off the model, always disconnect the battery first, and then turn off the transmitter. If this order is reversed, the model may become uncontrollable and cause serious damage. •...
- Page 4 安全保障措施 Safety Precautions • Interference may cause loss of control. To ensure the safety of you and others, do not operate in the following places: 1、Near any site where other radio control activity may occur 2、Near power lines or communication broadcasting antennas 3、Near people or roads 4、On any body of water when passenger boats are present •...
- Page 5 认证相关 Certifications CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
- Page 6 认证相关 Certifications IC STATEMENT This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 7: Product Introduction
The chassis adopts FCX24 chassis, besides retaining the two-speed mechanical transmission on the basis of the original K5 BLAZER, the FMS is equipped with 1212 outer rotor brushless motor for the first time, which has an exceptionally delicate linear control experience compared with the brushed... - Page 8 性能，这一优势在低速攀爬极限障碍时尤其明显。 目前配合FCX24底盘已经有金属差速器、金属万向节传动轴、黄铜轮毂配重等多款升级改装零件上市。 这些零件除了进一步提升车辆性能外，还提供多种个性化的选择，目的只有一个，就是希望每一位玩家玩得 尽兴。期待你们的分享。 特点 Features ● FMS 18th Anniversary limited edition painted simulation car body ● External rotor brushless motor ● Full ball bearings ● Metal tie rods, metal straight axle teeth, metal gearbox teeth ● Completed assembly ● Micro two-speed mechanical transmission ●...
- Page 9 产品简介 Product Introduction Specification 产品参数 128mm 38mm 110mm 139mm 129mm 253mm ● Departure Angle: 45° ● Length:253mm ● Motor: 1212 brushless motor 3200KV ● Width:129mm ● Battery : 2S Lipo 7.4V 380mAh ● Height:128mm ● Remote control distance: 30m ● Wheelbase:139mm ●...
- Page 10 发射机概览 Transmitter Instruction 发射机介绍 Transmitter instruction The MG44 is a simplifed 4-channel transmitter that adopts the 2.4GHz 2A-BS Automatic Frequency Hopping Digital System. The transmitter is lightweight and compact in design, comfortable and ergonomic. It has a beginner mode and is easy for beginner players to use. MG44 是一款采用...
-
Page 11: Getting Started
使用前准备 Getting Started 发射机电池安装 Transmitter Battery Installation Before operation, install the battery and connect the system as instructed below. 开始操作前，请按照本章的顺序和指引安装电池、连接设备。 Danger Only use specified battery (X4 AAA batteries). 危险 仅使用厂家指定的电池。 Danger Do not open, disassemble, or attempt to repair the battery. 请勿打开、拆卸或自行维修电池。... - Page 12 使用前准备 Getting Started Receiver and Servo Installation 接收机与舵机安装 Make sure that the receiver is mounted in an appropriate location within the model, to ensure a stable signal, maximum range and to mitigate external interference, follow these guidelines: Pay attention to the following when installing the receiver: 1.
- Page 13 Instructions 操作指引 LED Indicator LED 指示 1. R.LED: The red power indicator; 2. G.LED: The green status indicator; 3. RX.BATT: ESC battery power indicator. • When the power is high, the RX.BATT LED will be solid on in green. • When the power is medium, the RX.BATT LED will be solid on in orange. •...
- Page 14 操作指引 Instructions 摇杆校准 Stick Calibration This function is used to set the neutral position for throttle and wheel. Every transmitter is calibrated before leaving the factory, however if recalibration is required,please follow these steps: 1. Turn and hold the wheel as far clockwise as it will turn, hold the throttle all the way forward, then turn on the transmitter in calibration mode.
- Page 15 系统功能 System Functions Channel Description 通道说明 The transmitter outputs a total of 4 channels, which are assigned as below, as well as the functions. • CH1 : The assigned control is the steering wheel. CH1 controls the steering to enable a car to turn left or right.
-
Page 16: System Functions
系统功能 System Functions D/R 舵量调节 The ST. D/R switch is used to adjust the servo travel amount CH1(Steering Trim), and can also adjust the travel amount for CH3 as multiplexing mode. The TH.D/R switch is used to adjust the servo travel amount for CH2(Throttle), and can also adjust the travel amount for CH4 as multiplexing mode. -
Page 17: Transmitter Specifications
产品介绍 Introduction FS-FMS-R4P1-BS based on 2A-BS protocol is a 3-channel receiver with one-way transmission, featuring a built-in antenna, PPX4 waterproof and a compact design. The receiver will enter the binding state once it is powered on, outputting PWM signal and car light control signal. -
Page 18: Receiver Specifications
接收机规格 Receiver Specifications Product Model: FS-FMS-R4P1-BS Number of Car Light Connectors: 6 (DB01 Car Compatible Transmitters: light control board connects to the LED car light FS-FMS-G4P-BS,FS-FMS-MG4-BS, connector) FS-FMS-MG6-BS Data Output: PWM Compatible Model:Cars Temperature Range: -10℃ ~ +60℃ Number of PWM Channels: 3 Humidity Range: 20% ~ 95% RF: 2.4GHz ISM... - Page 19 对码 Binding The receiver automatically enters the binding state once it is powered on. 1.First put the transmitter into binding mode (See the transmitter s user manual for instructions on how to activate binding mode.) 2.When the receiver is powered on and waits for 1 second t will automatically enter the binding state ifit is not connected.
- Page 20 • The ESC firmware can be upgrated by Bluetooth Module. 1.全防水设计,适应各种气候环境。 2.电调使用了32位处理器,提供更加强大的运算能力及更精准的油门输出。 3.更加优秀的油门启动、加速度及油门线性。 4.多重保护功能:电池低压保护、过温保护、油门信号丢失保护。 5.可通过蓝牙升级电调固件。 产品规格 Specification Product Name Input BEC Output Size Weight ESC Firmware Cont./ (mm) Programming upgrading Peak Current 产品名称 持续/峰值电流 电池节数 BEC输出 尺寸 重量 参数编程功能 是否支持软件升级 33.4*20.3*14 FMS-SL 10A 2S 10A/30A 2S Lipo 6V/1A...
- Page 21 电调说明书 SL 10A 2S ESC User Manual 电调连接-示意图 Connection Motor Battery 马达 电调 电池 Black: Ground (-) Red: Positive (6V) White: Signal 黑线：RX- 负极 红线：RX+ 正极 （6.0V) Servo Receiver 白线：RX信号线 舵机 接收机 电调连接-说明 Connection Installation Battery Wire Connection When connecting the battery, pay attention to polarity: incorrect connection will damage the ESC and Battery.
- Page 22 电调说明书 SL 10A 2S ESC User Manual 故障快速处理 Trouble shooting Trouble shooting Possible causes Solutions 故障现象 可能原因 解决办法 1. Some soldering between the 1. Check all soldering points, The motor stuttered but motor and the ESCwas not good. please re-solder if necessary couldn' t start.
- Page 23 电调说明书 SL 10A 2S ESC User Manual 开关机： 按一下开关开机，再按一下开关关机。 校准油门行程： 1.打开遥控器（油门放在最大位置） 2.打开电调开关，马达滴响1声，油门推到最小，马达滴滴响2声，油门回中，马达滴滴滴响3声。关机，重新开 机，油门较准完成。 保护： 1.低压保护--锂电6.4V时:马达停止 2.温度保护--105度保护，降低功率50%。 3.信号丢失保护--信号丢失后，马达停止，信号恢复后，马达正常转动。 车辆设置 Vehicle Setup Charging the Battery 电池充电 Car Battery: 2S LiPo 7.4V 380mAh Charger: USB balance charger, charging time 30-45 minutes. 1. Connect the USB port of the balance charger to a power source, and then connect the battery to the balance charger to start charging 2.
- Page 24 车辆设置 Vehicle Setup Connecting the battery 连接电池 Step 1: With the bottom of the vehicle facing up, release the four buckles (opened inward) indicated by the arrows to separate the car shell from the chassis. Step 2: Place the battery in the battery compartment on the frame and fix it with the attached silicone rubber band. Connect the battery plug to the female end of receiver/ESC (2-in-1) unit.
- Page 25 车辆设置 Vehicle Setup 电池注意事项 Battery Precautions • Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery chemis- try. Use ONLY charger designed for LiPo battery. • Do not leave LiPo battery unattended during charging. •...
- Page 26 Decal Application 贴纸应用 Please choose one set of the decals according to your taste or history materials and paste it as shown （for reference only). 请参考历史资料或依据个人偏好，在以下贴纸中选出一套，按照所列的步骤粘贴。（贴纸涂装仅供参考，玩家可自行DIY）...
- Page 27 配件列表 Spare Parts List 摇臂套装(黑色) C3029 Servo horn set 轮胎 C3084 Tire 前防撞 C3085 Front bumper 后防撞 C3086 Rear bumper 避震器 C3087 Oil shock absorbers assembly 车壳 + 车顶棚 素材 C3088 Car boby and canvas top w/o painted 车壳+ 车顶棚 预喷漆白/橙 C3089 Car boby and canvas top painted (white / orange) 车壳+ 车顶棚...
- Page 28 配件列表 Spare Parts List 面罩A (棕) C3129 Exhaustion plate style A (brown) 面罩B (黑) C3191 Exhaustion plate style B (black) 面罩B (橙) C3192 Exhaustion plate style B (orange) 面罩B (棕) C3193 Exhaustion plate style B (brown) 前防撞B C3100 Front bumper style B 行李架...
- Page 29 CN:避震 EN:Oil shock absorbers assembly C3367 C3367 C3367 C3367 CN:车轮 EN:Wheels C3095 C3084 C3348 C3095 C3095...
- Page 30 EN:Two speed transmission Installation CN:两档变速箱总成 C3677 C3013 C3014 C3062 C3014 C3025 C3025 C3025...
- Page 31 C3676 C3025 C3025 C3014 C3062 C3013 C3062...
- Page 32 CN:前桥总成 EN:Front axle C3031 C3021 C3039 C3033 C3015 C3019 C3033 C3019 C3019 C3020 C3039 C3016 C3027 C3018 C3748...
- Page 33 C3063 C3018 C3061 C3020 C3019 C3061 C3015 C3019 C3019 C3015 C3039 C3033 C3021 C3031...
- Page 34 CN:后桥总成 EN:Rear axle C3031 C3021 C3033 C3019 C3015 C3022 C3039 C3019 C3015 C3061 C3063 C3018...
- Page 35 C3749 C3018 C3022 C3015 C3019 C3039 C3033 C3019 C3021 C3031...
- Page 36 CN:车架组 EN:Frame Set C3036 C3126 C3658 C3028 C3035...
- Page 37 C3661 C3677 C3001 C3028 C3749 C3748...
- Page 38 CN:车架成品组 EN:Finished Frame Set C3661 C3367 C3667 C3367 C3667 C3661 C3029 C3667...
- Page 39 C3367 C3661 C3667 C3367 C3667 C3661...
- Page 40 CN:车壳成品组 EN:Finished Hard Body Set C3088/C3089/C3090/C3113/C3663/C3678 C3091 C3088/C3089/C3090/C3113/C3663/C3678 C3092 C3097 C3096 C3097 C3096 C3086 C3092 C3093/C3127/C3128 C3091 C3085 C3085...
- Page 41 EN: Vehicle CN:整车组 （SUV款）...
- Page 42 EN: Vehicle CN:整车组 （皮卡款）...
- Page 43 EN: Roll Cage Installation CN:安装防滚架...
- Page 44 Foshan Zhengze Model Technology Co., Ltd. Tel:+86-0757-26330080 E-mail:support@fmsmodel.com Add: Unit A, Building 6, Jicheng Science and Technology Innovation Park,Shunde, Foshan City, Guangdong Province, 528306 佛山市正泽模型科技有限公司 电话： 86-0757-26330080 邮箱： support@fmsmodel.com 地址及电话： 广东省佛山市顺德区北滘镇顺江社区三乐东路25号集成科创园 6栋 MADE IN CHINA...
