TOYOTA LC80

LAND CRUISER

Instruction Manual

MAN-G0288

操作手册

Need help?

Do you have a question about the FCX10 and is the answer not in the manual?

Questions and answers

Summary of Contents for FMS FCX10

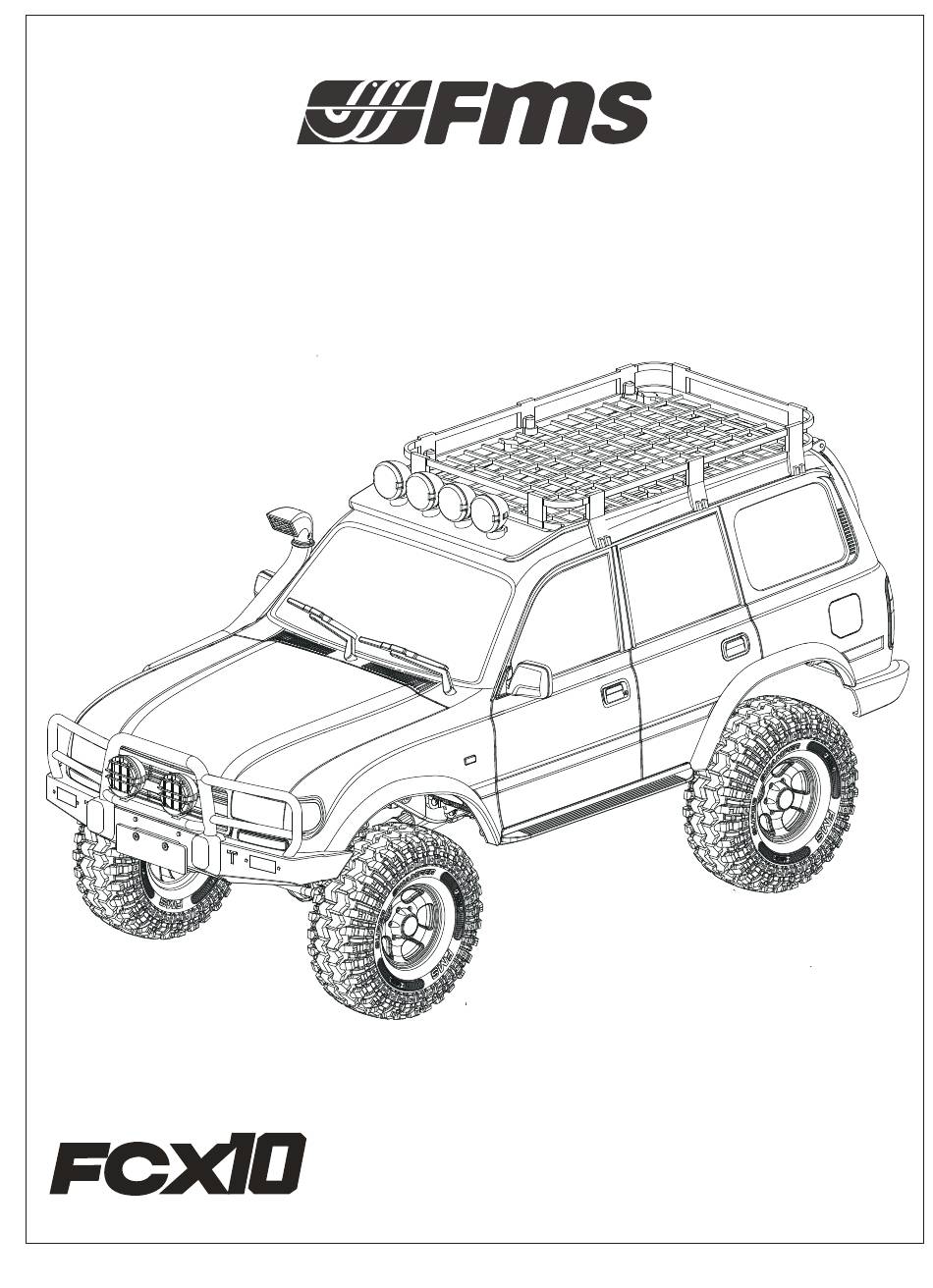

Page 1 TOYOTA LC80 LAND CRUISER Instruction Manual MAN-G0288 操作手册...
Page 2 安全保障措施 Safety Precautions 免责声明与警告 Disclaimer and Warning Thank you for purchasing our product. This product is composed of precision components and is not a toy. It is not suitable for use by individuals under the age of 14. Please do not allow children to come into contact with this prod- uct.
Page 3 安全保障措施 Safety Precautions • 请使用原厂部件更换损坏的部件。特别注意所有车辆接线的正负极。 • 务必选择合适的环境操作遥控模型，所选环境需远离电缆、无线电塔、深水及不稳定地形。本品操作者对其行为全权负责。 • 本品由精密电子部件构成。请勿将本品暴露于潮湿的环境或者其他污染物中。 • 确保每次操作前检查车辆的无线接收范围，以防止无线信号丢失或受干扰。 • 在您的能力范围内操作此产品。在任何时候，如果车辆操作有危险，则绝对不值得冒险。 • 通电方式：务必先开遥控器再将车子通电。断电方式：务必先将车子断电再关遥控器。以上顺序如逆转，则可能引起遥控模型失控，导致人身伤害或财产损失。 • 遥控器电池低电时，请勿操作模型车，以免出现失控。 • 模型产品上的塑胶件容易因极冷或极热气候出现变形或损坏的状况。所以请将模型产品存放在气候受控的室温环境中，切勿靠近任何热源，如烤箱或加热器等。 This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 14 years old.
Page 4 安全保障措施 Safety Precautions • Do not use this product when you are tired, uncomfortable, or under the influence of alcohol or drugs. Doing so may cause serious injury to yourself or others. • The 2.4GHz radio band is limited to line of sight. Always keep your model in sight as a large object can block the RF signal and lead to loss of control.
Page 5 Certifications DoC Declaration Hereby, [ShenZhen FLYSKY Technology Co., Ltd.] declares that the Radio Equipment [FS-FMS-MG6-BS&FS-FMS-R6D-ESC-BS] is in compliance with RED 2014/53/EU. The full text of the EU DoC is available at the following internet address: www.flyskytech.com/info_detail/10.html CE Warning The ce warns that the installation of the antenna used in this transmitter must be kept in distance from all the person- nel and shall not be used or used with any other transmitter.
Page 6 (this structure has been patented), and at the same time, the power and signal cables of the lights are perfectly integrated with the magnetic module. Except for the adventurous heart, you don't need to prepare any other things.FMS will take off-road journey for you!

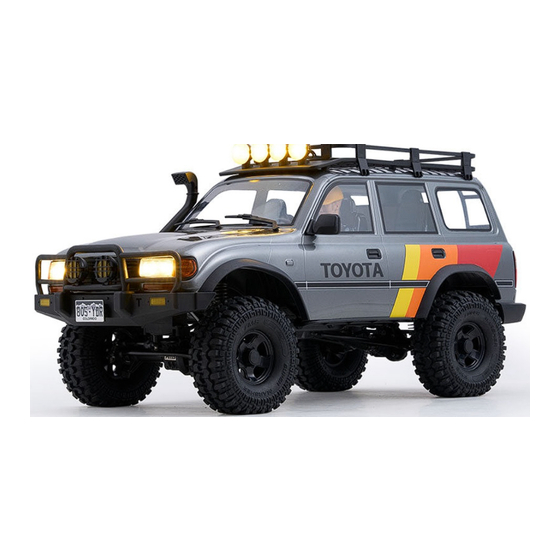

Page 7 产品信息 Product Introduction 由丰田汽车公司授权，FMS模型出品的这款1/10模型车Land Cruiser 80，采用FCX10仿真攀爬底盘，忠实还原了原车的越野性能。在外观仿真度方面FMS仍旧保持一贯的高水准，车壳使用PC吸塑软壳，在保证车身耐用度的情况下，车上装有后视镜和涉水器，透过透明车窗可以看到高仿真度的人偶、精美的仪表盘以及座舱内饰，车顶配备有行李架和四个橘黄色的越野探照灯，在尾部同时标配爬梯。出厂大灯, 前转向灯, 兩侧转向灯, 后转向灯, 倒车灯等均已预装完毕，车壳采用磁吸接口从底盘取电，遥控器一键唤醒全车灯光表达；此外，我们还预装了挡泥板，可以防止泥土溅到车身及底盘上。整个底盘采用主流的中前置动力布局，四连杆悬挂，为了更好地还原真车，采用了前后直桥设计，更有利于提高驾驶时的操控稳定性；而中前置电机和变速箱作为一个整体，重心比同级产品更低，滚动重心也更低，更不易侧翻。同时电池仓一侧配备了金属防溅水舵机，负责高低速档位切换。在日常检修便利性方面，FMS同样为您考虑周到，电池舱可向后翻起或“快拆”，所有电子设备都集中在车辆中部，日常检修维护或者拆换都非常方便。得益于强大的研发实力，我们创新性地设计了旋钮式快拆结构（此结构已获发明专利），同时将灯组的供电线及信号线完美地与磁吸模块融合在一起。除了准备一颗渴望冒险的心，您无需再准备其它任何配件，FMS为您开启越野之旅！特点 Features ●TOYOTA authorized car body; ●Detailed interior; ●Rich lighting effects; ●LC80 exclusive wheel hub; ●Offroad front bumper(daytime light included);...
Page 8 产品信息 Product Introduction Version 配置 Transmitter 发射型号 Receiver R6D-ESC-BS 60A 接收型号 R6D-ESC-BS二合一电调 60A Light Control DB01 PWM INPUT 灯控型号 DB01 PWM INPUT Recommend Battery 2S 5000mAh, 3S 5000mAh 推荐电池 2S 5000mAh, 3S 5000mAh Motor 550 32T 电机有刷550 32T Motor Gear Pinion 马达齿齿数...
Page 9 发射机介绍 Transmitter Instruction This system is compatible with 2.4GHz 2A-BS protocol and consists of FS-FMS-MG6-BS transmitter and FS-FMS-R6D-ESC-BS receiver. It supports two-way transmission and outputs six channels. The transmitter is lightweight and compact in design, comfortable and ergonomic, it supports ESC parameters setting and compati- ble with RC cars.
Page 10 接收机概览 Receiver Overview [10] [11] [12] [13] [14] [15] CH1 通道接口马达接口 "+" CH1 Connector Motor Connector "+" [10] CH3 通道接口电池接口 CH3 Connector Battery Connector [11] CH4 通道接口马达接口 "-" CH4 Connector Motor Connector "-" [12] LED 车灯接口散热片 LED Light Connector Heatsink [13]...
Page 11 注意准备过程中，请勿连接接收机电源，避免造成不必要的损失。 Connect the servos/car light drive board to the receiver according to the digram below. 请参考如下图示来连接接收机与舵机 / 灯板 : Aux Channel Servo 辅助通道舵机 FS-FMS-DB01 Car Light Drive Board FS-FMS-DB01 车灯驱动板 Aux Channel Servo 辅助通道舵机 Aux Channel Servo 辅助通道舵机 Steering Servo...
Page 12 使用前准备 Getting Started 发射机电池安装 Transmitter Battery Installation Only use specified battery (X4 AA batteries). Danger 注意仅使用厂家指定的电池。 Do not open, disassemble, or attempt to repair the battery. Danger 注意请勿打开、拆卸或自行维修电池。 Do not crush/puncture the battery, or short the external contacts. Danger 注意...
Page 13 操作指引 Instructions After setting up, follow the instructions below to operate the system. 准备操作完成后，您可以按照本章指引开始使用本产品。开机 Power On Follow the steps below to turn on the transmitter: 1. Check to make sure that the batteries are fully charged and installed correctly. 2.
Page 14 操作指引 Instructions 对码 Binding The transmitter and the receiver have been pre-bound before delivery. If you are going to use another receiver,follow the steps below to rebind. The transmitter supports two-way binding, the steps are as following: 1. Turn on the transmitter while holding the BIND button, then the transmitter will enter the binding mode. At this time, the G.LED will flash quickly.
Page 15 系统功能 System Functions This section focuses on the functions and how to use them. 此章节主要介绍系统各项功能操作。通道说明 Channel Description The transmitter outputs a total of 6 channels, which are assigned as below, as well as the functions. 该发射机共输出 6 个通道，控件分配及相关功能如下： Channel Assigned Control Function 通道...
Page 16 系统功能 System Functions 微调设置 Trims This function can set the trim of steering channel, throttle channel and CH6 channnel. Steering Channel and Throttle Channel Trim Adjustment The ST.TRIM and TH.TRIM knobs correspond to the trim adjustments of the steering channel and throttle channel respectively. When the knob is centered by default, the trim value is zero.
Page 17 系统功能 System Functions 比率设置 This function is used to adjust the rate of steering channel and throttle channel, so that the servo actions tend to be sensitive. ST.D/R is used to adjust the steering channel rate. TH.D/R is used to adjust the throttle channel rate.
Page 18 系统功能 System Functions Other Channels End Point Adjustment Adjust the end points of the other channels. Setup: 1. Refer to previous content, to put the transmitter into the end point setting mode. 2. Operate the control corresponding to the channel which you want to set. 3.
Page 19 系统功能 System Functions 注： 1. 若设置过程中操作控件时发射机无响应则表示设置失败，请按功能设置重新设置。 2. 除方向通道和油门通道外，其他通道可在设置完上一通道舵量后，操作相应的控件触发其它通道的舵量设置。如当设置 CH3 通道舵量，在蜂鸣器关闭后，可按下 CH4 按键，此时蜂鸣器变为响 2 声循环提示，即可继续设置 CH4 通道舵量。若设置完其他通道后再设置方向通道或油门通道舵量，则须使发射机重新进入舵量设置模式后方可设置。 3.在非油门通道舵量设置过程中，油门通道将保持正常输出。电调参数设置 ESC Parameters Setting 6-bit DIP Switch Sign Running Mode Battery Type Drag Brake 六位拨码开关标识 Lipo 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6...
Page 20 系统功能 System Functions Setup: Toggle the switch 2 to the upper position, the buzzer will have one beep. Toggle the switch to the lower position, the buzzer will have two beeps. Drag Brake The drag brake means that when the throttle trigger moves from the forward or reverse area to neutral range, it will produce certain braking force to the motor, the larger the value is, the greater the drag brake force is.
Page 21 系统功能 System Functions 失控保护 Failsafe The failsafe function is used to protect the model and personnel when the receiver is out-of-control. The failsafe of CH2 is enabled by default, and the ESC will enter the braking status after out-of-control. The other channels of the receiver (CH1, CH2, CH4 and CH6) are not set by default, and will keep the last output after out-of- control.
Page 22 系统功能 System Functions 数据复位 Data Reset This function is used to restore the end point value set to the default value. Setup: To restore to the default value, press the BIND and CH4 buttons of the transmitter at the same time, and power the transmitter on.
Page 23 This receiver features 6 sets of LED lights: Turn signal left light, turn signal right light, daytime running light, headlight, brake light and reverse light. And these 6 sets of LED lights are connected to this receiver through the FS-FMS-DB01 car light driver board.
Page 24 接收机介绍 Receiver Introduction Car Lights Car Light State Control State Control Trigger Condition Notes 车灯车灯状态控制状态控件触发条件备注 Left Turn Slow Flash Turn Left Steering Turn the sterring wheel Signal Light Wheel counter clockwise. 左转灯慢闪左转手轮逆时针打手轮...
Page 25 接收机介绍 Receiver Introduction 电调功能说明 ESC Function Instruction This receiver ESC function supports the settings of battery type, drag brake and running mode . After the motor is connected, each time the receiver is turned on, the motor first prompts the connected battery type, and then prompts the throttle neutral position calibration information, namely automatically identifies the throttle neutral position.
Page 26 Replace low speed motor, or increase the reduction ratio. 电机启动时急加速，电机 fast, the gear ratio is not reasonable. 有卡住或停顿的现象。 2. 电机转速过高，齿轮比搭配不合适。更换低速电机，或将减速比提高。产品规格 Product Specifications 发射机规格 Transmitter Specifications 产品型号 FS-FMS-MG6-BS Product Model FS-FMS-MG6-BS 适配接收机 FS-FMS-R6D-ESC-BS Compatible Receivers FS-FMS-R6D-ESC-BS 适配模型攀爬车、平路、越野短卡和卡车 Compatible Models RC Car 通道个数...
Page 27 攀爬车、平路、越野短卡和卡车 Compatible Models RC Car 通道个数 Number of Channels 车灯组数 6（LED 车灯接口连接 FS-FMS-DB01 Number of LED Lights 6 (LED light connector connects to the FS-FMS-DB01 car light Connectors 车灯驱动板） drive board.) 无线频率 2.4GHz ISM 2.4GHz ISM 发射功率 < 20dBm <20dBm (e.i.r.p.) （EU）...
Page 28 车辆设置 Vehicle Setup 电池注意事项 Battery Precautions • Never charge a lithium polymer battery with a charger designed for NiCd, NiMH, or any other type of battery chemistry. • Use ONLY charger designed for LiPo battery. • Do not leave LiPo battery unattended during charging. •...
Page 29 车辆设置 Vehicle Setup 连接电池 Connecting the battery 1. Gently push the front latches forward and the rear latches backward to separate the car shell from the chassis. 2. As shown in the diagram, place the battery inside the battery compartment and secure it in place using the included battery strap，Connect the battery to the RX/ESC 2-in-1 unit (batteries sold separately, recommended batteries are advised).
Page 30 车辆设置 Vehicle Setup 1. 将车头和车尾的扭扣旋转，以分离车壳与车底盘。 2. 如图所示，将电池放入电池仓内，并使用附带电池轧带固定到位，连接电池至电调/接收二合一组件（电池需另购，建议使用推荐电池）。 3. 将车壳的前后柱体对准并推入车底盘的前后扣位旋转纽扣，以当前后车壳有“咔嚓”声音，表示车壳安装到位。电池仓尺寸：140*47*40mm 电池插头：XT60 公头 1. Please remove the battery immediately after use (allow time for the battery to cool down) and do not store the battery inside the model product for an extended period. 2.
Page 31 配件列表 Spare Parts List 车壳固定件 C3700 Car boby mount set 踏板 C3699 Chassis side plates 前拉杆散件 C3227 Front rod set 后拉杆散件 C3228 Rear rod set 功能舵机伺服码件 C3230 Functional servo mount 前轮传动轴组 C3701 Sport universal driveshaft set front 前桥胶件 C3232 Front axle housing 后桥胶件...
Page 32 配件列表 Spare Parts List 前防撞犀牛款 C3716 Bumper bracket for bumper rhino style MG6 + R6D-ESC 发射器/电调接收器 C3717 MG6 + R6D-ESC transmitter receiver set MG6 发射器 C3718 MG6 transmitter R6D-ESC-BS 电调接收器 C3719 R6D-ESC-bs receiver 变速箱轴 V2 (后驱功能) C3212V2 Transmission gear shift V2 for rear driver function 行李架...
Page 33 CN:油压避震 EN: Oil Shock Absorbers Assembly C3724...
Page 34 CN:换挡舵机 EN: Shift-gear Servo C3724 C3249 C3249 C3249 CN:轮胎组 EN:Wheel Set C3722 C3722...
Page 35 CN:传动轴 EN:Transmission Box Shaft Assembly C3219 C3219 C3219 C3219 C3219 C3219 C3219 C3219...
Page 36 EN:Sport Transmission Gear Box Assembly CN:中传动牙箱 C3693 C3762 C3206 C3210 C3694 C3211 C3208 C3208 C3207 C3206...
Page 37 C3206 C3212V2 C3213 C3762 C3212V2 C3762 C3212V2 C3213 C3213 C3762 C3762 C3266 C3206...
Page 38 CN:前大梁连接组 EN:Fornt Girder Mount Set C3697...
Page 39 CN:后大梁连接组 EN:Rear Girder Mount Set C3698...
Page 40 CN:前桥总成 EN: Front Axle Assembly C3768 C3703 C3703 C3266 C3768 C3701 C3701 C3701 C3704 C3235 C3704 C3768 C3704 C3232...
Page 41 C3247 C3695 C3246 C3234 C3701 C3701 C3703 C3266 C3703 C3232...
Page 42 CN:后桥总成 EN:Rear Axle Assembly C3706 C3706 C3702...
Page 43 C3696 C3233 C3704 C3704 C3704 C3706 C3233 C3702 C3706...
Page 44 CN:车架半成品A EN:Semi-finished Chassis Set A C3221 C3221 C3221 C3699 C3223 C3221 C3220 C3697 C3227 C3227...
Page 45 C3223 C3753 C3693 C3698 C3224 C3221 C3223 C3699 C3220...
Page 46 CN:车架半成品B EN:Semi-finished Chassis Set B C3699 C3695...
Page 47 C3230 C3248 C3699 C3696 C3219 C3219...
Page 48 CN:车架成品 EN:Finished Chassis Set C3711 C3705 C3711 C3711...
Page 49 C3721 C3721 C3720 C3722 C3705 C3724 C3722...
Page 50 CN:车壳半成品 EN:Semi-finished Shell Body Set C3730 C3708 C3710 C3709...
Page 51 C3729 C3750 C3710 C3709 C3729...
Page 52 CN: 车壳成品组 EN: Finished Shell Body Set C3733 C3726 C3715 C3711 C3714...
Page 53 C3725 C3711 C3733 C3700 C3753...
Page 54 CN:整车产品 EN:Vehicle C3687...
Page 55 Foshan Zhengze Model Technology Co., Ltd. Tel:+86-0757-26330080 E-mail:support@fmsmodel.com Add: Unit A, Building 6, Jicheng Science and Technology Innovation Park, Shunde, Foshan City, Guangdong Province, 528306 佛山市正泽模型科技有限公司电话： 86-0757-26330080 邮箱： support@fmsmodel.com 地址及电话：广东省佛山市顺德区北滘镇顺江社区三乐东路25号集成科创园 6栋中国代理车模航模酷乐派模型 KLP Racing 苏州雷飞航模车模蓝飞驰模型...
Page 56 MADE IN CHINA...
