FMS 11035 Instruction Manual

1/10 toyota fj40
Hide thumbs

Advertisement

Quick Links

Download this manual
1/10
Toyota F J40
Instruction Manual
MAN-G0199
操作手册

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FMS 11035

Summary of Contents for FMS 11035

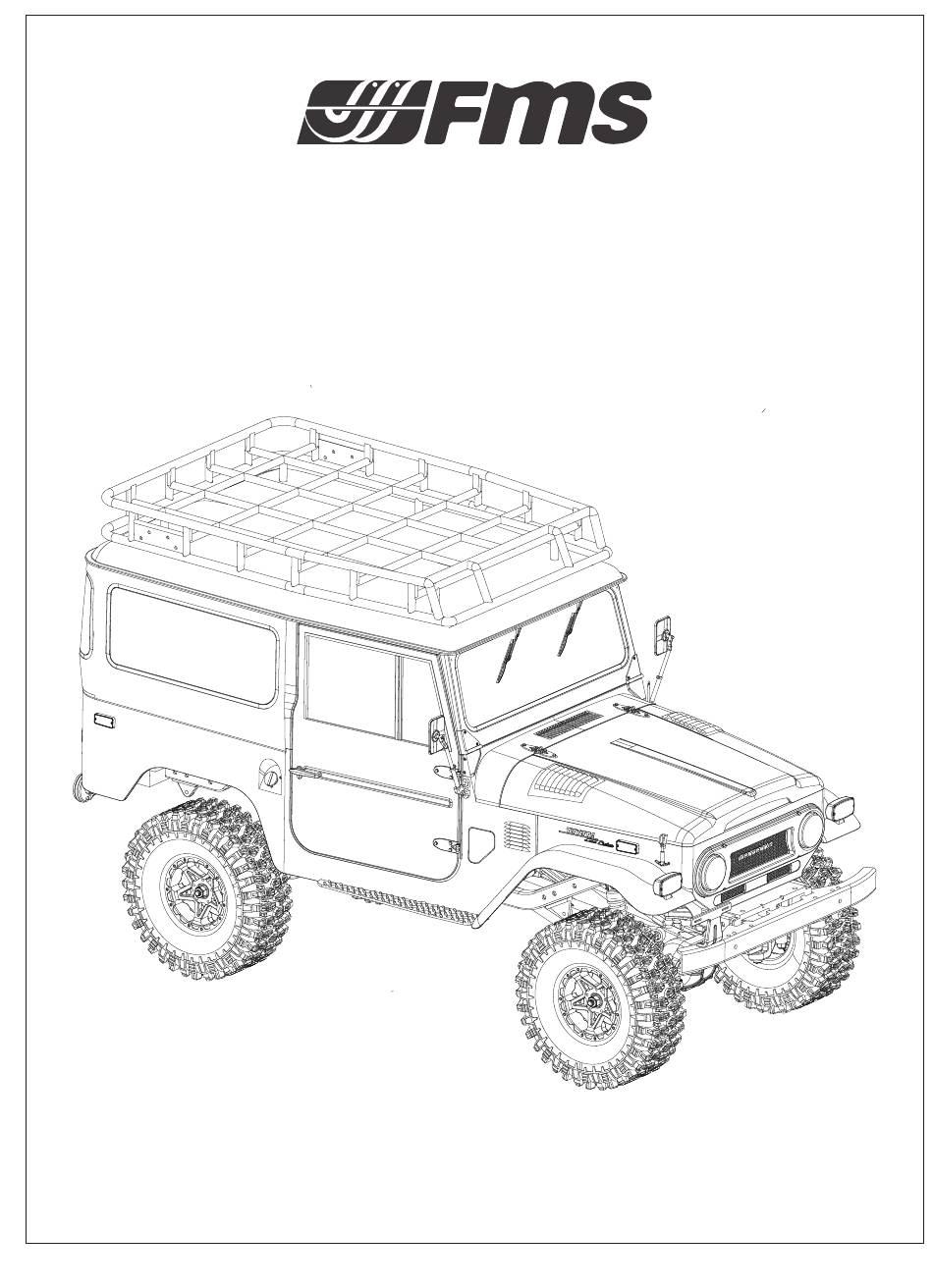

  • Page 1 1/10 Toyota F J40 Instruction Manual MAN-G0199 操作手册...

  • Page 2: Safety Precautions

    Failure to operate or maintain this product in a safe manner can result in bodily harm. It is the owner responsibility to operate this product in a safe manner. FMS and its distributors are not responsible in any way for any and all bodily harm and/ or property damage that may result from the use of this product.
  • Page 3 安全保障措施 SAFETY PRECAUTIONS This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 14 years old. Contains small parts, keep out of reach of children 3 years of age and younger. 使用前请仔细阅读本手册。我们不对任何故意损坏或不当使用负责。这个产品不是玩具！建议14 岁及以上者使用。14岁以下的用户，需要在成年人监督下使用。本产品部分包含小零件，请务必...

  • Page 4: Declaration Of Conformity (Doc)

    Brand Name: FMS Compatiable for cars: 1：10 TOYOTA FJ40 Equipment Model: 11035 to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the Directive 2014/53/EU, EMC Directive 2014/30/EU, EMC Directive 2014/53/EU, FCC Indentifier N4ZG4P00 , EU RoHS Directive 2011/65/EU and Council Directive 2014/30/EU.

  • Page 5: Product Introduction

    Bronco and Scout, it has never fallen behind. This 1/10 remote control climbing vehicle FJ40 presented by FMS uses an ABS hard body to accurately restore the shape and details of the real vehicle. The left and right doors can be opened, and the door hinge adopts the same metal hinge structure as the real car.
  • Page 6 产品信息 PRODUCT INTRODUCTION Features 产品特点 ● READY SET ● SOFT RUBBER SEAT ● BALL BEARINGS FULL SET ● STEEL C-CHANNEL FRAME ● HARD BODY ● FOUR LINK SUSPENSION ● HOOD CAN BE OPENED ● LEAF SPRING SUSPENSION (SOLD SEPARATELY) ● BOTH SIDE DOORS CAN BE OPENED ●...
  • Page 7 发射机概览 Transmitter intruction The FS-G4P is a simple 4 channel transmitter using the latest AFHDS 2.4GHz ATN frequency hopping technology. Designed to be sleek, passionate and powerful for entry level enthusiasts. FS-G4P是一款使用富斯最新自主研发的2.4GHz ANT蚂蚁版自动跳频数字系统的简版4通道发射机，外观采用跑车元素彰显速度、 激情和力量，该款发射机还具备初学者模式方便入门玩家使用。 Panel Flip Cover Steering Trim (ST.TRIM +) 功能面板保护盖...
  • Page 8 使用前准备 Getting Started Before operation, install the battery and connect the system as instructed below. 开始操作前，请按照本章的顺序和指引安装电池、连接设备。 Transmitter Battery Installation 发射机电池安装 Only use specified battery (X4 AA batteries). Danger 危险 仅使用厂家指定的电池。 Do not open, disassemble, or attempt to repair the battery. Danger 危险...
  • Page 9 Applicable to the FS-G4P transmitter and the FS-R4P receiver. Different receivers have different bind procedures. For more information visit the FMS website for manuals and other related information. Product information is updated regularly, please visit our website for more information.
  • Page 10 操作指引 Instructions 3.Stick Calibration(This function is used to set the neutral position for throttle and wheel) 遥感校准（该功能可以用于方向手轮和油门扳机的中位角度修正。） Every transmitter is calibrated before leaving the factory, however if recalibration is required,please follow these steps: 1.Turn and hold the wheel as far clockwise as it will turn, hold the throttle all the way forward,then turn on the transmitter in calibration mode.

  • Page 11: System Functions

    系统功能 System Functions Channel Description 通道说明 The transmitter outputs a total of 4 channels, which are allocated as follows: 1. CH1：Steering Wheel 2. CH2：Throttle Trigger 3. CH3：Three-position Switch 4. CH4：Reset Button Note: By default the output of CH4 is 1000us, pressing the button will toggle between 1000 and 2000us 该发射机共输出4个通道，分配如下: 1.
  • Page 12 系统功能 System Functions 舵量调节 ST.D / R is for servo travel adjustment, which can be multiplexed as CH2 (throttle), CH3, CH4 servo travel adjustment, refer to [5 Mode Switch] for multiplex switching mode; Adjustment range: 0-120%(the default is 100%), the step is 5%. ST.D / R +: Increases servo travel.

  • Page 13: Beginner Mode

    遥控系统功能 System Functions Beginner Mode 初学者模式 Beginner mode is designed for the people who is new to the hobby. In this mode the throttle has been limited to 50 percent, The channel range defaults has been set to 1250~1500~1750us. Function settings: To switch between beginner and normal modes, press and hold the CH4 button while turning the steering wheel completely counterclockwise as far as it can, and at the same time, power on the transmitter.
  • Page 14 遥控产品规格 Instructions Receiver overview 接收机概览 Antenna 天线 To ensure the best signal quality make sure that the antenna is mounted perpendicular to the Note model body in an upright position. 注意 为保证信号质量，天线应与模型机身保持垂直，且天线竖立摆放。 Receiver specifications 接收机规格 • Product Mode: FS-R4P • Data Interface: PWM •...
  • Page 15 遥控产品规格 Instructions Throttle stick position 油门扳机位置 Neutral point Top point of forward direction Top point of backward direction 中位 前进方向的顶端 后退方向的顶端 Mode WP-1040-BRUSHED WP-1040-BRUSHED-Crawler&Boat * 型号 Cont. / Burst Current Forward: 40A / 180A Backward: 20A / 90A 正向、反向持续/峰值电流（10秒） 正向：40A / 180A 反向：20A / 90A 2-3S Lipo, 5-9 Cells NiMH Input 2-3节锂电（Lipo）...
  • Page 16 遥控产品规格 Instructions Trouble Possible Reason Solution 故障现象 可能原因 解决方法 After power on, motor can’t work, no 1.The ESC doesn’t get its working voltage; 1.Check the battery wires connection or sound is emitted, and LED is off. Connections between battery pack and replace the defective connectors.

  • Page 17: Vehicle Setup

    遥控产品规格 Instructions Trouble Possible Reason Solution 故障现象 可能原因 解决方法 The car cannot get top speed and the Some setting in the transmitter are 1.Check the connections and replace the red LED doesn’t solid on at full throttle incorrect. defective connectors. 2.Replace the motor. 车子无法前进也无法倒车，指示灯正常。...
  • Page 18 车辆设置 VEHICLE SETUP • Allow the pack to cool to room temperature prior to recharging. • Do not allow the electrolyte to get into eyes or on skin. Wash affected areas immediately if they come into contact with electrolyte. • Do not alter or modify connectors or wires of a LiPo battery pack. •...
  • Page 19 车辆设置 VEHICLE SETUP 1. If it is not in use for a long time, unplug and take off the battery to prevent battery leakage. 2. Do not open, disassemble, or attempt to repair the battery. 3. The battery needs to be disconnected from vehicle before it can be charged 4.
  • Page 20 车门均可开启 BOTH DOORS CAN BE OPENED...

  • Page 21: Spare Parts List

    Spare parts list 配件列表 C1580 Transmission gear box assembly 中传动齿轮箱品成 C1631 Climbing wheels 攀爬车轮 C1582 Front axle assembly 前桥成品 C1583 Front axle plastic parts 前桥胶件 C1584 Front oil shock absorbers assembly(2pcs) 前避震器总成(一对) 后避震器总成(一对) C1585 Rear oil shock absorbers assembly(2pcs) C1586 Rear axle assembly 后桥成品...
  • Page 22 Spare parts list 配件列表 C1010 Transmission shaft assembly 传动轴品成 C1011 Main gear box set 驱动齿轮箱组散件 C1016 Steering C hub parts 转向C座件 C1020 Screw nut set 螺母包 C1021 Wheel hex set 12mm 车轮6角件 C1022 Pin lock set 销针 C1023 Bearing set 轴承包...
  • Page 23 EN:FRONT OIL SHOCK ABSORBERS ASSEMBLY CN:前避震 C1584 CN:后避震 EN:REAR OIL SHOCK ABSORBERS ASSEMBLY C1585...
  • Page 24 CN:前桥总成 EN: FRONT AXLE ASSEMBLY C1022 C1023 C1583 C1611 C1023 C1021 C1081 C1611 C1082 C1016 C1399 C1611 C1611 C1023 C1009 C1583 C1009 C1611 C1611 C1582...
  • Page 25 C1611 C1611 C1611 C1583 C1583 C1023 C1611 C1583 C1016 C1082 C1583 C1023 C1611 C1023 C1611 C1611 C1022 C1021 C1009...
  • Page 26 CN:后桥总成 EN:REAR AXLE ASSEMBLY C1021 C1022 C1081 C1587 C1023 C1100 C1587 C1023 C1611 C1587 C1611 C1586...
  • Page 27 C1587 C1076 C1023 C1023 C1023 C1587...
  • Page 28 CN:中传动牙箱 EN:TRANSMISSION GEAR BOX ASSEMBLY C1580 C1022 C1077 C1023 C1611 C1023 C1022 C1076 C1076 C1023 C1022 C1023 C1611...
  • Page 29 CN:传动轴组 EN:TRANSMISSION SHAFT ASSEMBLY C1022 C1611 C1077 C1022 C1022 C1010 C1022 C1077 CN:驱动牙箱组 EN:Main Gear Box Set C1022 C1076 C1023 C1611 C1076 C1022 C1023 C1077 C1080 C1076 C1067 C1076 C1067 C1066 C1022 C1611 C1011...
  • Page 30 CN:车架半成品A EN:SEMI-FINISHED CHASSIS SET A C1611 C1011 C1611 C1611 C1611 C1611 C2241 C1009 C1009 C1009 C1009...
  • Page 31 C1580 C1009 C1009 C1009 C1070 C1009 C1611 C1611 C1611...
  • Page 32 CN:车架半成品B EN:SEMI-FINISHED CHASSIS SET B C1611 C1081 C1616 C1592 C1070 C1592 C1010 C1070 C1611...
  • Page 33 C1611 C1593 C1595 C1611 C1593 C1593 C1595 C1595 C1611 C1611 C1070 C1070 C1611 C1010 C1586...
  • Page 34 CN:车架成品 EN:FINISHED CHASSIS SET C1631 C1020 C1611 C1584 C1584 C1611...
  • Page 35 C1611 C1585 C1070 C1070 C1611 C1631 C1081...
  • Page 36 CN:行李架 EN:ROOFTOP RACK C1601 C1601 C1611 CN:前车窗 EN:WINDOW FRAME C1611 C1627/C1588 C1589 C1594 C1627/C1588...
  • Page 37 CN:车尾窗 EN:REAR WINDOW C1597/C1596 CN:车窗组 EN:WINDOW C1623/C1602 C1624/C1603...
  • Page 38 CN:车门组 EN:DOOR C1623/C1602 C1611 C1611 C1624/C1603...
  • Page 39 CN:车顶盖组 EN:DOOR AND WINDOW C1601 C1600 C1597/C1596 C1623/C1602 C1624/C1603 C1627/C1588...
  • Page 40 CN:前座椅组 EN: FRONT SEAT SET C1590 CN:后座椅组 EN:REAR SEAT SET C1591...
  • Page 41 CN:仪表盘组 EN: DASHBOARD GROUP C1628/C1599...
  • Page 42 CN:车壳半成品A EN:SEMI-FINISHED HARD BODY SET A C1628/C1599 C1594 C1706/1605 C1595 C1611 C1606 C1606 C1606 C1595...
  • Page 43 C1591 C1598 C1611 C1595 C1706/1605 C1626/C1608 C1595 C1594 C1706/1605 C1595 C1706/1605 C1611 C1707/C1609...
  • Page 44 CN:车壳半成品B EN: SEMI-FINISHED HARD BODY SET B C1625/C1604 C1623/C1602...
  • Page 45 C1590 C1622/C1597 C1611 C1622/C1597 C1622/C1597 C1624/C1603...
  • Page 46 CN: 车壳成品组 EN: FINISHED HARD BODY SET...
  • Page 47 CN:整车产品组 EN:VEHICLE GROUP...
