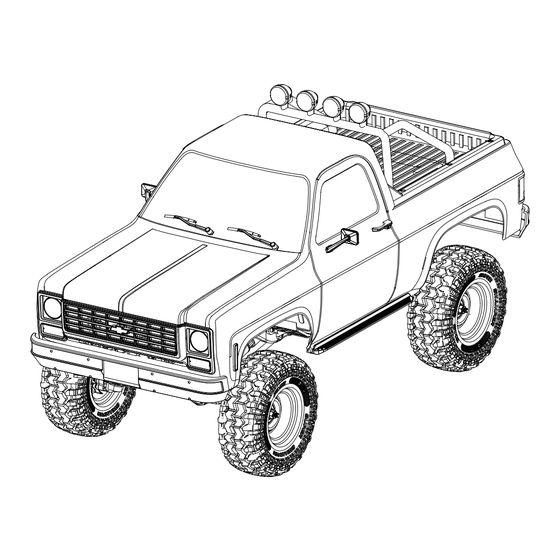

1/10 Chevrolet
K5 Blazer
Instruction Manual
MAN-G0268
操作手册

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCX10 Chevrolet K5 Blazer and is the answer not in the manual?

Questions and answers

Related Manuals for FMS FCX10 Chevrolet K5 Blazer

Summary of Contents for FMS FCX10 Chevrolet K5 Blazer

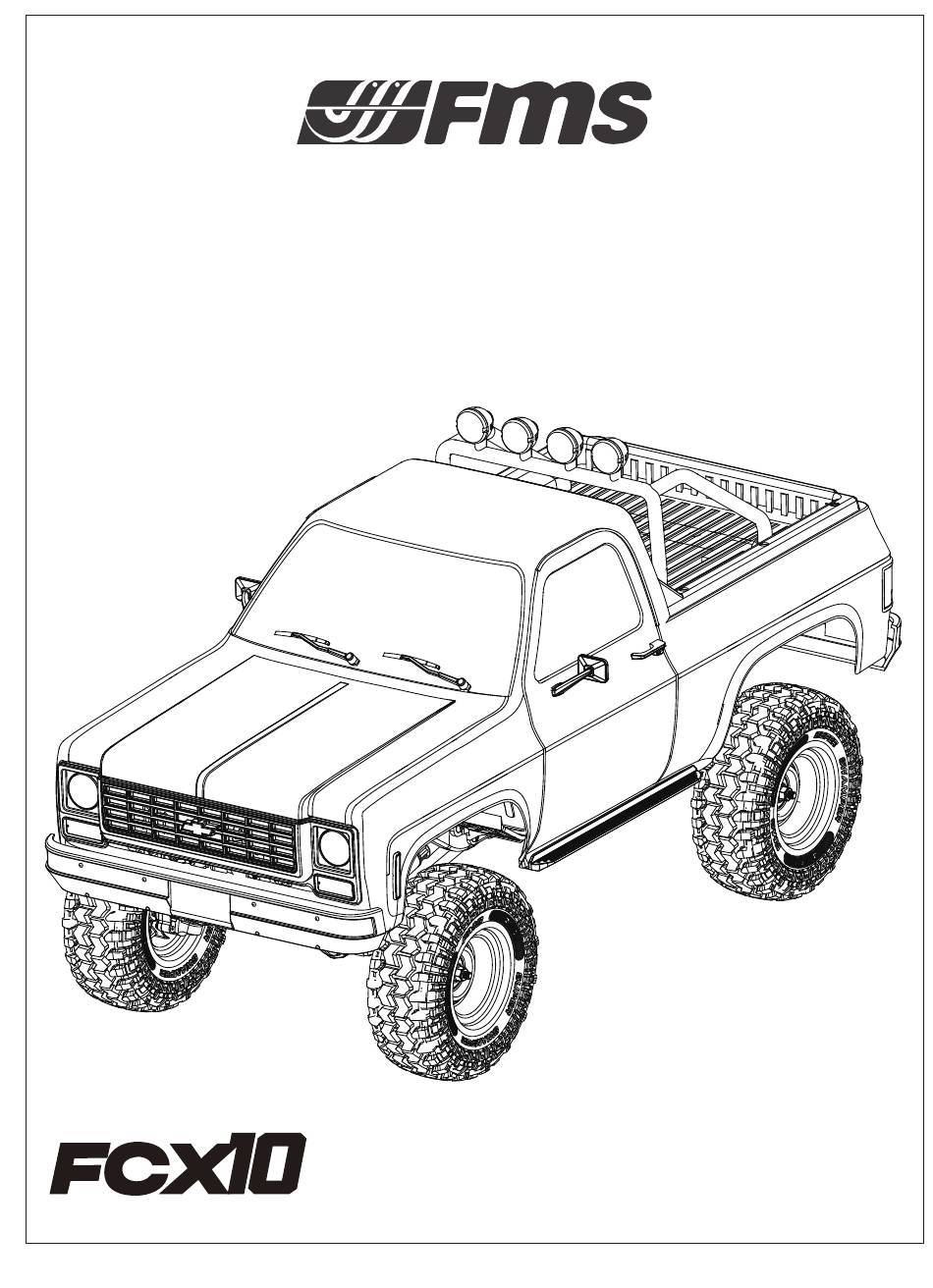

  • Page 1 1/10 Chevrolet K5 Blazer Instruction Manual MAN-G0268 操作手册...

  • Page 2: Safety Precautions

    Safety Precautions 安全保障措施 Disclaimer and Warning 免责声明与警告 Thank you for purchasing our product. This product is composed of precision components and is not a toy. It is not suitable for use by individuals under the age of 14. Please do not allow children to come into contact with this prod- uct.
  • Page 3 Safety Precautions 安全保障措施 • 请使用原厂部件更换损坏的部件。特别注意所有车辆接线的正负极。 • 务必选择合适的环境操作遥控模型，所选环境需远离电缆、无线电塔、深水及不稳定地形。 本品操作者对其行为全权负责。 • 本品由精密电子部件构成。请勿将本品暴露于潮湿的环境或者其他污染物中。 • 确保每次操作前检查车辆的无线接收范围，以防止无线信号丢失或受干扰。 • 在您的能力范围内操作此产品。在任何时候，如果车辆操作有危险，则绝对不值得冒险。 • 通电方式：务必先开遥控器再将车子通电。断电方式：务必先将车子断电再关遥控器。以上顺序如逆转，则可能引起遥控模型失 控，导致人身伤害或财产损失。 • 遥控器电池低电时，请勿操作模型车，以免出现失控。 • 模型产品上的塑胶件容易因极冷或极热气候出现变形或损坏的状况。所以请将模型产品存放在气候受控的室温环境中，切勿靠近 任何热源，如烤箱或加热器等。 This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 14 years old.
  • Page 4 Safety Precautions 安全保障措施 • Do not use this product when you are tired, uncomfortable, or under the influence of alcohol or drugs. Doing so may cause serious injury to yourself or others. • The 2.4GHz radio band is limited to line of sight. Always keep your model in sight as a large object can block the RF signal and lead to loss of control.

  • Page 5: Environmentally-Friendly Disposal

    Certifications 认证相关 DoC Declaration Hereby, [Flysky Technology Co., Ltd.] declares that the Radio Equipment [FS-MG11-BS]、[FS-R11D-ESC-BS] 、 [FS-DB01] is in compliance with RED 2014/53/EU. The full text of the EU DoC is available at the following internet address: www.flyskytech.com/info_detail/10.html CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter.
  • Page 6 As a young brand in the remote control model car field, FMS strives for innovation and improvement, learning and building on from the strengths of our compet- itors. The FCX10 chassis has launched after two years of development. It is compact, powerful, easy to maintain, and delivers outstanding performance.

  • Page 7: Product Introduction

    Long-term fans of FMS will be glad to know that our high standards for appearance have not been neglected in this pursuit of excellent performance. In addition to the electroplated front and rear bumpers and grille, special craftsman- ship stickers have been applied to restore the chrome-plated lines on the sides of the car body.
  • Page 8 Product Introduction 产品信息 大多大比例攀爬车的体验取向型和性能取向型的玩家并不太在意外观的像真度，但FMS的原则一贯是，你可以不要， 我不能不给。除了电镀格栅、前后保险杠以外，1/10 K5还使用特殊工艺贴纸还原侧面镀铬线条；出厂大灯, 前转向灯, 兩侧转向灯, 后转向灯, 倒车灯等均已预装完毕，车壳采用磁吸接口从底盘取电，遥控器一键唤醒全车灯光表达；此外 还附赠可拆卸后斗覆盖件和防滚架套件，SUV和PICKUP可随意切换。 FCX10 K5，与自由相遇，与冒险为伍，探索未知，征服挑战！ Features 特点 ●READY SET ●FCX10 SIMULATED CLIMBING CHASSIS ●GENERAL MOTORS CHEVROLET-AUTHORIZED K5 BODY SHELL ●RIGID METAL GIRDER ●METAL THREADED SHOCK ABSORBERS ●METAL GEARS FULL SET ●BALL BEARINGS FULL SET ●PORTAL AXLES (METAL GEAR)

  • Page 9: Specification

    Product Introduction 产品信息 Specification 产品参数 285mm 89mm 324mm 203mm 548mm 249mm ● Length:548mm ● Motor: 550 BRUSHED MOTOR ● Width:249mm ● Recommended Battery : 2S Lipo 7.4V 2000mAh x1 ● Height:285mm ● Remote control distance: 150m ● Wheelbase:324mm ● Remote control:2.4GHZ 11CH REMOTE CONTROL SYSTEM ●...
  • Page 10 Transmitter Intruction 发射机介绍 The FS-MG11-BS is a 11-channel transmitter that adopts the 2.4GHz 2A-BS Automatic Frequency Hopping Digital System. The transmitter is lightweight and compact in design, comfortable and ergonomic. The transimtter supports ESC parameters setting and compatible with variety of car models.. FS-MG11-BS 是一款使用...

  • Page 11: Getting Started

    Getting Started 使用前准备 Before operation, install the battery and connect the system as instructed below. 开始操作前，请按照本章的顺序和指引安装电池、连接设备。 Transmitter Antenna 发射机天线 The transmitter has a built-in antenna. When the transmitter starts to work, the antenna automatically operate, without additional operations. 本发射机天线为内置天线，发射机开始工作，天线自动工作， Receiver and Servo Installation 接收机与舵机安装...
  • Page 12 Getting Started 使用前准备 Transmitter Battery Installation 发射机电池安装 Only use specified battery (X4 AA batteries). Danger 注意 仅使用厂家指定的电池。 Do not open, disassemble, or attempt to repair the battery. Danger 注意 请勿打开、拆卸或自行维修电池。 Do not crush/puncture the battery, or short the external contacts. Danger 注意...

  • Page 13: Led Indicator

    操作指引 Instructions After setting up, follow the instructions below to operate the system. 准备操作完成后，您可以按照本章指引开始使用本产品。 Power On 开机 Follow the steps below to turn on the transmitter: 1. Check to make sure that the batteries are fully charged and installed correctly. 2.
  • Page 14 操作指引 Instructions Binding 对码 The transmitter and the receiver have been pre-bound before delivery. If you are going to use another receiver, follow the steps below to rebind. The transmitter supports two-way binding, the steps are as following: 1. Turn on the transmitter while holding the BIND button, then the transmitter will enter the binding mode. At this time, the G.LED will flash quickly.

  • Page 15: System Functions

    操作指引 Instructions Power Off 关机 Follow the steps below to turn off the system: 1. Turn off the receiver first. 2. Toggle the transmitter's power switch to the [OFF] position. 请按以下步骤关闭发射机： 1. 先断开接收机电源； 2. 将电源开关拨到 [OFF] 位置，关闭发射机。 Make sure to disconnect the receiver power before turning off the transmitter. Failure to do so Danger may lead to damage or serious injury.
  • Page 16 系统功能 System Functions Channel Reverse 通道反向 This function reverses the motion direction of steering channel, throttle channel, CH3, CH4, CH7 and CH8 servos.The ST.REV and TH.REV switches are reverse setting switches of steering channel and throttle channel respectively. Switches 3, 4, 5 and 6 of the 6-bit DIP switch are the reverse setting switches of CH3, CH4, CH7, and CH8, respective- ly.
  • Page 17 系统功能 System Functions 方向通道、油门通道和通道 4 微调调节 调节方向通道、油门通道和通道 4 微调。 ST.TRIM、TH.TRIM 和 TRIM 旋钮分别对应方向通道、油门通道和通道 4 微调调节。默认旋钮居中时，微调值为 0。 逆时针调 节时，则增大微调值，最大为 120us; 顺时针调节时，则减少微调值，最小为 -120us。注意当通道设置反向后，微调同步反向 ，即逆时针调节时减少微调值，顺时针调节时增大微调值。 功能设置： 顺时针或逆时针旋转通道对应的微调旋钮调节。过中位时，蜂鸣器响一声提示。 注：CH2 油门微调调整后，接收机须重新通电以识别新的油门中位，否则可能会出现倒车异常的现象。 比率设置 This function is used to adjust the rate of steering channel and throttle channel, so that the servo actions tend to be sensitive.
  • Page 18 系统功能 System Functions 5. Toggle CH6 Toggle Switch to the last position. Rotate the steering wheel to the appropriate travel point and hold it. Press BIND. The buzzer will be off at this time. The setting of this position is finished. 6.
  • Page 19 系统功能 System Functions 其他通道舵量调节 调节其他通道行程量。 功能设置： 1. 参照前面内容，使发射机进入舵量设置模式； 2. 操作要设置的通道所对应的控件； 3. 旋转手轮至合适的行程处并保持，按下对码按键 (BIND），蜂鸣器变为响 1 声循环提示； 4. 再一次旋转手轮至合适的行程处并保持，然后按下对码按键 (BIND），此时蜂鸣器关闭； 5. 长按对码按键 (BIND）一秒保存设置并退出舵量设置模式，此时蜂鸣器长响一声提示，G.LED 指示灯变为常亮。此通道舵量设完 成。 注： 1. 若设置过程中按操作控件时发射机无响应则表示设置失败， 请按功能设置重新设置。 2. 除方向通道和油门通道外，其他通道可在设置完上一通道舵量后，操作相应的控件触发其它通道的舵量设置。如当设置 CH3 通 道舵量，在蜂鸣器关闭后，可按下 CH4 按键，此时蜂鸣器变为响 2 声循环提示，即可继续设置 CH4 通道舵量。若设置完其他通道 后再设置方向通道或油门通道舵量，则须使发射机重新进入舵量设置模式后方可设置。 3. 在非油门通道舵量设置过程中，油门通道将保持正常输出 ESC Parameters Setting 电调参数设置...
  • Page 20 系统功能 System Functions 此功能适配二合一接收机使用。可通过发射机的拨码开关设置电调参数，即拨码开关位于不同位置对应参数值不同。有三个参数项 可以设置，分别是“运行模式”、“电池类型”、“拖刹力度”。 运行模式 正转 / 反转 / 刹车： 此模式采用的是“双击式倒车”，即油门扳机在第一次从中点区域推至反向区域时，电机只是刹车，不会产生 倒车动作；当油门扳机回到中点区域并第二次推至反向区域时，则产生倒车动作。此模式适用于一般车型。 正转 / 反转：此模式采用“单击式”倒车方式，即油门扳机从中点区域推至反向区域时，电机立即产生倒车动作，该模式一般用于 攀爬车等特种车辆。 六位拨码开关第 1 位开关用于设置电调运转模式，开关在上侧，表示电机运行模式为正转 / 反转；开关在下侧，表示电机运行模式 为正转 / 反转 / 刹车。 功能设置： 将拨码开关 1 拨至下侧，蜂鸣器响两声提示；将拨码开关 1 拨至 上侧，蜂鸣器响一声提示。 电池类型 有锂电和镍氢两种选择，根据实际使用情况设置即可。 六位拨码开关第 2 位开关用于设置电调电池类型，开关在上侧，表示电池类型为镍氢；开关在下侧，表示电池类型为锂电。 功能设置： 将拨码开关...
  • Page 21 系统功能 System Functions Idle Alarm 闲置报警 The transmitter will go into idle alarm state when there is no operation over 10 minutes. When the transmitter is in idle alarm state, the G.LED will be in gradual light state, and the buzzer will prompt with beep- ing twice cyclically.

  • Page 22: Transmitter Specifications

    发射机规格 Transmitter Specifications Product Model FS-MG11-BS FS-MG11-BS 产品型号 Compatible Receivers FS-FMS-R11D-ESC-BS 适配接收机 FS-R11D-ESC-BS、FS-R11P-BS Number of Channels Model car 适配模型 遥控车 Compatible Models 通道个数 2.4GHz ISM 2.4GHz ISM 无线频率 Maximum Power <20dBm (e.i.r.p.) （EU） <20dBm (e.i.r.p.) （EU） 发射功率 2.4GHz Protocol 2A-BS 2A-BS 无线标准...
  • Page 23 Receiver Introduction 接收机介绍 Receiver Overview 接收机概览 [17] [16] [15] [14] [13] [12] [11] [10] [20] [18] [19] [16] LED [11] Heatsink [1] CH1 Interface [6] CH7 [17]Antenna [12] Motor Interface "-" [2] CH3 Interface [7] CH8 [18]S(CH/Car LightInterfaceSignalPin) [13] Battery Interface [3] CH4 Interface [8] CH9 [19] "+"(CH/Car LightInterfaceAnode )
  • Page 24 Receiver Introduction 接收机介绍 ESC Function Instruction 电调功能说明 This receiver ESC function supports the settings of battery type, drag brake and running mode (forward/reverse, forward/reverse/brake) at the transmitter side. See the FS-MG11-BS transmitter manual for details. After the motor is connected, the receiver automatically recognizes the throttle neutral every time it is powered on. •When the connected battery type is lithium-ion, such as 2S LiPo, the motor fast beeps twice (3 beeps represent 3S LiPo).
  • Page 25 Receiver Introduction 接收机介绍 Car Lights Car Light State Control State Control Trigger Condition Notes 车灯 车灯状态 控制状态 控件 触发条件 备注 Left Turn Slow Flash Turn Left Steering Turn the sterring wheel Signal Light Wheel counter clockwise. If you set the steering chan- nel in reverse, the trigger condition for left and right turn signal lights will not be...

  • Page 26: Receiver Specifications

    接收机规格 Receiver Specifications Product Model FS-R11D-ESC-BS 产品型号 FS-R11D-ESC-BS Adaptive Transmitters FS-MG11-BS 适配发射机 FS-MG11-BS Number of Channels Model car 适配模型 遥控车 Compatible Models 通道个数 Number of Car 6 (LED car light interface 车灯组数 6（LED 车灯接口连接 Light Interfaces connects to FS-DB01) FS-DB01 车灯驱动板） Compatible Models 2.4GHz ISM 2.4GHz ISM...
  • Page 27 Car Light Drive Board 车灯驱动板 FS-DB01 is a car light driver board for the FS-R11D-ESC-BS receiver.This light board has 6 sets of car light interfaces, and each set of car light can be independently controlled. The waterproof rate is PPX4. FS-DB01 是一款适配...
  • Page 28 Car Light Drive Board 车灯驱动板 Car Light Drive Board Specifications 车灯驱动板信息 Product Model FS-DB01 产品型号 FS-DB01 Adaptive Receivers FS-R11D-ESC-BS FS-R11D-ESC-BS 适配接收机 Adaptive Model RC Car 适配模型 RC Car Number of Car 车灯组数 Light Interfaces Input Power 3.5~8.4V/DC 输入电源 3.5~8.4V/DC Working Current 20mA/5V 工作电流...

  • Page 29: Troubleshooting

    Troubleshooting 故障快速处理 Troubles Possible Causes Solutions 故障现象 可能原因 解决方法 The motor cannot start and 1. The ESC has no working voltage. 1. Check whether there is any connection the LED is not on after 2. The switch of ESC or ESC itself is problem between the battery and ESC and power-on.
  • Page 30 Vehicle Setup 车辆设置 • Never charge or store battery packs in a vehicle. • Do not discharge LiPo, doing so will damage the battery. • Do not expose LiPo cell to water or moisture at any time. • Do not store battery near open flame or heater. •...
  • Page 31 Vehicle Setup 车辆设置 1. Gently push the front latches forward and the rear latches backward to separate the car shell from the chassis. 2. As shown in the diagram, place the battery inside the battery compartment and secure it in place using the included battery strap，Connect the battery to the RX/ESC 2-in-1 unit (batteries sold separately, recommended batteries are advised).

  • Page 32: Spare Parts List

    Spare Parts List 配件列表 C3273 Car boby assembly painted black 车壳总成黑色 C3272 Car boby assembly painted orange 车壳总成橙色 C3197 Car boby assembly painted brown 车壳总成棕色 C3198 Clear car boby kit 透明车壳散件 C3205 Transmission gear box assembly 驱动牙箱总成 C3206 Transmission gear box housing 驱动牙箱壳胶件...
  • Page 33 Spare Parts List 配件列表 C3245 Bushing set 套筒介子 C3246 Steering horn arm 转向舵机臂 C3247 25KG metal gear servo waterproof 25KG金属齿舵机 C3248 13G metal gear servo waterproof 13G金属齿舵机 C3249 13G servo saver set with horn arm 13G舵机护器及舵机臂 C3250 Front bumper set 前防撞...
  • Page 34 CN:油压避震 EN: Oil Shock Absorbers Assembly C3218...
  • Page 35 CN:换挡舵机 EN: Shift-gear Servo C3248 C3249 C3249 C3249 CN:锁差舵机 EN:Differential- lock Servo C3247 C3249 C3249 C3249...
  • Page 36 CN:轮胎组 EN:Wheel Set C3217 C3216 C3216...
  • Page 37 CN:传动轴 EN:Transmission Shaft Assembly C3219 C3219 C3219 C3219 C3219 C3219 C3219...
  • Page 38 CN:中传动牙箱 EN:Transmission Gear Box Assembly C3205 C3211 C3266 C3206 C3208 C3206 C3208 C3210 C3209 C3211 C3208 C3208 C3268 C3206 C3206...
  • Page 39 C3206 C3212 C3213 C3213 C3213 C3266 C3211 C3212 C3212 C3213 C3266 C3211 C3212 C3266...
  • Page 40 CN:前桥总成 EN: Front Axle Assembly C3227 C3227 C3236 C3242 C3266 C3266 C3236 C3245 C3231 C3231 C3238 C3238 C3227 C3231 C3243 C3239 C3227 C3266 C3239 C3239 C3239 C3232...
  • Page 41 C3214 C3243 C3247 C3243 C3246 C3234 C3236 C3266 C3232 C3238 C3240 C3231 C3245 C3266 C3227 C3238 C3236 C3242...
  • Page 42 CN:后桥总成 EN:Rear Axle Assembly C3242 C3237 C3243 C3236 C3236 C3266 C3238 C3238 C3243 C3243...
  • Page 43 C3215 C3233 C3239 C3239 C3239 C3239 C3239 C3237 C3233 C3236 C3238 C3266 C3236...
  • Page 44 CN:车架半成品A EN:Semi-finished Chassis Set A C3221 C3221 C3221 C3226 C3221 C3223 C3222 C3224 C3220 C3225 C3225 C3225 C3227 C3227...
  • Page 45 C3223 C3339 C3205 C3228 C3222 C3222 C3228 C3227 C3222 C3228 C3267 C3221 C3223 C3226 C3221 C3227 C3220...
  • Page 46 CN:车架半成品B EN:Semi-finished Chassis Set B C3226 C3230 C3214...
  • Page 47 C3230 C3226 C3231 C3231 C3215...
  • Page 48 CN:车架成品 EN:Finished Chassis Set C3250 C3250...
  • Page 49 C3251 C3218 C3218 C3268 C3244 C3217...
  • Page 50 CN:车壳半成品 EN:Semi-finished Shell Body Set C3254 C3256 C3256 C3273/C3272/C3197 C3339 C3339 C3253 C3253...
  • Page 51 CN: 车壳成品组 EN: Finished Shell Body Set C3257 C3260 C3258 C3258 C3258 C3258 C3273/C3272/C3197 C3260 C3261 C3259 C3261 C3262 C3262...
  • Page 52 CN:整车产品 EN:Vehicle...
  • Page 53 CN:货斗盖 EN: Cargo Cover 1. Use a hole opener to make holes in the shown screw mounting positions (aperture is about 3.2mm) 2. Secure the cargo cover in place using the attached screws and pressers. 1. 使用开孔器在图示螺丝安装位置开孔 （孔径约为3.2mm） 。 2. 使用所附螺丝和压片将车斗盖固定到 位。...
  • Page 54 CN: 顶灯安装 EN:Overhead lighting installation Press the transparent light pieces into the lamp cups, and then install the lamp cups on the anti-roll cage using the attached screws. Note: To facilitate installation, remove the anti-roll cage from the vehicle first. 先将透明灯片压扣进灯杯里，...
  • Page 55 Foshan Zhengze Model Technology Co., Ltd. Tel:+86-0757-26330080 E-mail:support@fmsmodel.com Add: Unit A, Building 6, Jicheng Science and Technology Innovation Park, Shunde, Foshan City, Guangdong Province, 528306 佛山市正泽模型科技有限公司 电话： 86-0757-26330080 邮箱： support@fmsmodel.com 地址及电话： 广东省佛山市顺德区北滘镇顺江社区三乐东路25号集成科创园 6栋 中国代理 车模 航模 酷乐派模型 KLP Racing 苏州雷飞航模车模 蓝飞驰模型...
  • Page 56 MADE IN CHINA...
