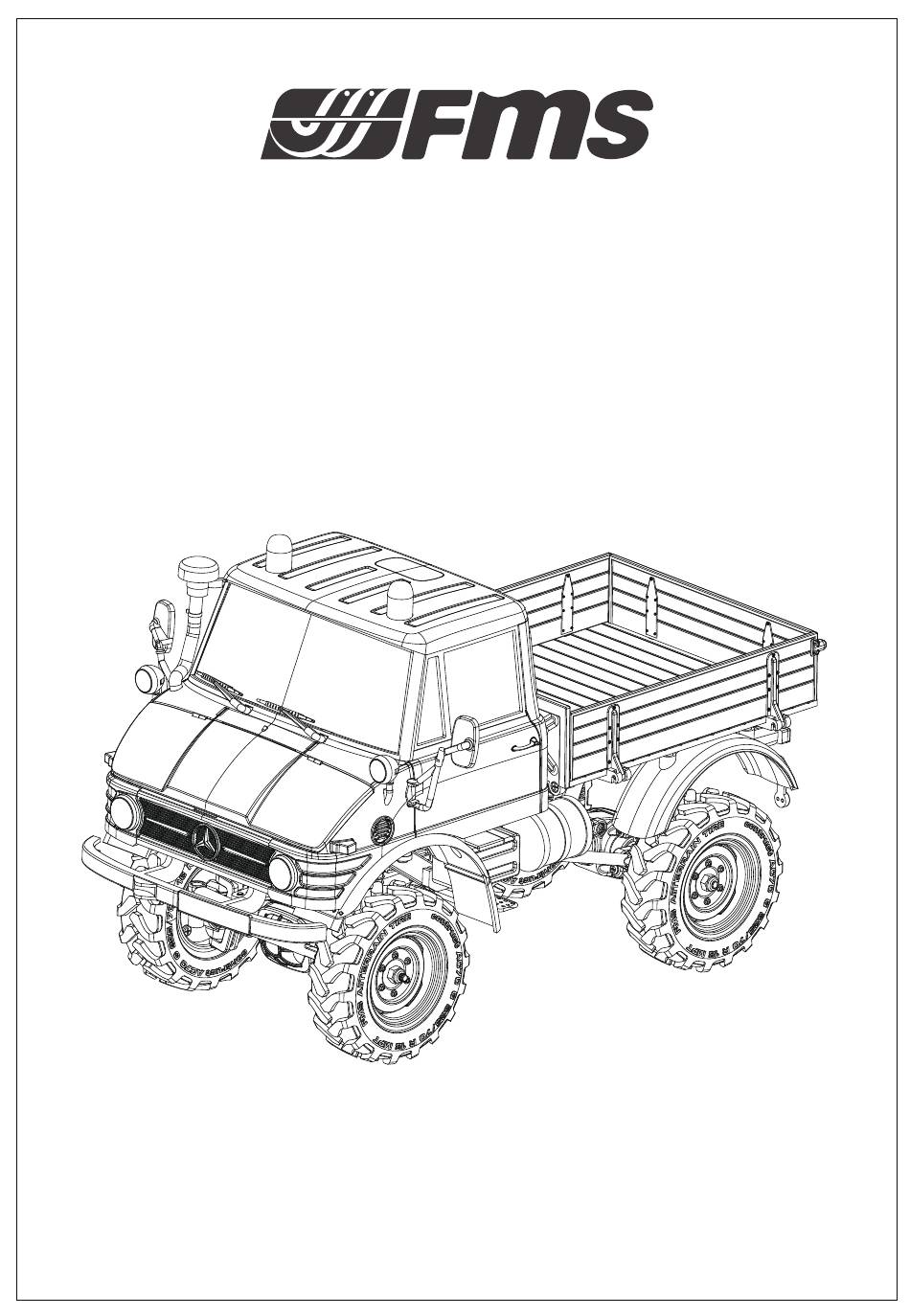

1:24 FCX24
UNIMOG
Instruction Manual
操作手册
MAN-G0253

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1:24 FCX24 UNIMOG and is the answer not in the manual?

Questions and answers

Related Manuals for FMS 1:24 FCX24 UNIMOG

Summary of Contents for FMS 1:24 FCX24 UNIMOG

  • Page 1 1:24 FCX24 UNIMOG Instruction Manual 操作手册 MAN-G0253...
  • Page 2 Failure to operate or maintain this product in a safe manner can result in bodily harm. It is the owner responsibility to operate this product in a safe manner. FMS and its distributors are not responsible in any way for any and all bodily harm and/ or property damage that may result from the use of this product.

  • Page 3: Appendix 1 Fcc Statement

    认证相关 Certifications DoC 自我说明 DoC Declaration Hereby, we declare that the Radio Equipment [【FMS-G3&FMS-R3A] is in compliance with RED 2014/53/EU. 特此，我们声明无线电设备【FMS-G3&FMS-R3A】符合 RED 2014/53/EU。 CE 警告语 CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter.
  • Page 4 Not following these instructions may lead to minor injuries. Attention 注意 如果使用者不按照说明方法操作，有可能导致操作者或他人受到轻微伤害。 Warning Not following these instructions may lead to major injuries. 警告 如果不按照说明方法操作，可能导致操作者或他人遭受较大伤害。 Not following these instructions may lead to serious injuries or death. Danger 危险 如果不按照说明方法操作，可能导致操作者或他人严重受伤，甚至遭受生命危险。 安全信息 Safety Guide •...

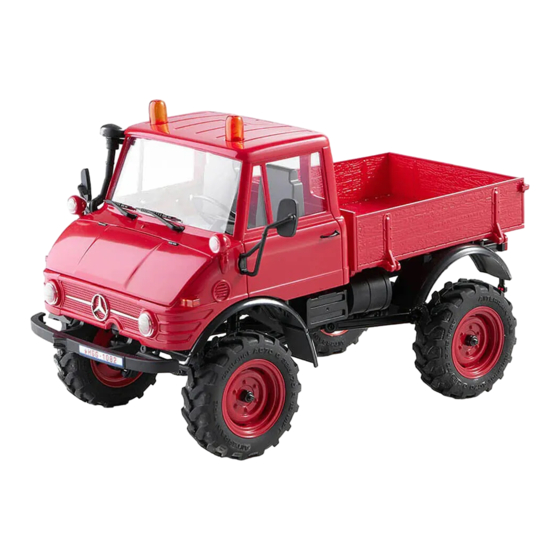

  • Page 5 Authorized by Daimler-Benz AG, this 1/24 scale remote-controlled simulation model of the Unimog421, introduced by FMS, maintains a consistently high level of visual simulation. This model is designed for typical special transport scenarios and can handle transportation tasks in complex road conditions. It features a highly restored grille, widened rear-view mirrors and snorkel, and two orange warning lights on the roof.

  • Page 6: Product Introduction

    FCX24 chassis. In addition to further improving the performance of the vehicle, these parts also provide a variety of personalized options. Unimog dominates all kinds of complex terrain. As always, you can trust FMS. 由戴姆勒-奔驰汽车公司授权，FMS模型出品的这款遥控仿真模型车1/24 乌尼莫克421（Unimog 421)在外观仿真度方面仍旧保持一...
  • Page 7 产品信息 Product Introduction 产品参数 Specification 160mm 40mm 142mm 90mm 153mm 249mm ● Length:249mm ● Motor: 130 Brushed motor ● Width:153mm ● Battery : 2S Lipo 7.4V 380mAh x1 ● Height:160mm ● Remote control distance: 30m ● Wheelbase:142mm ● Approx. operating duration time: 20mins ●...
  • Page 8 Transmitter instruction The product adopts the 2.4GHz AFHDS 2A-BS Automatic Frequency Hopping Digital System which consist of FMS-G3 transmitter and FMS-R3A receiver. It supports two-way transmission, featuring 3-channel and compatible with variety of car models. 本系统采用 2.4GHz AFHDS 2A-BS 协议，由 FMS-G3 发射机和 FMS-R3A 接收机组成。支持双向传输、共输出 3 个通道、兼容多种车模型。...
  • Page 9 发射机概览 Transmitter Instruction 接收机概览 Overview [1] Motor Interface [4] [5] 马达接口 [2] Battery Lines(Molex51005 Female Interface) 电池接线 (Molex51005 母座接口 ) [3] Power Switch 开关盒 [4] Antenna 天线 [5] LED 指示灯 [6] CH3 [7] CH1 [8] Car Light 车灯 接收机指示灯 The LED Status of the Receiver The LED status indicates the power supply state of the receiver and its working state.
  • Page 10 使用前准备 Getting Started 发射机天线 Transmitter Antenna The transmitter has a built-in antenna. When the transmitter starts to work, the antenna automatically operate, without additional operations. 本发射机天线为内置天线，发射机开始工作，天线自动工作，无需单独进行操作 ! 接收机与舵机安装 Receiver and Servo Installation Make sure that the receiver is mounted in an appropriate location within the model, to ensure a stable signal, Pay attention to the following when installing the receiver: 1.
  • Page 11 使用前准备 Getting Started 电池类型使用：AAA 电池 请按照以下步骤安装发射机电池： 1. 打开电池仓盖。 2. 将 4 颗电量充足的 AAA 电池装入电池仓内，注意正负极方向并确保电池上的金属端子与电池仓内的金属端子接触。 3.盖好电池仓盖。 低电量报警：当电量低于 4.2V 时，发射机即发出声音报警同时 LED 慢闪 操作指引 Operation Guide 开机 Power-on Follow the steps below to turn on the transmitter: 1. Check to make sure that the batteries are fully charged and installed correctly. 2.
  • Page 12 操作指引 Operation Guide 发射机和接收机在出厂前已对码成功。 如需更换其他的发射机或接收机，请按照下述步骤重新对码。本发射机支持双向传输，对码步骤如下： 1.按住发射机的 BIND键，并将 POWER键拨至 [ON] 位置 ,发射机即进入对码状态，此时发射机机指示灯快闪 ,松开对码键； 2.接收机通电进入对码状态； 3.接收机 LED 灯常亮，即对码成功（发射机对码成功后自动退出对码状态）； 4.检查发射机、接收机是否正常工作。如需重新对码，请重复以上步骤。 注：若十秒内对码没有完成，接收机 LED 指示灯进入慢闪状态。 摇杆校准 Stick Calibration This function is used to set the neutral position for throttle trigger and steering wheel. Every transmitter is calibrated before leaving the factory, however if recalibration is required, please follow these steps: 1.

  • Page 13: System Functions

    系统功能 System Functions Channel Assigned Control Function 通道 已分配的控件 功能 Steering (To make the model car to turn right or left.) Steering Wheel 方向手轮 方向（控制车子左右转向。） (To control the model car to move forward or backward.) Throttle Trigger Throttle 油门扳机 油门（控制车子前后行驶。） Three-position Fast-/Median-/slow-position servo channel, to switch the speed positions of the switch CH3...
  • Page 14 系统功能 System Functions 通道反向 Channel Reverse To reverse the output direction of the channel. • When the steering wheel is located in the maximum travel or minimum travel, press the REV button to reverse CH1. When you press once, it switches once. •...
  • Page 15 系统功能 System Functions 失控保护 Failsafe Setting The failsafe function is used to protect the model and personnel when the receiver is out-of-control. The CH2 will be in brake mode when the receiver is out-of-control. By default, and the receiver will keep outputting the last channel value in case of out-of-control. •...
  • Page 16 Note: When the transmitter received the information of the bound receiver again, it will exit the offline prompt state. 当发射机在正常工作状态下，检测到已对码的接收机未开机、已关机或掉码时间大于 2S 时，发射机指示灯三闪一灭提示。 注：若收到已对码的接收机回传信息后，即退出离线提示状态。 FMS-R3A 功能说明 FMS-R3A Function Instructions 注意事项 Attentions • Make sure the product is installed and calibrated correctly, failure to do so may result in serious injury.
  • Page 17 本接收机支持失控保护功能，需要发射机端设置，操作步骤请查看 [失控保护 ]。 G3 产品规格 G3 Specifications 发射机规格 Transmitter Specifications • Product Model: FMS-G3 • Charging Port: No • Compatible Receivers: FMS-R3A • Low Voltage Alarm: < 4.2V • Compatible Models: 1:18, 1:24 simulation cars or climbing cars • Antenna: Built-in single antenna •...

  • Page 18: Vehicle Setup

    G3 产品规格 G3 Specifications • 产品型号：FMS-R3A • 遥控距离：>100m（空旷无干扰地面距离） • 适适配发射机：FMS-G3 • 天线类型：外置单天线 • 适配模型：1：18、1：24 仿真或攀爬准模型车 • 数据输出：PWM • 适配电机：130 有刷电机 • 通道分辨率：1024 级 • PWM 通道：2 • 温度范围：-10℃~+60℃ • 车灯组数：1 • 湿度范围：20%~95% • 无线频率：2.4GHz ISM • 在线更新：无 • 无线协议：AFHDS 2A-BS •...
  • Page 19 车辆设置 VEHICLE SETUP 电池注意事项 Battery Precautions • Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery chemis- try. Use ONLY charger designed for LiPo battery. • Do not leave LiPo battery unattended during charging. •...
  • Page 20 Spare parts list 配件列表 前桥总成 五金轴承 C3017 Front axle assembly C3039 Bearing set 泥地轮胎 门桥金属齿轮 C3040 Nud tire C3059 Portal axle metal gear 传动轴A 前防撞 C3281 Front bumper C3063 CVD axle set A 单球头螺丝 避震器 C3087 Oil shock absorbers assembly C3074 ball head screw 后视镜及雨刷...
  • Page 21 EN: Oil Shock Absorbers Assembly CN:避震器 C3087 CN:车轮 EN:Wheels C3040...
  • Page 22 CN:两档变速箱总成 EN:Transmission Gear Box Assembly C3012 C3025 C3032 C3013 C3014 C3015 C3014 C3013 C3015 C3015 C3025 C3014 C3033...
  • Page 23 CN:前桥总成 EN:Front Axle C3021 C3019 C3039 C3062 C3019 C3023 C3020 C3039 C3039 C3039 C3015 C3062 C3061 C3035 C3111 C3111 C3111...
  • Page 24 C3017 C3025 C3018 C3039 C3020 C3039 C3062 C3039 C3019 C3018 C3023 C3020 C3021...
  • Page 25 CN:后桥总成 EN:Rear Axle C3021 C3019 C3022 C3019 C3018 C3063...
  • Page 26 C3026 C3018 C3019 C3022 C3019 C3021...
  • Page 27 CN:车架半成品组 EN:Semi-finished Chassis C3036 C3081 C3012 C3001 C3304 C3028 C3028 C3026 C3017 C3035...
  • Page 28 CN:车斗组 EN:Car Hopper Group C3299/C3300/C3301 C3299/C3300/C3301 C3295 C3297 C3297...
  • Page 29 CN:车架成品组 EN:Finished Chassis C3074 C3087 C3075 C3028 C3087 C3040 C3111...
  • Page 30 C3074 C3087 C3028 C3075 C3034 C3040...
  • Page 31 CN:车壳成品组 EN:Finished Hard Body Set C3288 C3284/C3285/C3286 C3282 C3287 C3282 C3289/C3290/C3291 C3295 C3295 C3283 C3296 C3298 C3298 C3281 C3297...
  • Page 32 CN:整车 EN:Vehicle Group C3305...
  • Page 33 MADE IN CHINA...
