System Functions
比率设置
D/R

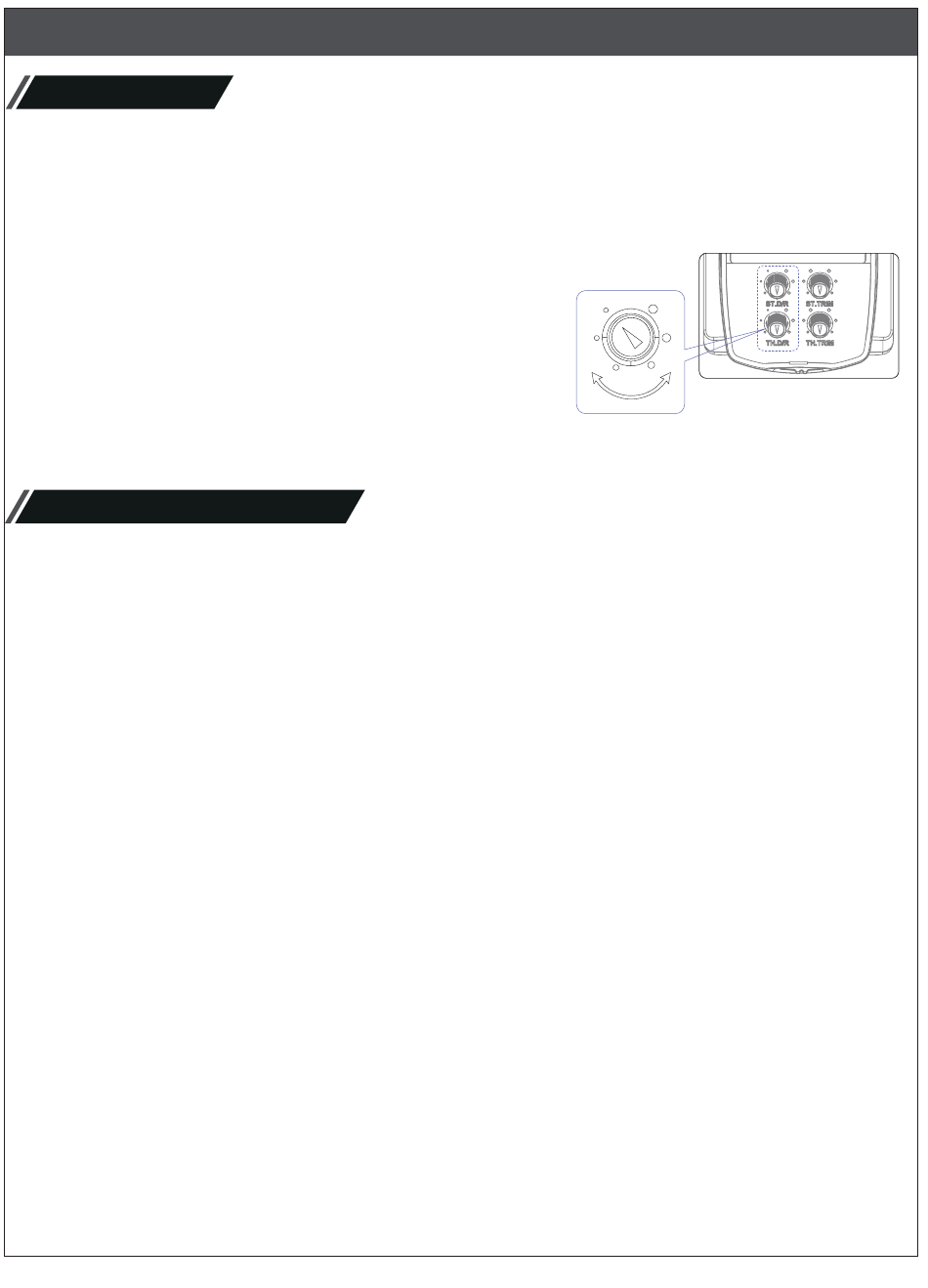

This function is used to adjust the rate of steering channel and throttle
channel, so that the servo actions tend to be sensitive.
ST.D/R is used to adjust the steering channel rate. TH.D/R is used to
adjust the throttle channel rate. Turning the knob anticlockwise will
increase the value. Turning the knob clockwise will decrease the
value. Smaller values indicate finer adjustment. The range is from 0 to
100%.
Setup:
Turn the D/R knobs corresponding to the channel clockwise or coun-
terclockwise for D/R adjustment. The buzzer will have one beep when
the position is reached to the center.
该功能用于调节方向通道和油门通道的比率，使舵机动作趋于灵敏。
ST. D/R 和 TH.D/R 旋 钮 分 别 对 应 方 向 通 道 和 油 门 通 道 比 率 调 节。逆时
针调节数值增大，反之减小。数值越小调节越细腻，调节范围为0~100%。
功能设置：
顺时针或逆时针旋转通道对应的比率调节旋钮调节。过中位时，蜂鸣器响一声提
示。
End Point Adjustment
This function is used to adjust the end points of all channels.
By default, it is used to set the steering channel end points. The end points setting of the others can be triggered by
operating the control corresponding to this channel.
Steering Channel End Point Adjustment
Adjust the end points of steering channel (the control of steering channel is steering wheel).
Setup:
1. In the power-on status, press BIND twice, then the transmitter enters the end point setting mode. At this time, G.LED
will work in two-flash-one-off mode repeatedly, and the buzzer will prompt with beeping twice cyclically.
2. Rotate the steering wheel to the appropriate travel point and hold it. Press BIND. The buzzer will prompt with beep-
ing once cyclically.
3. Take the center of the steering wheel as the reference, reverse the rotation of the steering wheel to the appropriate
travel point and hold it. Press BIND. The buzzer will be turned off at this time.
4. Press BIND for one second to save the setting and exit the end point setting mode. The buzzer will give a long beep,
and the G.LED will be solid on. The end points setting of the steering channel is finished.
CH6 End Point Adjustment
Adjust the end points of CH6 (the control of CH6 is CH6 Three-position Toggle Switch).
Setup:
1. In the power-on status, press BIND twice, then the transmitter enters the end point setting mode. At this
time,G.LED will work in two-flash-one-off mode repeatedly, and the buzzer will prompt with beeping twice cyclically.
2. Toggle CH6 Three-position Toggle Switch to one position. The buzzer will prompt with beeping three times
cyclically.
3. Rotate the steering wheel to the appropriate travel point and hold it. Press BIND. The buzzer will prompt with
beeping twice cyclically. The setting of this position is completed.
4. Toggle CH6 Three-position Toggle Switch to another position. Rotate the steering wheel to the appropriate travel
point and hold it. Press BIND. The buzzer will prompt with beeping once cyclically. The setting of this position is
finished.
5. Toggle CH6 Three-position Toggle Switch to the last position. Rotate the steering wheel to the appropriate travel
point and hold it. Press BIND. The buzzer will be off at this time. The setting of this position is finished.
6. Press BIND for one second to save the setting and exit the end point setting mode. The buzzer will give a long
beep, and the G.LED will be solid on. The end points setting of CH6 is finished.
Note: The end point values of at least two positions should be set.
