Page 2
TABLE OF CONTENTS ..............SAFETY PRECAUTIONS ................RADIO SYSTEM ............. THROTTLE STICK POSITION ................VEHICLE SETUP ..............OPERATING THE VEHICLE ..............CAR BODY ASSEMBLY ..............CHASSIS ASSEMBLY ..............COCKPIT ASSEMBLY ..............FRONT AXLE ASSEMBLY ............... MAIN GEAR BOX ASSEMBLY ..............REAR AXLE ASSEMBLY ...............
Page 3
It is the owner responsibility to operate this product in a safe manner. FMS and its distributors are not responsible in any way for any and all bodily harm and/ or property damage that may result from the use of this product.
Page 4
Please read this manual carefully prior to using.We are not responsible for any intention- al damage or improper use.lf you require any additional information or have any quesions adout he product or its use,please contact us via(www.fmsmodel.com). This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision MADE IN CHINA required for ages under 14 years old.
Page 5
RADIO SYSTEM Safety symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Attention Not following these instructions may lead to minor injuries. Warning Not following these instructions may lead to major injuries. Danger Not following these instructions may lead to serious injuries or death.
Page 6

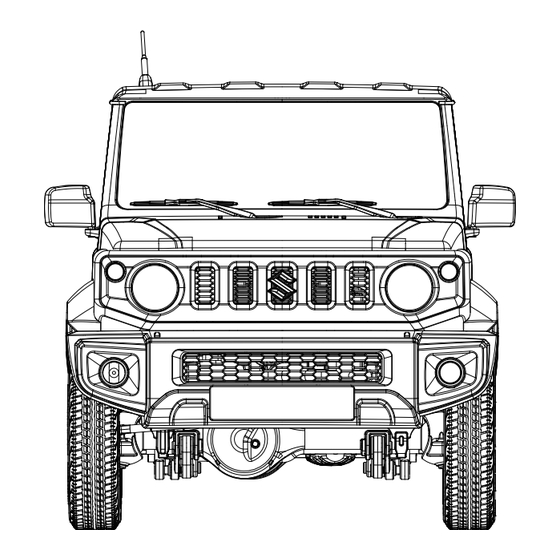

Introduction From the amazingly detailed interior, outer body, chassis and suspension, this is an RC model that replicates its full-size counterpart in virtually every area. The 1:12 Suzuki Jimny is ready to conquer the wilderness. Realistic Body Details • Officially licensed product of the Suzuki Motor Corporation. •...
Page 7
Transmitter intruction Introduction FS-R4A1 based on ANT protocol is a three-in-one receiver with ESC and LED light group control board. It has an external single antenna, can output PWM signal and light control signal, can implement two-way transmis- sion, adopts automatic binding, and has a compact design, which can be adapted to various model cars. Transmitter Overview [12] [13]...
Page 8
Overview [10] [1] CH1 [14] Motor port "+" [2] CH3 [15] Motor port "-" [11] [3] CH4 [16] Stickers [12] [4] Left-turn light port [17] LED [13] [14] [5] Head light port [18] Left-turn light port [15] [6] Right-turn light port [19] Right-turn light port [16] [17] [18]...
Page 9
ESC protection This receiver has multiple prompt functions such as power-on self-check display, overheating alarm prompt, and low/high voltage alarm prompt. • Self-check display: all car lights will be on for 1S when the receiver is powered on; • Overheating alarm: When the internal temperature of the ESC is detected to exceed 110℃ ,motor has no output, all car lights flash promptly, and the normal output will be restored when the temperature is lower than 70℃...
Page 10
2. Normal boot, identification throttle midpoint: After connecting related equipment as step 1, turn on the radio first, move the throttle trigger to the neutral posi- tion. Turn on the switch of ESC at last. The receiver will automatically recognize the battery type when it is pow- ered on again.
Page 11
The Dial Switch on the transmitter is used to set ESC parameters, that is, the Dial Switch is located at different posi- tions and the corresponding parameter values are different. Setting Method: There are three parameters can be set for the ESC, which are "Running mode", "Battery type", "Drag brake", There are slide switches numbered 1 2 3 4 on the radio panel .
Page 12
Lighting function Times for Pressing Power on Light Function is off by Control Mod Remarks Button Position default White • headlights OFF OFF OFF keep on Headlight White headlights • • keep on with high brightness • • • Taillights keep on Taillights turn red...
Page 13
Getting started Before operation, install the battery and connect the system as instructed below. Transmitter Battery Installation Only use specified battery (X4 AA batteries). Danger Do not open, disassemble, or attempt to repair the battery. Danger Danger Do not crush/puncture the battery, or short the external contacts. Do not expose to excessive heat or liquids.
Page 14
2、 POWER OFF Follow the steps below to turn off the system: 1.Disconnect the receiver power. 2.Toggle the transmitter's power switch to the off position. Make sure to disconnect the receiver power before turning off the transmitter. Failure Danger to do so may lead to damage or serious injury. Instructions 1.Transmitter specification Product Model...
Page 15
THROTTLE STICK POSITION Throttle stick position Neutral point Top point of forward direction Top point of backward direction VEHICLE SETUP Connecting the battery Step 1: open the hood. Step 2: place the battery in the battery box and connect the battery plug.
Page 16
OPERATING THE VEHICLE Step 1: turn on the transmitter, the headlamp of the transmitter will flash and enter the frequency matching mode. Step 2: turn on the receiver switch, the headlight will flash and enter the frequency matching mode. Step 3: when the transmitter and receiver are successful in frequency up, the front lights of the transmitter will be on for a long time, and the front lights of the vehicle will be off.
