FMS 1/24 FCX24 MAX SMASHER Instruction Manual

Hide thumbs Also See for 1/24 FCX24 MAX SMASHER:

Advertisement

Table of Contents

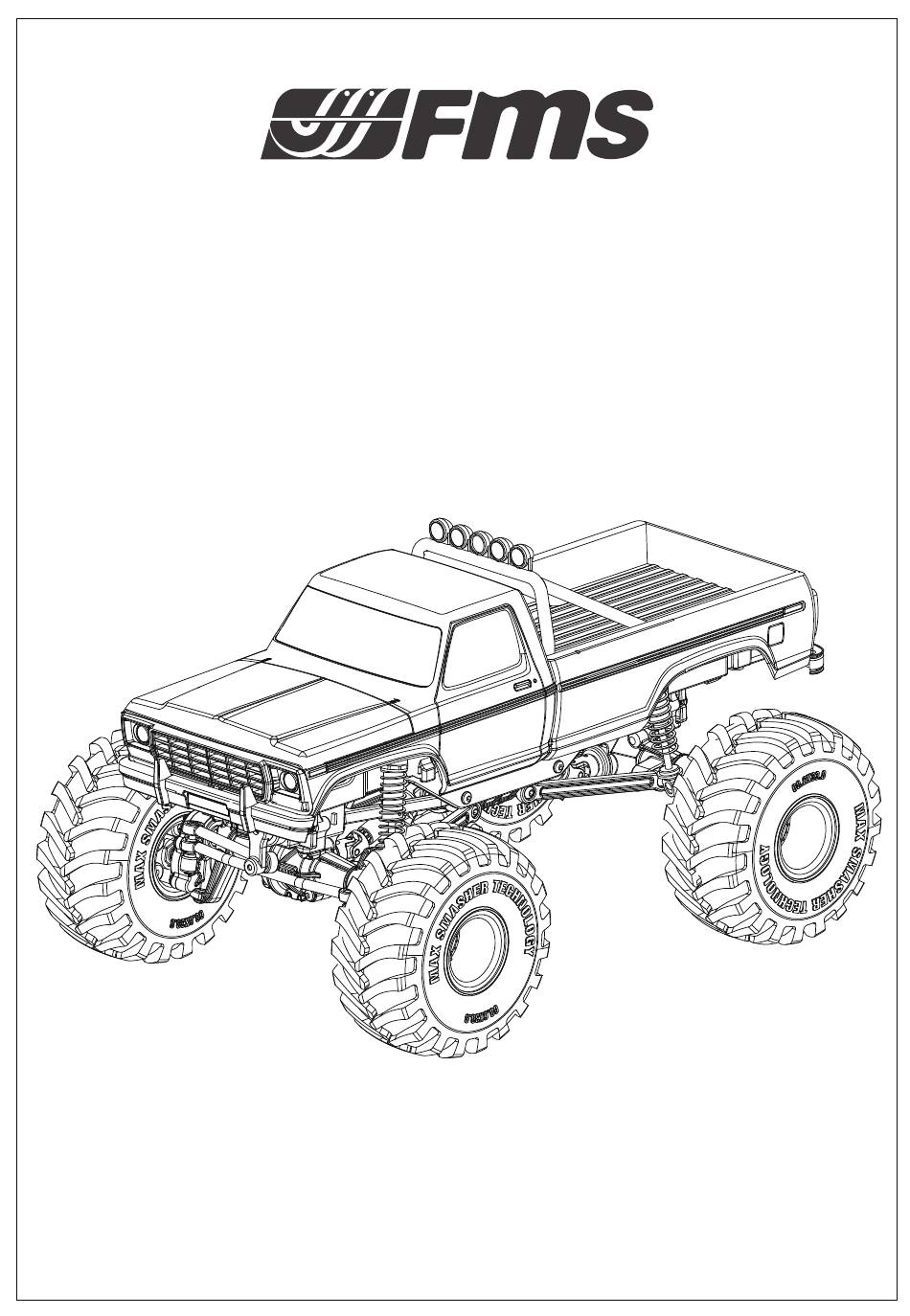

1:24 FCX24
MAX SMASHER
Instruction Manual
操作手册
MAN-G0184

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1/24 FCX24 MAX SMASHER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FMS 1/24 FCX24 MAX SMASHER

Summary of Contents for FMS 1/24 FCX24 MAX SMASHER

  • Page 1 1:24 FCX24 MAX SMASHER Instruction Manual 操作手册 MAN-G0184...

  • Page 2: Safety Precautions

    Failure to operate or maintain this product in a safe manner can result in bodily harm. It is the owner responsibility to operate this product in a safe manner. FMS and its distributors are not responsible in any way for any and all bodily harm and/ or property damage that may result from the use of this product.

  • Page 3: Radio System

    CE compliance information for the european union The associated regulatory agencies of the following countries recognize the noted certifications for this product as authorized for sale and use. Declaration of Conformity Item Name : 2.4GHz Controller Products: 2.4GHz Controller The RED Directive 2014/53/EU Equipment Class: 2 EN 60950-1:2006 + A11:2009 + A1:2010 The objects of declaration described above are in...
  • Page 4 Not following these instructions may lead to minor injuries. Attention 注意 如果使用者不按照说明方法操作，有可能导致操作者或他人受到轻微伤害。 Warning Not following these instructions may lead to major injuries. 警告 如果不按照说明方法操作，可能导致操作者或他人遭受较大伤害。 Not following these instructions may lead to serious injuries or death. Danger 危险 如果不按照说明方法操作，可能导致操作者或他人严重受伤，甚至遭受生命危险。 Safety guide 安全信息...

  • Page 5: Product Introduction

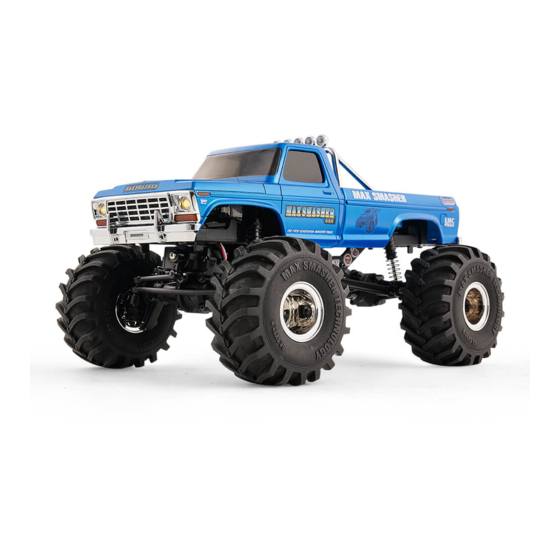

    About Model 产品介绍 The FMS 1/24 Bigfoot model-MAX SMASHER adopts the FCX24 chassis. The huge hollow tires provide excellent shock absorption. The two-speed gearbox, controlled by the third channel, can not only provide strong torque, but also support high-speed off-road driving. The front and rear axles are equipped with planetary gear differentials by default, which is conducive to high-speed off-road driving, posture simulation and outstanding cornering performance.

  • Page 6: Specification

    PRODUCT INTRODUCTION 产品信息 Features 产品特点 ● Ready to run model ● Four link suspension ● Two speed transmission (controlled by the third channel) ● High strength integrated nylon frame ● Front and rear axle planetary gear differentials ● Rapid separation car body ●...
  • Page 7 Transmitter intruction 发射机介绍 FS-R4A1 based on ANT protocol is a three-in-one receiver with ESC and LED light group control board. It has an external single antenna, can output PWM signal and light control signal, can implement two-way transmission, adopts automatic binding, and has a compact design, which can be adapted to various model cars. FS-R4A1采用ANT协议，是一款电调、LED灯组控制板三合一接收机，外置单天线，可输出PWM信号和车灯控制...

  • Page 8: Specifications

    Overview 接收机概览 [1] CH1 [14] Motor port "+" CH1通道接口 马达接口”M+” [2] CH3 [15] Motor port "-" CH3通道接口 马达接口”M-” [3] CH4 [16] Stickers CH4通道接口 贴纸 [4] Left-turn light port [17] LED 左转灯接口 LED指示灯 [5] Head light port [18] Left-turn light port 前灯接口...
  • Page 9 Binding 对码 The receiver automatically enters the binding state once it is powered on. Press the BIND Key to turn on the transmitter and allow it to enter its binding state. Here, G.LED flashes quickly, and operator releases the BIND Key. 1.
  • Page 10 1.连接相关设备： 连接前请确认电调开关处于关闭（OFF）状态，将电机与电调的M+/M-相连接，舵机接到电调3Pin 排针接口上(“-”“+”"S”相对 应），电池与电调输入正负极对应相接。 2.正常开机，识别油门中点： 上面第一步相关设备连接好后，先打开遥控器，并将遥控器油门扳机置于中点位置（自然状态）。最 后一步打开电调开关，接收机重 新上电自动识别电池类型后方可运行。注意：a.电调开机后必须等到自检完成后方可运行（大约3秒），否则可能无法正常动作；b.若 开机后无动力输出，请查看遥控器 油门微调是否置于“0”位置，接收机重启可自动识别微调油门中点；c.若运行时发现电机方向不对, 将电调接电机的两根线互换位置即可；d.为了一切正常，请养成先打开遥控器最后打开电调开关以及先关闭电调开关最后关闭遥控器 的习惯。 注：关于电池类型、拖刹力度和运行模式的设置详见配套遥控器说明书相关章节。 Failsafe 失控保护 This function is used to protect the safety of the model and the operator when the receiver cannot normally receive the signal from the transmitter and is out of control. The receiver defaults that the throttle channel is fixed to be out of control and enters the brake state.
  • Page 11 The Dial Switch on the transmitter is used to set ESC parameters, that is, the Dial Switch is located at different positions and the corresponding parameter values are different. 发射机上的拨码开关用于设置电调，即拨码开关位于不同位置对应功能不同。 Setting Method 设置方法 There are three parameters can be set for the ESC, which are "Running mode", "Battery type", "Drag brake", There are slide switches numbered 1 2 3 4 on the radio panel .
  • Page 12 1.运行模式(Running Mode) 前进后退带刹车(FWD/REV/BRK)：此模式采用的是“双击式倒车"，即油门扳机在第一次从中点区域推至反向区域时，电机只是刹车 不会产生倒车动作；当油门扳机回到中点区域并第二次推至反向区域时则产生倒车动作。此模式适用于一般车型。 直接正反转(FWD/REV)：此模式采用“单击式”倒车方式，即油门扳机从中点区域推至反向区域时电机立即产生倒车动作，该模式一 般用于攀爬车等特种车辆。 设置该参数的方法： 当遥控器面板上编号为1拨码开关位于下侧，表示运行模式设置为前进后退带刹车(FWD/REV/BRK)。当遥控器面板上编号为1拨码开 关位于上侧，表示运行模式设置为直接正反转(FWD/REV)。 2.电池类型(Battery Type) 有锂电和镍氢两种选择，根据实际使用情况设置即可。设置该参数的方法： 当遥控器面板上编号为2的拨码开关位于下侧时，表示电池类型设置为锂电池。 当遥控器面板上编号为2的拨码开关位于上侧时，表示电池类型设置为镍氢。 3.拖刹力度(Drag Brake) 拖刹是指当油门扳机从正向区域或反向区域转入中点区域内时，对电机产生一定的刹车力，这样做可以模拟有刷电机的碳刷对电机转 子的阻力，适合减速入弯及攀爬车应用。 设置该参数的方法： 当遥控器面板上编号为3的拨码开关位于下侧，编号为4的拨码开关也位于下侧，表示拖刹力度为0%。 当遥控器面板上编号为3的拨码开关位于下侧，编号为4的拨码开关位于上侧时，表示拖刹力度为50%。 当遥控器面板上编号为3的拨码开关位于上侧，编号为4的拨码开关位于下侧时，表示拖刹力度为75%。 当遥控器面板上编号为3的拨码开关位于上侧，编号为4的拨码开关位于上侧时，表示拖刹力度为100%。 Lighting function 灯光功能 Times for Pressing 按次数 Button Light Position Function Power on is off by default Control Mod Remarks 按钮...
  • Page 13 Danger Do not drop the battery or expose to strong shocks or vibrations. 危险 如果不按照说明方法操作，可能导致操作者或他人遭受较大伤害。 Danger Always store the battery in a cool, dry place. 危险 请将电池存放在干燥阴凉的环境中。 Danger Do not use the battery if damaged. 危险 如果电池损坏，请立即停止使用。 Battery Type: AAA Battery Installation: 1.Open the battery compartment cover.
  • Page 14 油门扳机位置 Throttle trigger position Neutral point Top point of forward direction Top point of backward direction 前进方向的顶端 后退方向的顶端 中位 VEHICLE SETUP 车辆设置 Connecting the battery 连接电池 Step 1: Separate the car shell, the two buckles in the front of the car shell are opened inward, and the two buckles at the rear of the car shell are opened inward.
  • Page 15 Battery Precautions 电池注意事项 • Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery chemis- try. Use ONLY charger designed for LiPo battery. • Do not leave LiPo battery unattended during charging. •...

  • Page 16: Operating The Vehicle

    车辆操作 OPERATING THE VEHICLE Step 1: turn on the transmitter, the headlamp of the transmitter will flash and enter the frequency matching mode. Step 2: turn on the receiver switch, the headlight will flash and enter the frequency matching mode. Step 3: when the transmitter and receiver are successful in frequency up, the front lights of the transmitter will be on for a long time, and the front lights of the vehicle will be off.
  • Page 17 THE FIRST GENERATION MONSTER TRUCK THE FIRST GENERATION MONSTER TRUCK Spare parts list 配件列表 赛钢差速器 后轮轴 C3024 Pom differential set C3022 Rear wheel shaft set 粉碎者轮胎 狗骨 C3044 Max smasher tire C3023 Front dog bone set 防撞 传动轴 B C3045 Bumper set C3025 Cvd axle set b...
  • Page 18 CN:车架成品组 EN:Finished Frame Sets C3044 C3046 C3074 C3016 C3028 C3028 C3077 C3029...
  • Page 19 C3001 C3075 C3078 C3034...
  • Page 20 CN:车轮 EN:Wheels C3033 C3050 C3050 C3044 C3050 C3050...
  • Page 21 CN:车架组 EN:Frame Sets C3033 C3036 C3029 C3081 C3012 C3001 C1389 C2130 C3033 C3028 C3033 C3078 C3028 C3077 C3035...
  • Page 22 CN:前桥总成 EN:Front axle C3031 C3021 C3039 C3033 C3015 C3019 C3033 C3019 C3019 C3020 C3039 C3016 C3027 C3018 C3077...
  • Page 23 C3063 C3018 C3061 C3061 C3020 C3019 C3015 C3019 C3019 C3015 C3039 C3033 C3021 C3031...
  • Page 24 CN:后桥总成 EN:Rear axle C3031 C3021 C3033 C3019 C3015 C3022 C3039 C3019 C3015 C3061 C3063 C3018...
  • Page 25 C3078 C3033 C3018 C3022 C3015 C3019 C3033 C3039 C3019 C3021 C3031...
  • Page 26 EN:Two speed transmission Installation CN:两档变速箱总成 C3012 C3025 C3032 C3013 C3014 C3015 C3014 C3013 C3015 C3015 C3014 C3025 C3014 C3033...
  • Page 27 CN:车壳成品组 EN:Finished Hard Body Set C3053 C3049 C3049 C3047/C3057/C3058 C3051 C3033 C3048 C3045 C3049 C3045 C3045 C3033 C3045 C3033...
  • Page 28 EN: Vehicle Complete set CN:整车组 MADE IN CHINA...
